TUBE REPLACEMENT – SINGLE HEAD PUMPS

continued

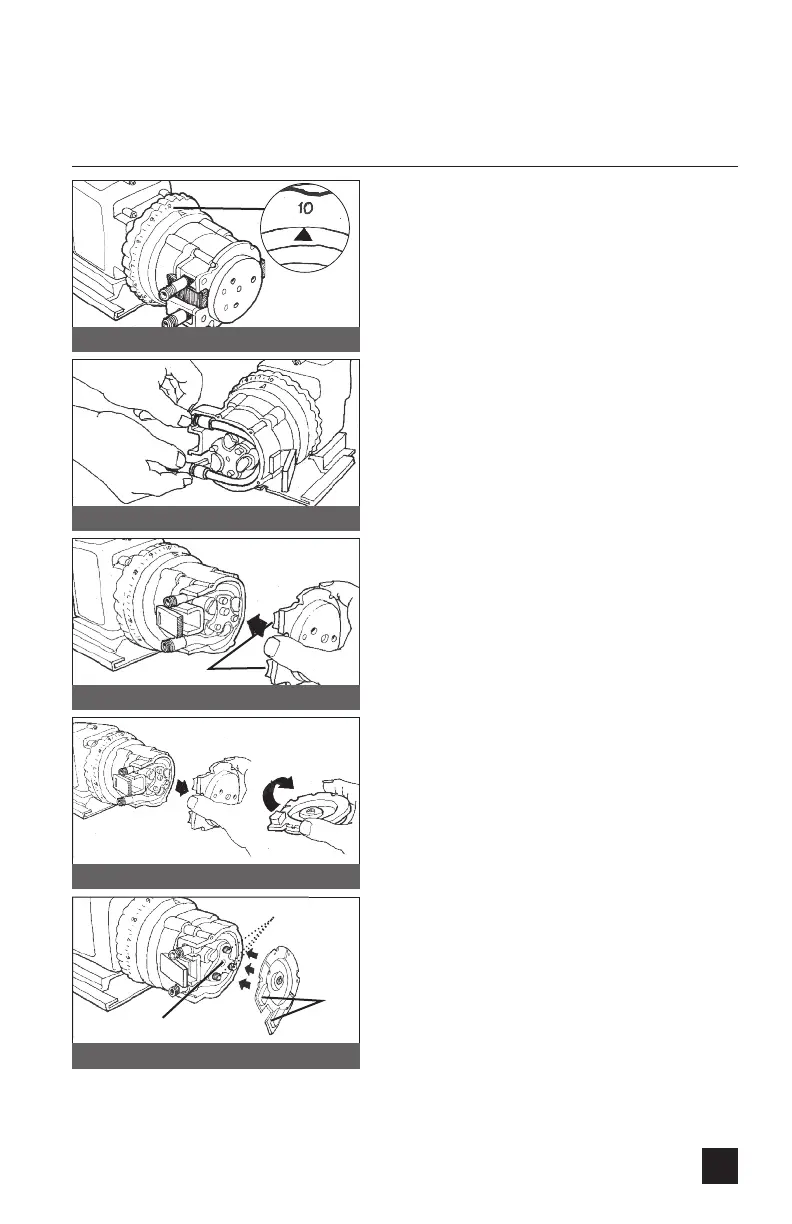

1. Ensure the power to the pump is off and the

power cord is unplugged. On the adjustable

model, ensure that the feed rate control is

set to 10. Illustration H

2. Place the new tube in the pump head and

use your fingers to center it on the rollers.

Illustration I

3. Place the tube housing cover (feet first) on

the tube housing, affix the front of the

latches to the cover lip and then press the

latches back to secure. Be sure the cover is

seated with the sleeve bearing on the shaft

and is flush with the housing before

latching. Illustration J

4. With the cover latched, plug the pump in

and turn the power on. Allow the pump to

run the roller assembly in its collapsed

position for approximately two minutes to

relax the tube.

5. Turn the pump off and unplug the

power cord.

6. Remove the tube housing cover and flip to

use as a tool in the next step. Illustration K

7. Align the center of the inverted cover with

the center of the roller assembly so that the

three holes on the face of the cover align

with the three knurled lugs on the roller

assembly. Position the cover feet near the

tube fittings. Illustration L
