TUBE REPLACEMENT – SINGLE HEAD PUMPS
continued
INSTALL THE TUBE/EXPAND THE ROLLER ASSEMBLY continued
9. Apply a small amount of AquaShield
™
to the
cover bushing ONLY. DO NOT lubricate the pump
tube. Illustration O
10. Place the tube housing cover (feet first) on the
tube housing, affix the front of the latches to the
cover lip and then press the latches back to
secure. Be sure the cover is seated with the
sleeve bearing on the shaft and is flush with the
housing, before latching. Illustration P
More on next page

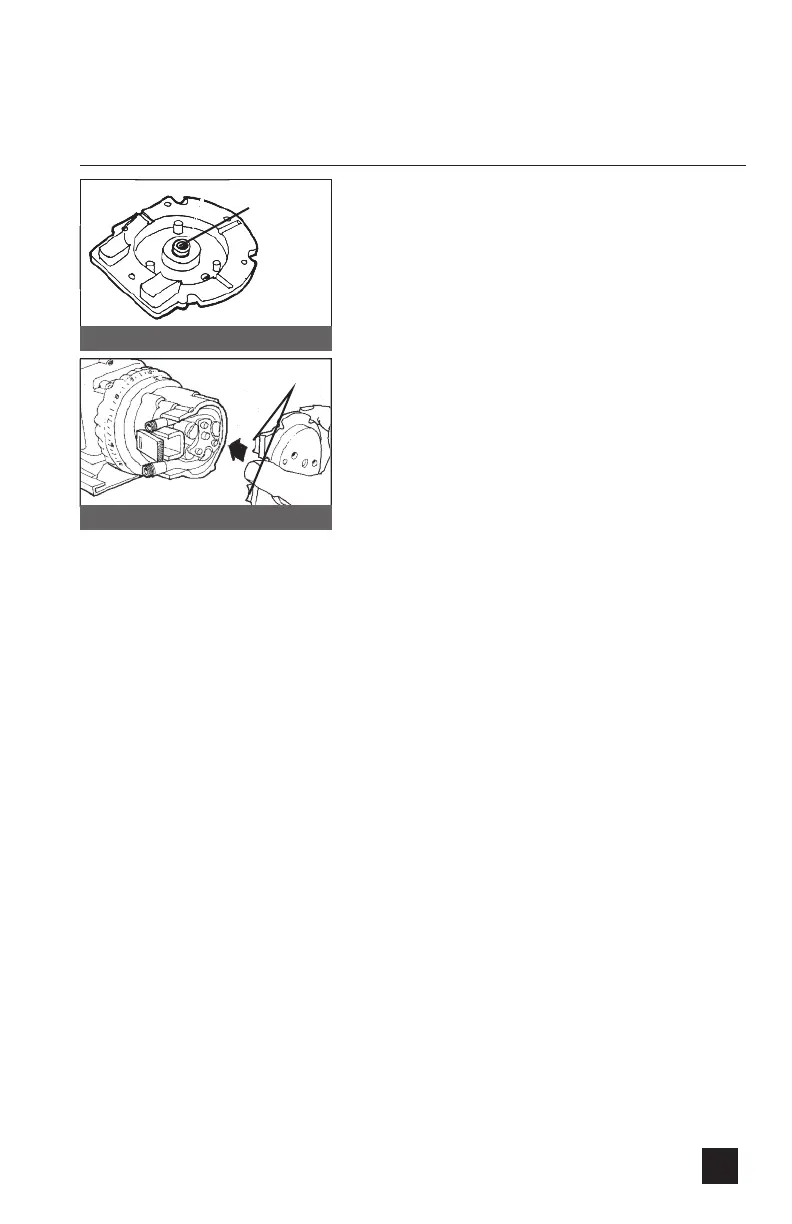

O Apply Aquashield
™
to cover bushing
P Install cover feet first
Cover Bushing
Cover Feet
To Next Page
