STEPCRAFT D Series - Layout Recommendation

42
EN
4�4 Layout Recommendation

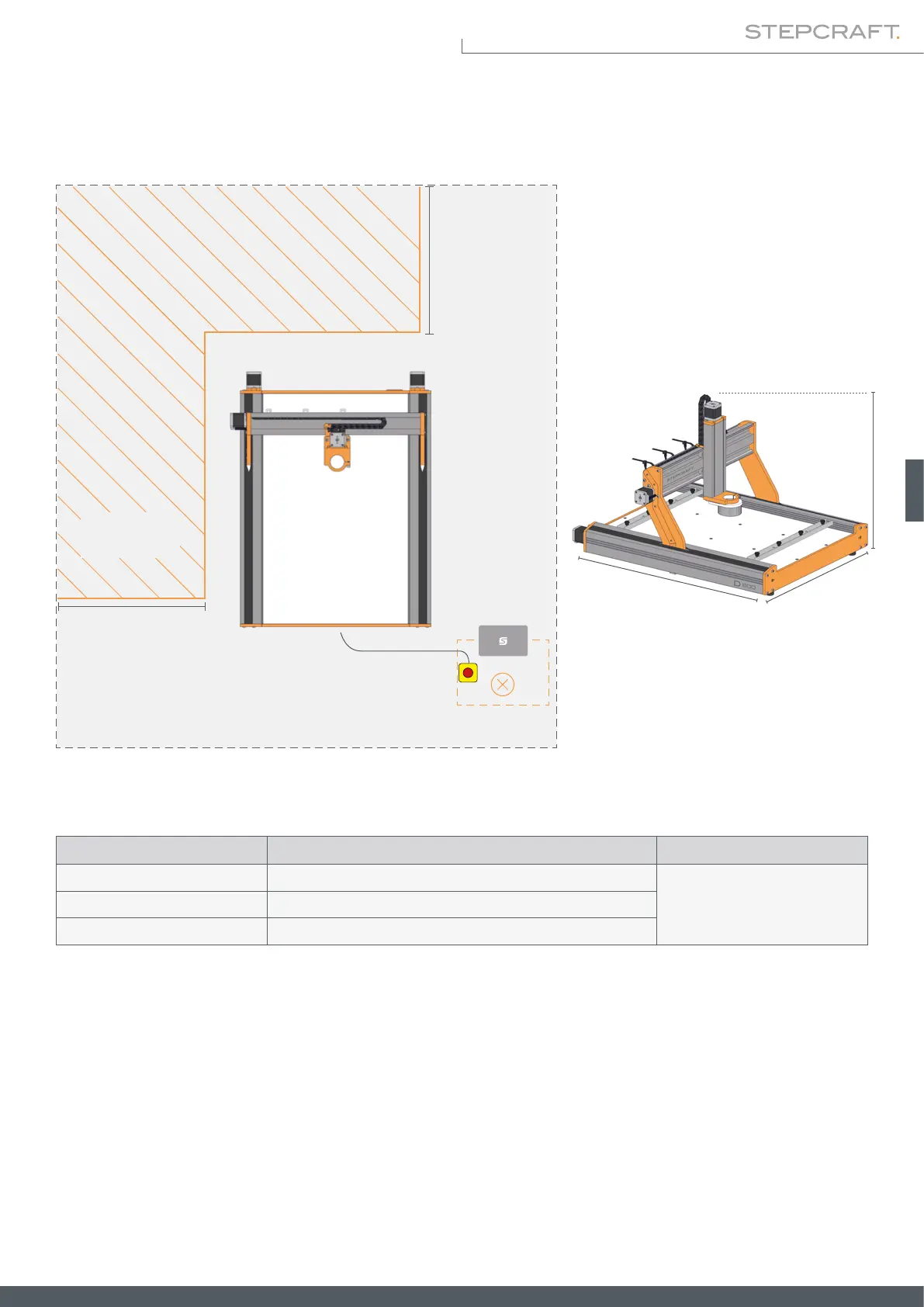

Operating area
0,5 m
Maintenance-/
set-up area
0,5 m
Emergency stop switch
L
B
H
Machine Measurements (LxWxH) Maintenance / Set-up
STEPCRAFT D.420 600 x 443 x 546 mm
500 x 500 mmSTEPCRAFT D.600 776 x 591 x 546 mm
STEPCRAFT D.840 1021 x 756 x 546 mm
