9�3 Spare Parts
All parts of the machine and control can be purchased individually as spare parts. Please contact us directly about this.
You can nd our contact details on the cover sheet or in chapter „10 Contact“.

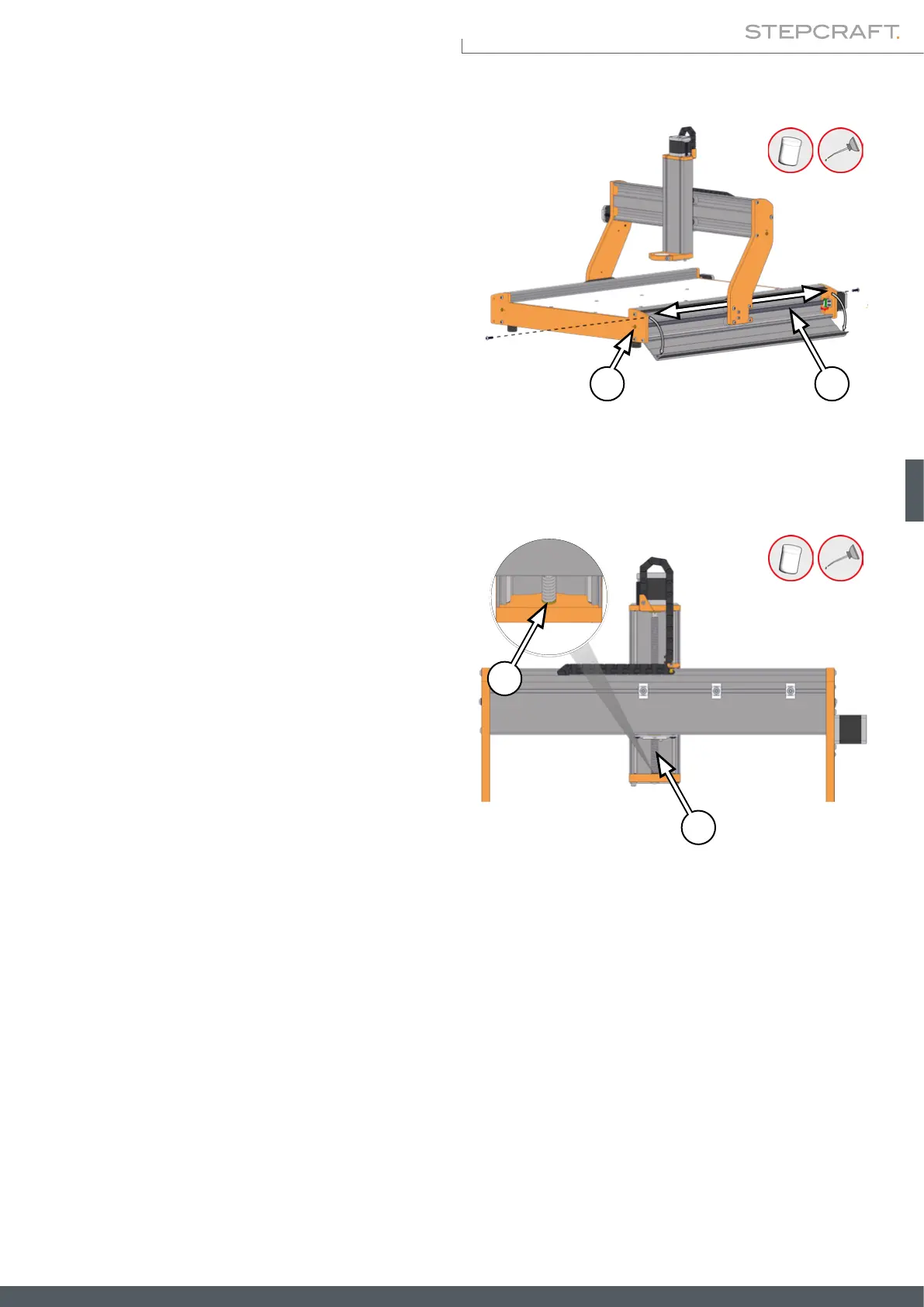

9�2�3 Y-Axis
Move the Y-axis all the way to the front. To access the
Y-axis lead screws (4), remove the outer, upper screw from
the front and rear panel each. Now you can swing down
the linear cover.
Use a cloth to remove any dirt from the Y-thread spindle
(4). Take care that the cables of the stepper motor and the
end switch remain undamaged!
Then use a brush or cloth to evenly distribute grease on the threaded spindle.
Now move the Y-axis to the rearmost position and repeat the cleaning and lubrication procedure accordingly.
Finally, add a small amount of oil to the ange sleeve (5) at the front and rear.
Screw the removed screws back on and repeat the process analogously on the other side of the machine.
45
9�2�4 Z-Axis
Move the Z-axis all the way up. Use a cloth to remove any
dirt from the Z-axis lead screws (6). Then use a brush or
cloth to evenly distribute grease on the threaded spindle.
Move the Z-axis to the lowest position and repeat the pre-
vious procedure accordingly.
Finally, add a small amount of oil to the gap between the
ange sleeve (7) and the lead screw (6).
6
7
