5. HP4750 EXAMPLE SYSTEM CONFIGURATION

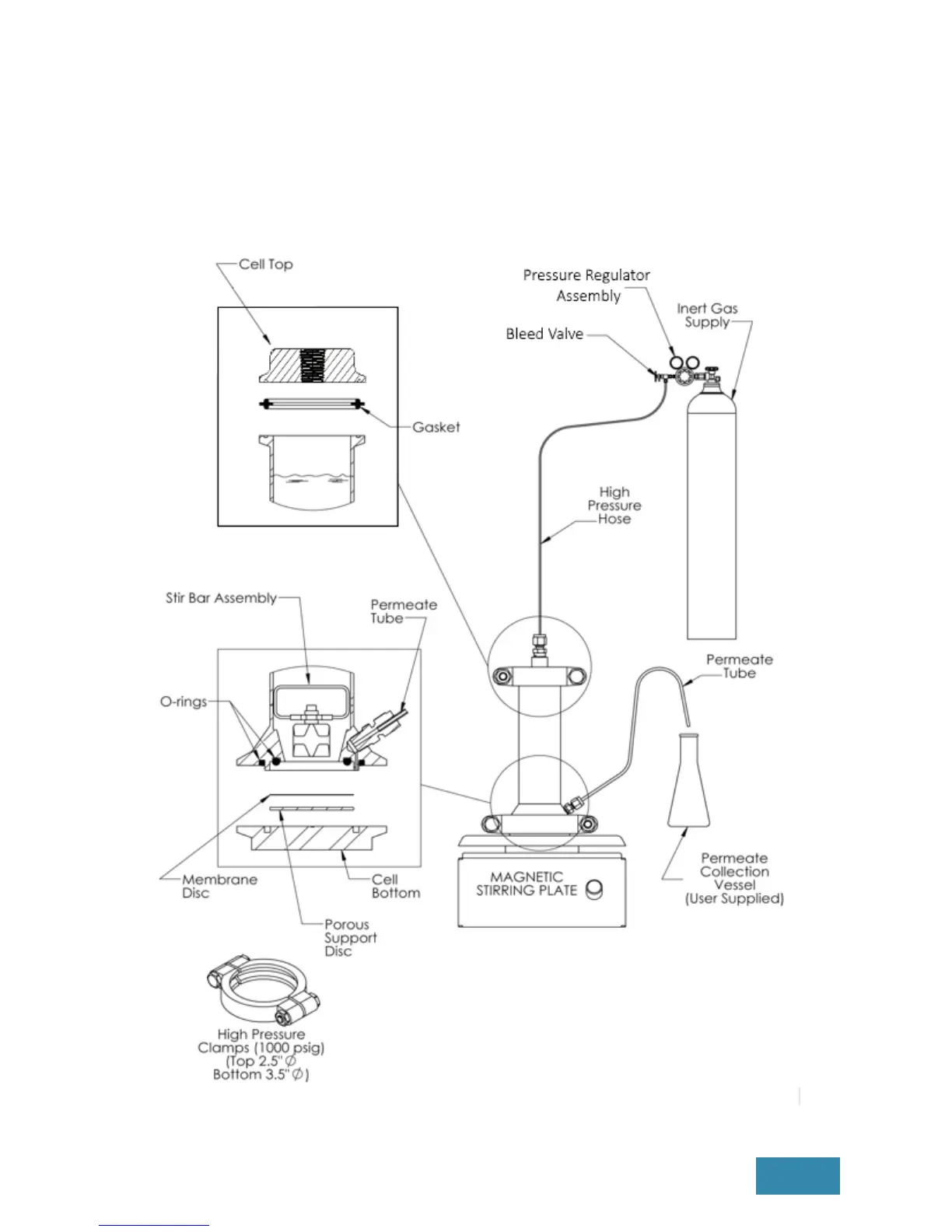

Figure 3 illustrates the typical configuration of a standard HP4750 Stirred Cell System. The
drawing shows the three major components of the system: the Cell Body with removable
top and bottom, Stir Bar Assembly, and Standard Coupling.
Figure 3: HP4750 Stirred Cell System Schematic
