2. BEFORE ASSEMBLY
HP4750 Cell Manual | Sterlitech Corporation
2
1. Stainless steel cell body
2. Cell Top
3. Cell Bottom
4. Cell Top Coupling
5. Cell Bottom Coupling
6. Porous Stainless Steel Membrane Support Disk
7. 2 O-rings
8. Top Gasket
9. Permeate Tube
10. Stir Bar Assembly
11. Stir Bar Retriever
Verify that the stirred cell was shipped complete, intact, and undamaged. The complete
set of stirred cell parts is found in Figure 1 below.

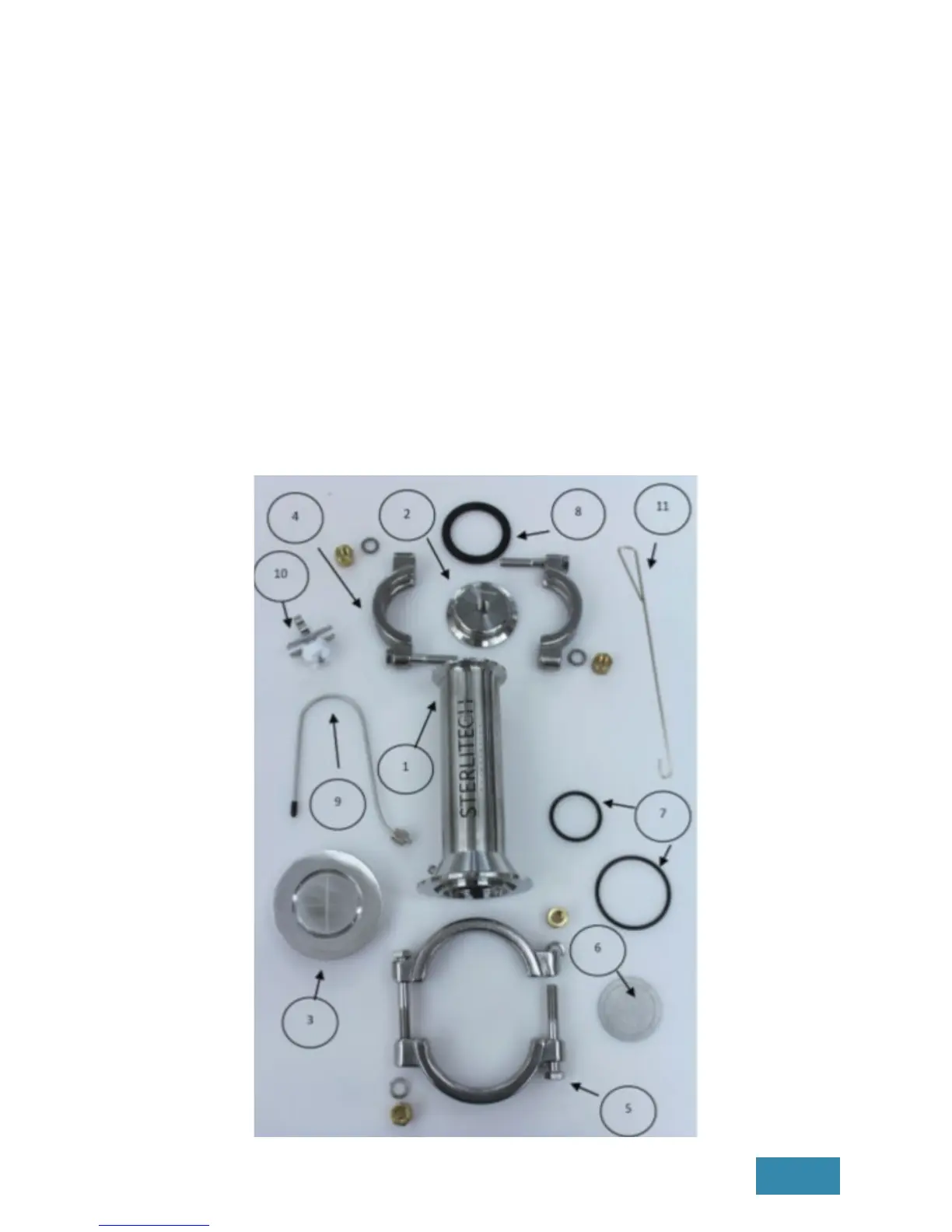

Figure 1: HP4750 Components
