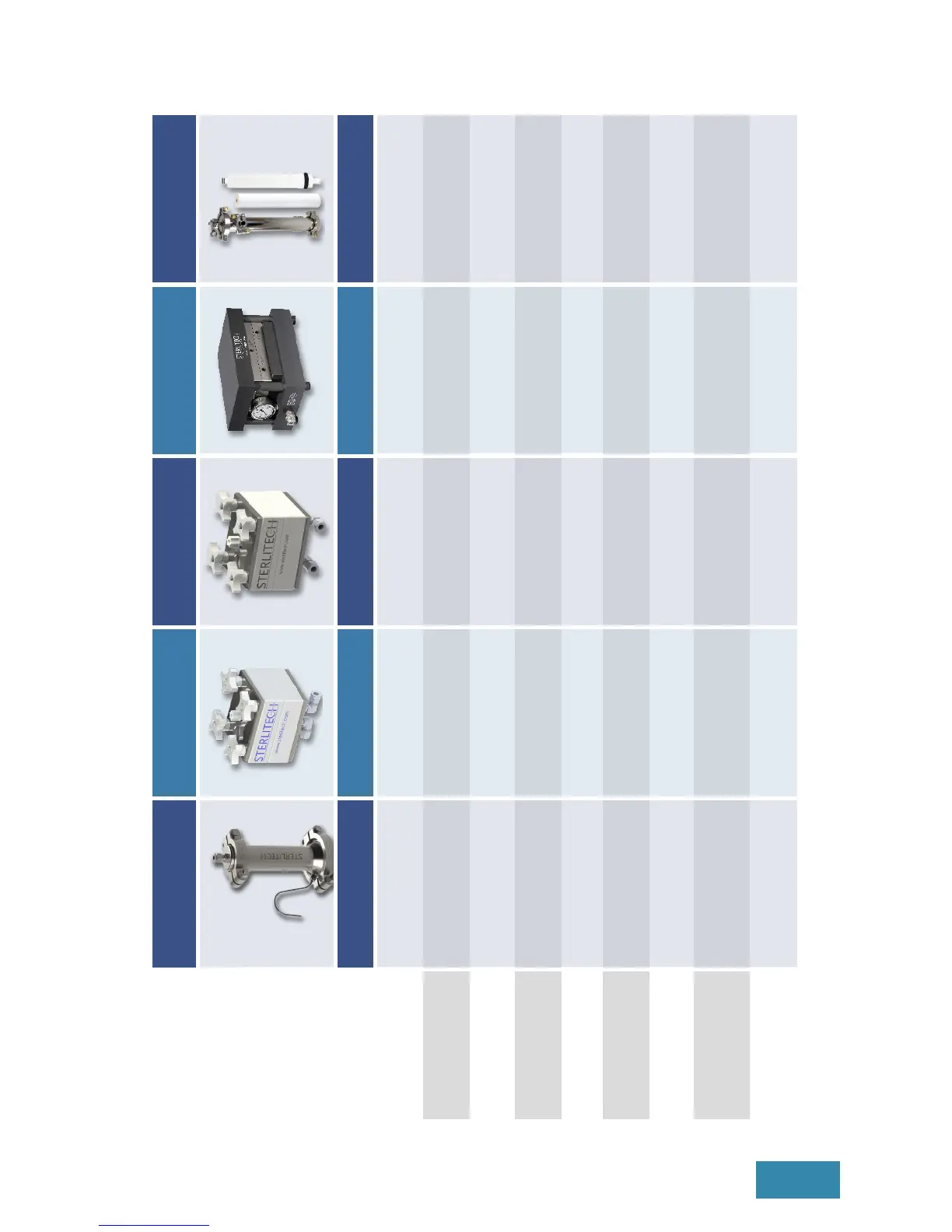

APPENDIX 5: STERLITECH BENCH SCALE FILTRATION PRODUCTS
Discoverer Innovator Explorer Developer Investigator
Filter Holder
HP4750(X) CF016 CF 042 Sepa 1812
Membrane Active
Area
14.6 cm
2
(2.26 in
2
) 20.6 cm
2
(3.2 in
2
) 42 cm
2
(6.5 in
2
) 140 cm
2
(24 in
2
) 0.27-0.46 m
2
(3-5 ft
2
)
Typical Permeate
Flux
30-300 LMH
(17.6-176 GFD)
30-300 LMH
(17.6-176 GFD)
30-300 LMH
(17.6-176 GFD)
30-300 LMH
(17.6-176 GFD)
30-300 LMH
(17.6-176 GFD)
Typical Permeate
Flow Rate
(per Cell)
1.5-15 mL/min 1-10 mL/min 2-20 mL/min 7-70 mL/min 350-2,300 mL/min
System Capacity
0.7-7 L/day
(0.2-2 GPD)
1.5-15 L/day
(0.4-4 GPD)
3-30 L/day
(0.5-5 GPD)
10-100 L/day
(2.6-26 GPD)
194-1,940 L/day
(51-510 GPD)
Min. Batch Volume
(per Cell)
300 mL 3.7 L (1 gal) 3.7 L (1 gal) 3.7 L (1 gal) 15 L (4 gal)
Max. Pump
Capacity
N/A
6.8 LPM (76 bar)
1.8 GPM (1,100 psi)
6.8 LPM (76 bar)
1.8 GPM (1,100 psi)
6.8 LPM (76 bar)
1.8 GPM (1,100 psi)
6.8-38 LPM (76 bar)
1.8-10 GPM (1,100 psi
)
Cell Material
SS316, Hastelloy
TM
PTFE, Delrin, Acrylic,
SS316, Hastelloy
TM
PTFE, Delrin, Acrylic,
SS316, Hastelloy
TM
Acrylic, SS316, Hastelloy
TM
SS316
Max. Operating
Pressure
HP4750: 69 bar (1,000 psi) HP4750X: 172 bar (2,500 psi)
PTFE/Acrylic: 27.6 bar (400 psi)
Delrin/SS316/Hastelloy
TM
:
69 bar (1,000 psi)
PTFE/Acrylic: 27.6 bar (400 psi) Delrin/SS316/Hastelloy
TM
:
69 bar (1,000 psi)
Acrylic: 27.6 bar (400 psi)
SS316/H astelloy
TM
: 69 bar
(1,000 psi)
41.4 bar (600 psi)
Filtration Mode(s)
Dead-End Stirred Cell Cross Flow, Forward Osmosis Cross Flow, Forward Osmosis Cross Flow, Forward Osmosis Cross Flow
