273

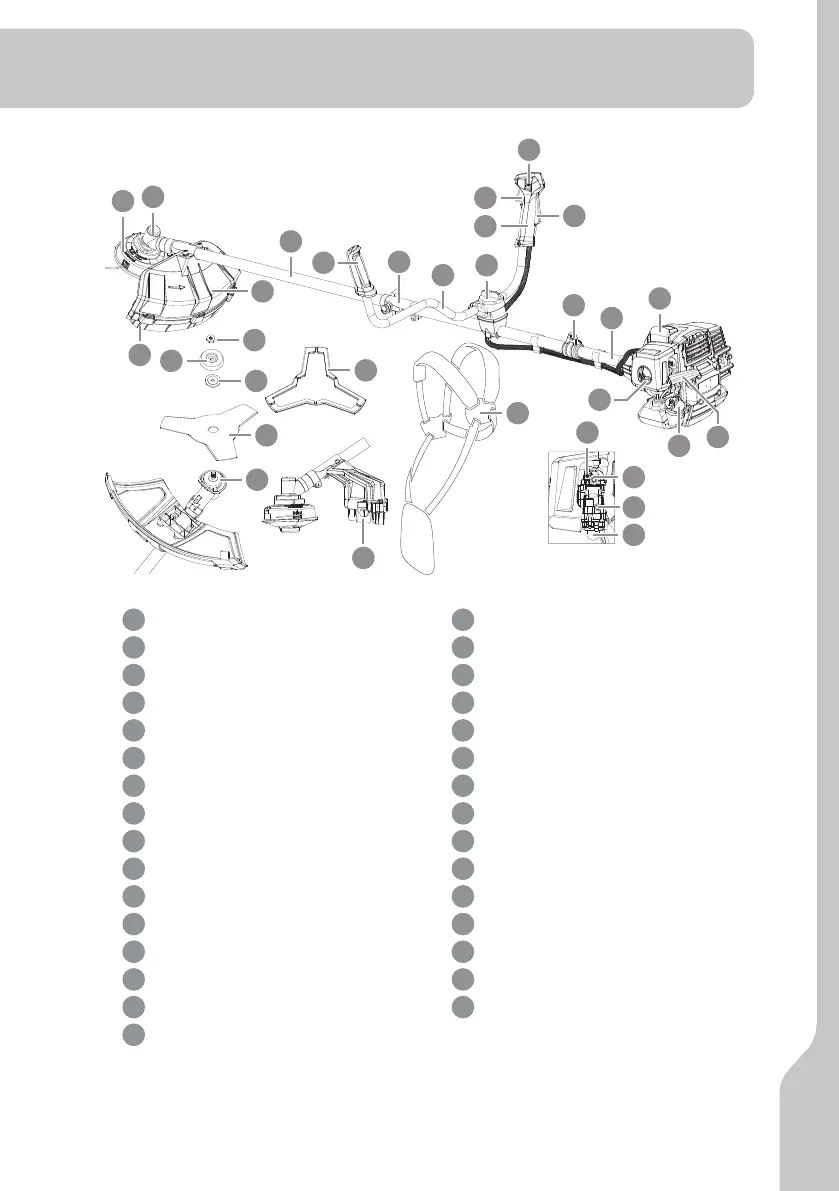

3. DESCRIPTION
EN
1
Trimmer head
2
Gear box
3
Extended guard
4
Cutting attachment guard
5
Front drive shaft tube
6
Left handle
7
Connector
8
Handle bar
9
Lock screw
10
Right handle
11
Throttle trigger
12
Switch
13
Throttle trigger lockout
14
Suspension point
15
Rear drive shaft tube
16
Spark plug cover
17
Starter handle
18
Fuel tank cap
19
Lock knob
20
Idle screw
21
Start-aid knob
22
Fuel/air mixing screw
23
Primer bulb
24
Harness
25
Blade transport cover
26
Locking nut
27
Bottom protecting cap
28
Bottom clamping plate
29
Blade
30
Top clamping plate
31
Line-limiting device
1
2
4
5
13
11
12
10
9
14
16
17
18
21
20
22
23
19
24
25
26
28
27
29
30
6
31
3
7
15
8
