STERWINS PBC2-33B-AB.2 Legal And Safety Instructions

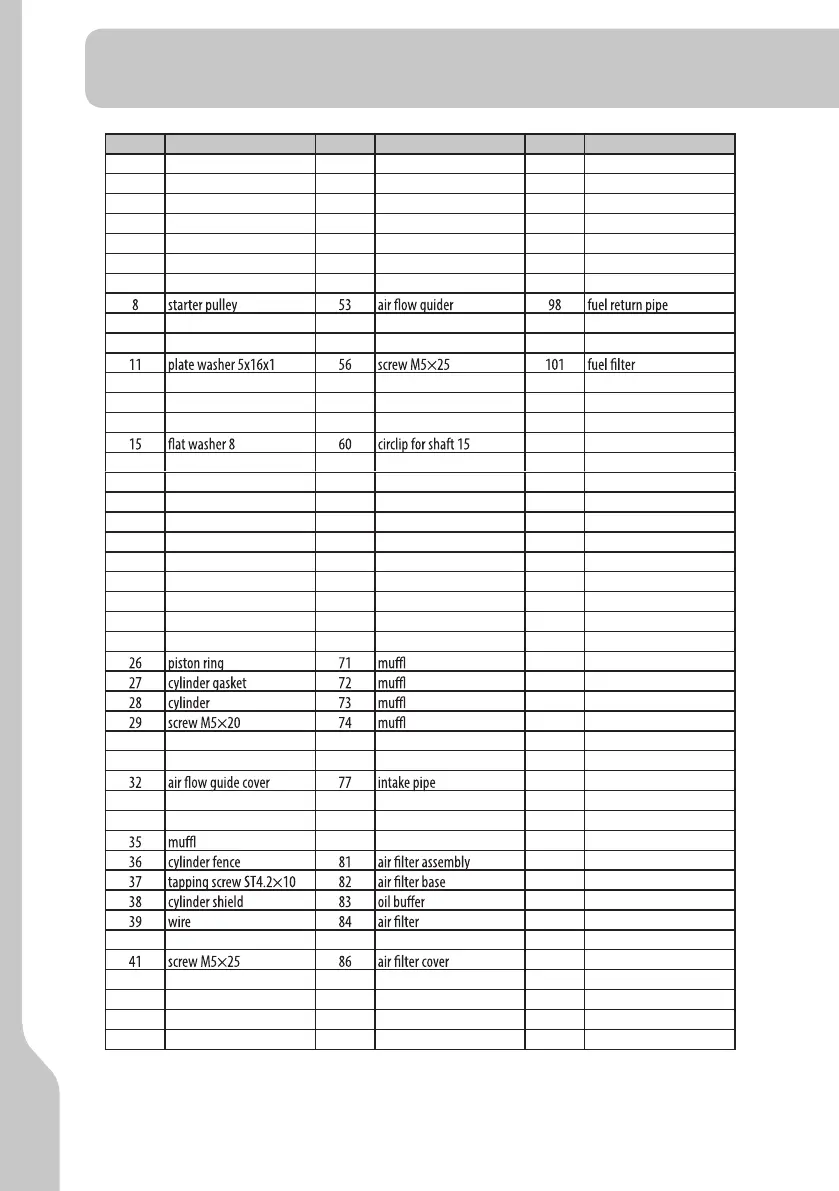

8.EXPLODED VIEW WITH PARTS LIST (ENGINE UNIT)
FOR PBC2-33B-AB.2
278
EN
Part No. Description Part No. Description Part No. Description
1 screw M5x25 46 oil-seal 15×30×7 91 heat isolation bush
2 start grip 47 magneto 92 fuel tank
3 eyelet 48
nut M8
93 fuel tank housing
4 starter cover 49 plate washer 8×16×1.5 94 screw M5×30
5 starter assembly 50 clutch assembly 95 vent valve
6 starter rope 51 washer 10 96 vent tube
7 coil spring 52 clutch bolt 97 fuel tube
9 torsion spring 54 pin 5×10 99 fuel tube root
10 ratchet wheel 55 magneto cover 100 fuel tube circlip
12 tapping screw ST4.8x19 57 clutch drum
13 nut M8 58 circlip for hole 35
14 start reel 59 bearing 6202
16 oil-seal 12×22×7 61 clutch drum housing
17 right crankcase 62 screw M6×20
18 crankcase gasket 63 throttle cable clamp
19 bearing 6202 64 clutch cover assembly
20 crankshaft assembly 65 absorber
21 semi-circle key 3×3.5×10 66 screw M6×25
22
bearing 10x13x16
67 screw M5×12
23 piston pin circlip 68 circlip for hole 45
24 piston pin 69 screw M6×55
25 piston 70 screw M5×12
er cover
er
er heat isolation plate
er gasket
30 spark plug 75 screw M5×12
31 tapping screw ST4.2×10 76 intake pipe gasket
33 screw M4×12 78 screw M5×25
34 tapping screw ST4.2×10 79 carburettor gasket
er fence 80 carburettor
40 spark plug cover 85 screw M5×50
42 ignition 87 lock knob
43 pin 5×10 88 fuel tank cap
44 left crank case 89 sealing gasket
45 screw M5×30 90 retainer
