12

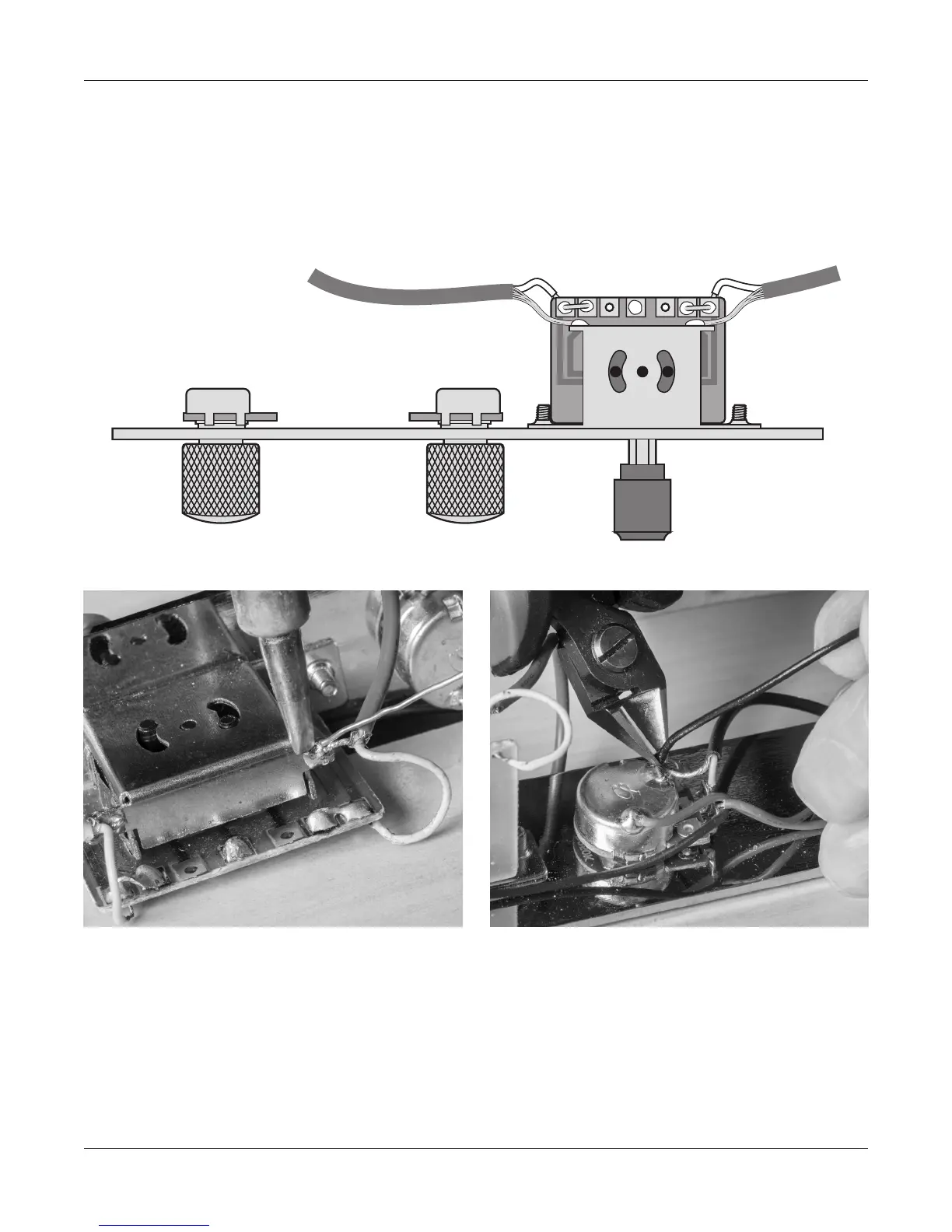

Solder the bare ground leads of each pickup to the lugs on
the switch housing.
Solder the pickup leads to the switch
With the mechanism of the switch facing you, refer to the
drawing below. Lugs #3 and #5 are not used. The center lug,
#4, is already soldered to the volume pot.
Strip the white leads of the neck and bridge pickups to
expose 3/16" of bare wire. These are the hot leads. The bare
wires are the ground leads.
Note that there is one lead that is not necessary for this
circuit. Cut this wire off at the volume pot.
1 2 3 54 6 7
Feed the hot lead from the neck pickup through the back
of lug #1 and jump it to lug #2.
Feed the hot lead through the back of lug #7 and jump it
to lug #6.
Solder these connections.
