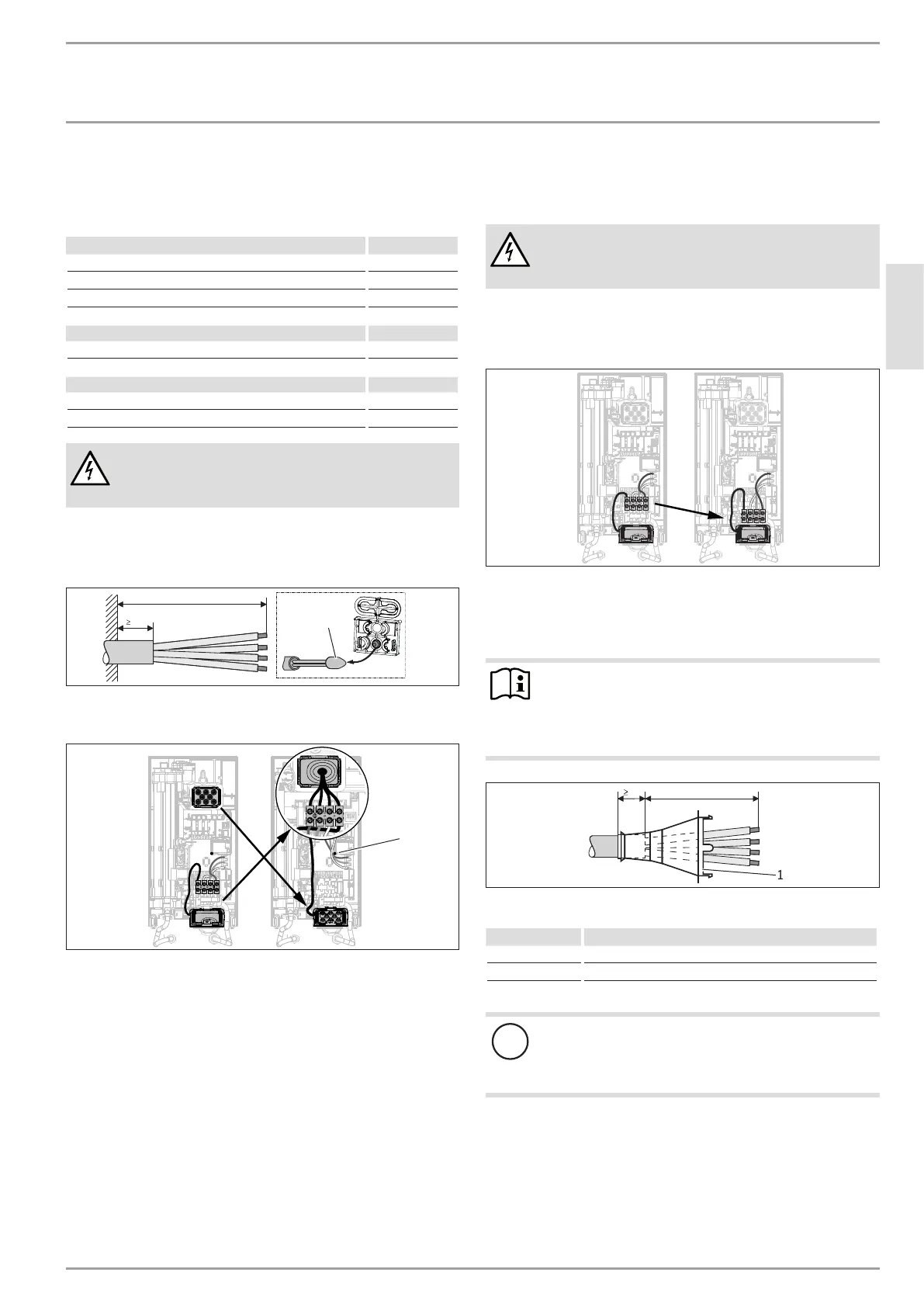

13. Alternative installation methods
Overview of the alternative types of installation
Electrical connection IP rating
On unfinished walls, connected from above IP25
Unfinished walls, from below, short power cable IP25
Installation on finished walls IP 24
Water connection IP rating
Installation on finished walls IP 24
Other IP rating
Installation with offset tiles IP25
Pivoting appliance cover IP25
WARNING Electrocution
Before any work on the appliance, disconnect all poles
from the power supply.
13.1 Electrical connection from above on unfinished
walls
30
D0000076507
1
1 Cable entry installation aid
Prepare the power cable.
D0000053282
1
1 Cable routing
Reposition the mains terminal from the bottom to the top. To
do this, undo the fixing screw. Turn the mains terminal with
connecting cables 180° clockwise. Route the cable around
the cable guide when doing so. Secure the mains terminal in
place.
Replace the cable grommets.
Install the cable grommet downwards from above.
Pull the cable grommet over the cable sheath of the power
cable.
Install the appliance on the threaded studs of the wall
mounting bracket.
Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
Pull the cable grommets into the back panel, until both lock-
ing tabs engage.
Connect the power cable to the mains terminal.
WARNING Electrocution
The connecting wires must not protrude beyond the level
of the mains terminal.
13.2 Electrical connection on unfinished walls with
short power cable
D0000060387
Reposition the mains terminal further downwards. To do this,
undo the fixing screw. Secure the mains terminal in place.
13.3 Electrical connection on finished walls
Note
This type of connection changes the IP rating of the ap-
pliance.
Change the type plate. Cross out "IP25" and mark
the box "IP24". Use a ballpoint pen to do this.
D0000076506
1
1 Cable grommet
Dimension A Electrical connection on finished walls
160 Positioned in lower section of appliance
110 Positioned in upper section of appliance
Prepare the power cable. Fit the cable grommet.
!
Material losses
If you break out the wrong knock-out in the back panel/
appliance cover by mistake, you must use a new back
panel/appliance cover.
Cleanly cut and break out the required cable entries from the
back panel and appliance cover (for the positions, see chap-
ter "Specification/ Dimensions and connections"). Deburr any
sharp edges with a file.
Route the power cable through the cable grommet.
Connect the power cable to the mains terminal.
