INSTALLATION
Alternative installation methods
ENGLISH
www.stiebel-eltron.com DHB-E LCD | 35
Cut open the lower section of the back panel.
Fit the lower section of the back panel by bending it out at
the sides and guiding it over the pipes.
Insert the connection pieces into the lower section of the
back panel from behind.
Click the lower section of the back panel into place.
Secure the lower back panel section with a screw.

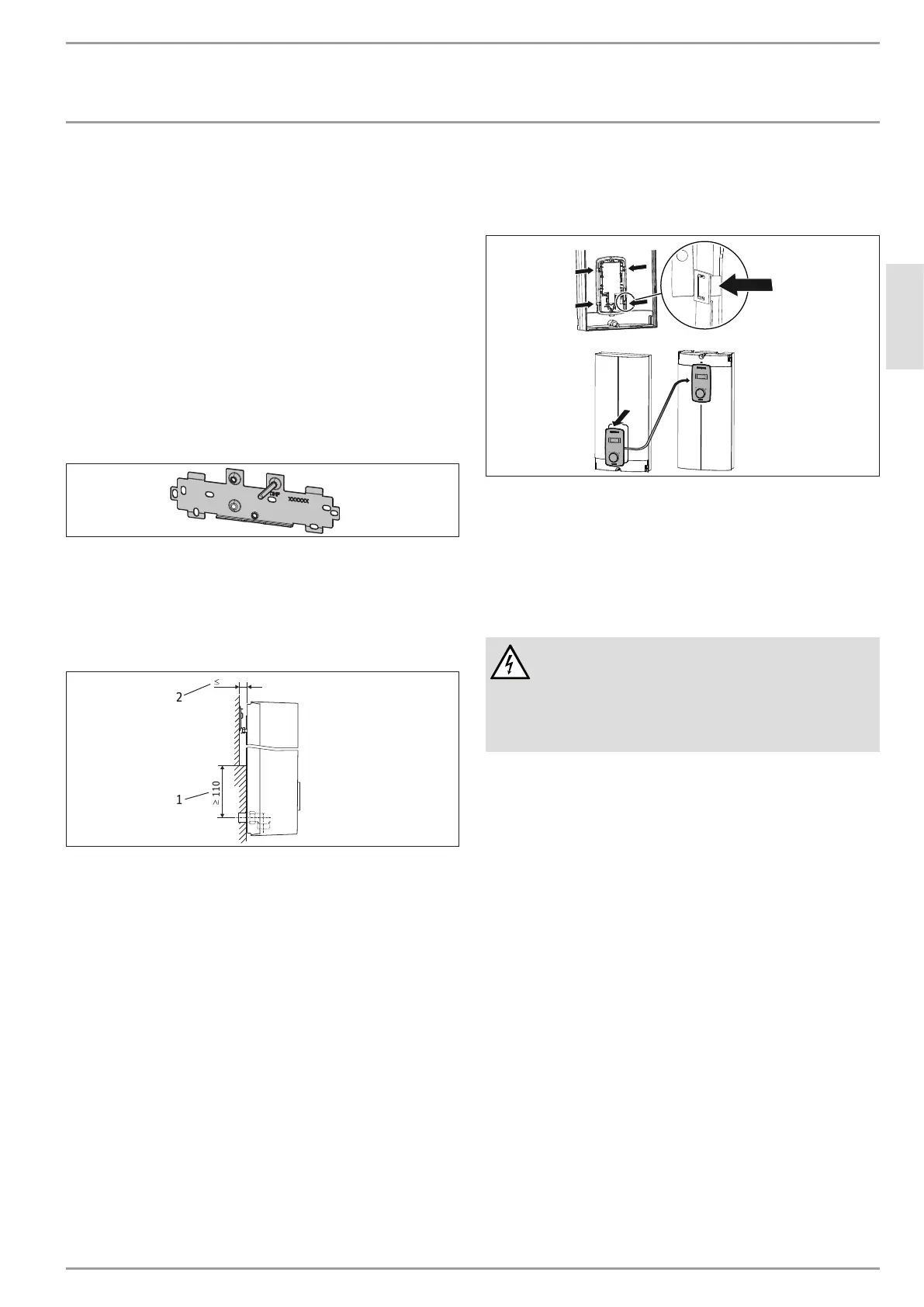

13.9 Wall mounting bracket when replacing
appliance
An existing STIEBELELTRON wall mounting bracket may be used
when replacing appliances (except for DHF instantaneous water
heater), as long as the fixing screw is in the lower right position.
Replacing a DHF instantaneous water heater
26_02_02_0815_
Reposition the fixing screw on the wall mounting bracket (the
securing screw has a self-tapping thread).
Rotate the wall mounting bracket 180° and mount it on the
wall (the DHF logo is then turned towards the reader).
13.10 Installation with offset tiles
26_02_02_1066_
2
1
1 Minimum contact area of the appliance
2 Maximum tile offset
Adjust the wall clearance. Lock the back panel in place using
the fixing toggle (turn 90° clockwise).
13.11 Pivoting appliance cover
The appliance cover should be turned round for undersink in-
stallation.
D0000076838
Remove the programming unit from the appliance cover by
pressing the locking hooks and removing the programming
unit.
Turn the appliance cover (not the appliance) and refit the
programming unit. Push the programming unit home in par-
allel until all locking tabs engage. When engaging the locking
tabs, apply counter pressure by pushing against the appli-
ance cover from the inside.
WARNING Electrocution
All 4locking tabs on the programming unit must click into
place. The locking tabs must be complete and undam-
aged. If the programming unit is not inserted correctly,
protection of users against contact with live components
cannot be ensured.
Insert the connecting cable plug of the programming unit
into the PCB (see chapter "Commissioning/ Initial start-up").
Hook the appliance cover in at the bottom. Pivot the appli-
ance cover up to the back panel.
Secure the appliance cover.
Fit the cover on to the appliance cover.
13.12 Operation with preheated water
You can restrict the maximum inlet temperature by installing a
central thermostatic valve.
