www.stiebel-eltron.com DHE | 77
INSTALLATION
Installation
ENGLISH

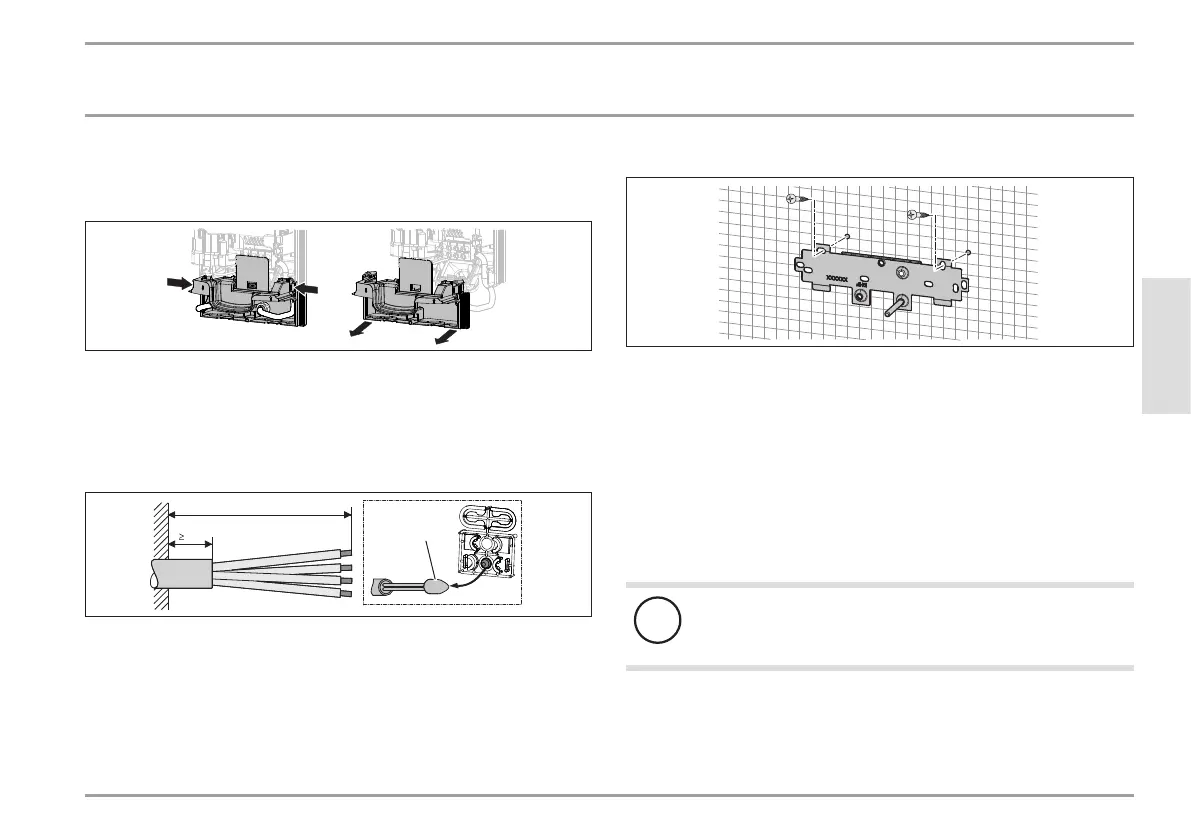

Open the appliance by holding the fascia at the side and pull-
ing forwards away from the appliance cover. Undo the screw.
Pivot open the appliance cover.
D0000053272
Remove the back panel by pressing the two locking tabs and
pulling the lower back panel section forwards.
Preparing the power cable on unfinished walls, for connection
from below
160
30
D0000053273
1
1 Cable entry installation aid
Prepare the power cable.
Fitting the wall mounting bracket
D0000059694
Mark out the holes for drilling using the installation tem-
plate. If the appliance is to be installed on finished walls, also
mark out the fixing hole in the lower section of the template.
Drill the holes and secure the wall mounting bracket at 2
points using suitable fixing materials (screws and rawl plugs
are not part of the standard delivery).
Fit the wall mounting bracket.
Installing the twin nipples
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
