INSTALLATION
Installation alternatives
90 | DHE www.stiebel-eltron.com

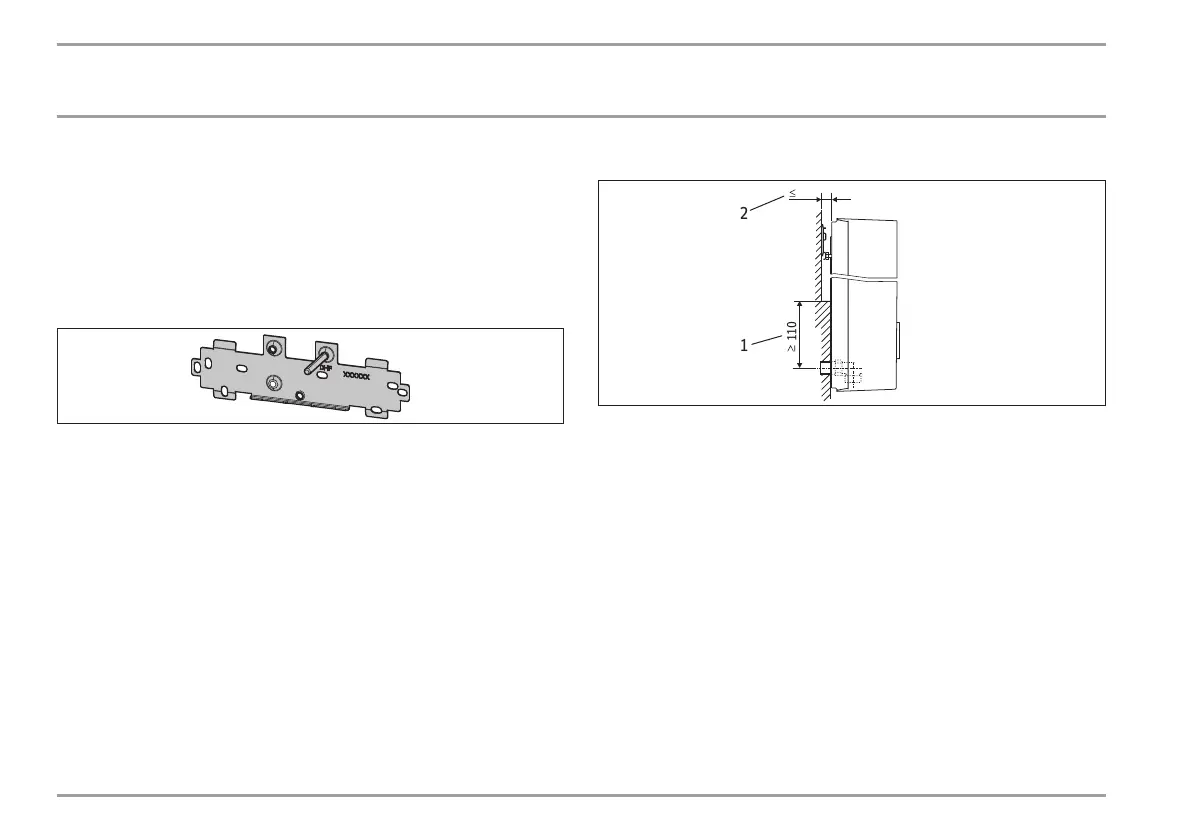

13.9 Wall mounting bracket when replacing an
appliance
An existing STIEBELELTRON wall mounting bracket may be used
when replacing appliances (except the DHF instantaneous water
heater), as long as the fixing screw is in the lower right position.
Replacing a DHF instantaneous water heater
26�02�02�0815�
 Reposition the fixing screw on the wall mounting bracket (the
fixing screw has a self-tapping thread).
 Rotate the wall mounting bracket 180° and mount it on the
wall (the DHF logo is then turned towards you).
13.10 Installation with offset tiles
110
20
26�02�02�1066�
2
1
1 Minimum contact area of the appliance
2 Maximum tile offset
 Adjust the wall clearance. Lock the back panel in place using
the fixing toggle (turn 90° clockwise).

STIEBEL ELTRON DHE 21 Specifications

General

Type	Electronic instantaneous water heater
Rated output	21 kW
Protection class	IP25
Energy efficiency class	A
Temperature range	60 °C
Power supply voltage	400 V
Dimensions	105 mm
