www.stiebel-eltron.com DHE | 89
INSTALLATION
Installation alternatives
ENGLISH
Only if using the "solder fitting" accessory and with precise
adherence to all installation dimensions:
Break the sealing lips out of the cover guides.
Position the back panel guides on the pipes. Push them to-
gether. Then push the guides against the back panel as far
they will go.
Secure the lower back panel section with a screw.
Note
You can use the cover guides with sealing lips to com-
pensate for a slight offset of the connection pipes and/
or if using the "press fitting" accessory. In this case, the
back panel guides are not fitted.

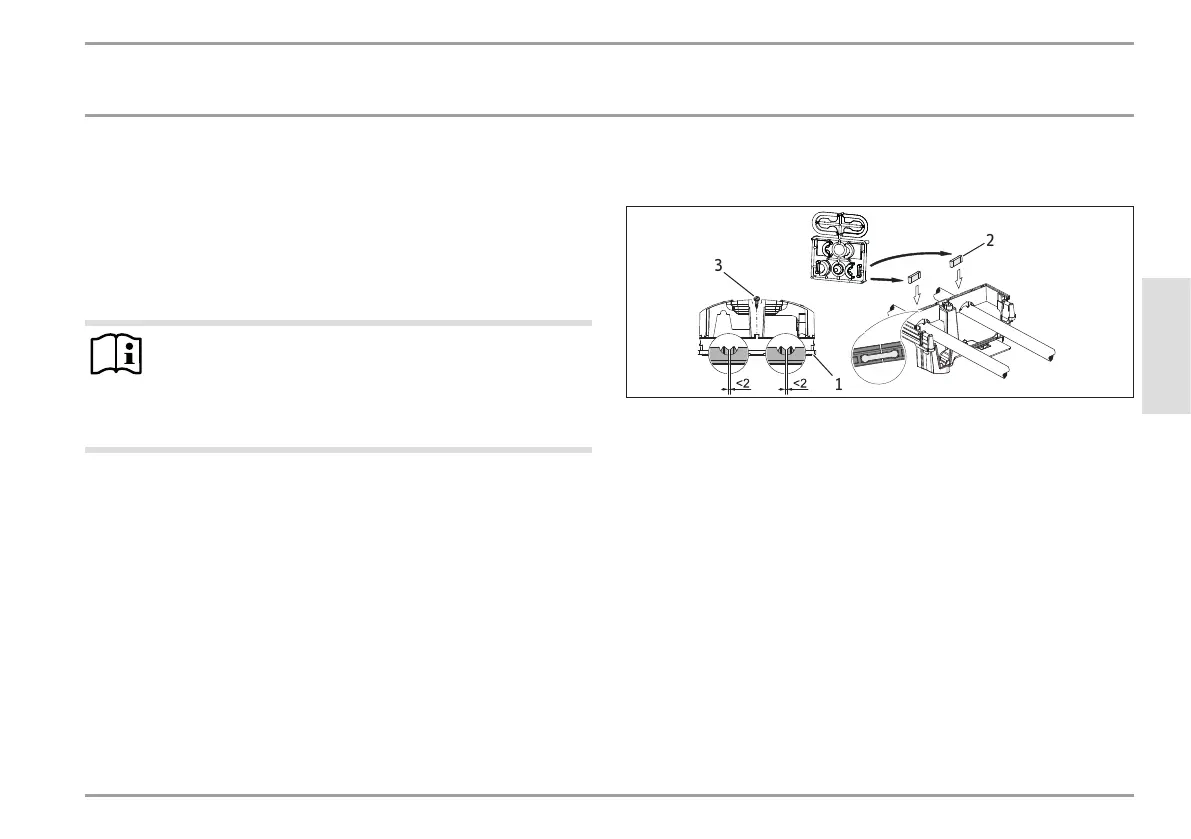

13.8 Lower back panel section installation with
threaded fittings on finished walls
D0000053286
2
3
1
1 Lower back panel section
2 Connection piece in the standard delivery
3 Screw
If using threaded fittings on finished walls, the lower back panel
section can also be installed after fitting the taps. To do this, carry
out the following steps:
Cut open the lower back panel section.
Fit the lower back panel section by bending it out at the sides
and guiding it over the pipes.
Insert the connection pieces into the lower back panel sec-
tion from behind.
Click the lower back panel section into place.
Secure the lower back panel section with a screw.
