INSTALLATION
Installation
ENGLISH

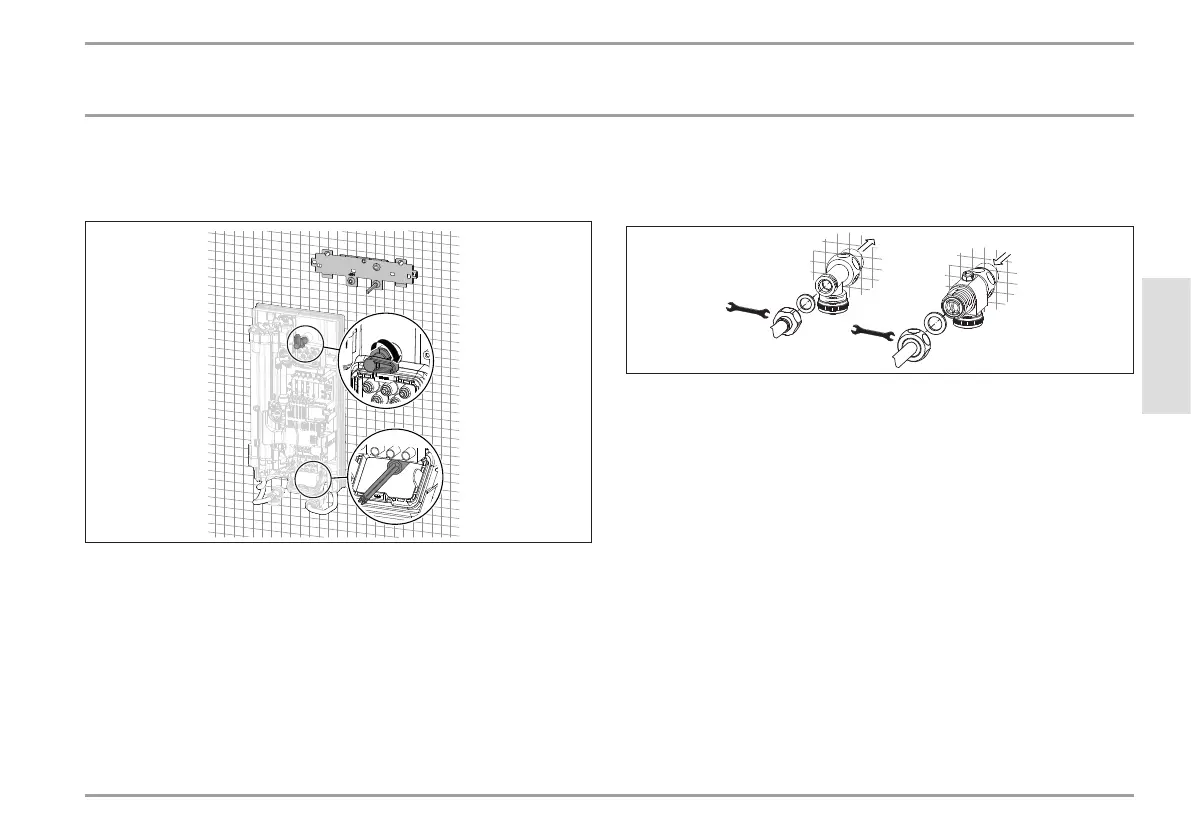

Pull the cable grommet over the cable sheath of the power
cable. For large cable cross-sections, enlarge the hole in the
cable grommet if necessary.
D0000053274
Remove the transport protection plugs from the appliance
pipe connections.
Bend the power cable 45° upwards.
Route the power cable and cable grommet through the back
panel from the rear.
Install the appliance on the threaded studs of the wall
mounting bracket.
Press the back panel firmly into place, aligning it correctly.
Lock the fixing toggle by turning it 90° clockwise.
Pull the cable grommets into the back panel until both lock-
ing tabs engage.
24
19
3 Nm
5 Nm
D0000056244
Fit the pipe connections with flat gaskets onto the water
connections.
Open the 3-way ball shut-off valve or the shut-off valve in the
cold water inlet line.
