INSTALLATION
Installation options
90 |DHEConnect | DHETouch www.stiebel-eltron.com
 Route the other cable grommet over the cable sheath of the
power cable. Pull the cable grommets into the back panel,
until both locking tabs engage.
 Install the appliance on the threaded studs of the wall
mounting bracket.
 Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
 Pull the cable grommets into the back panel, until both lock-
ing tabs engage.
 Connect the power cable to the mains terminal.

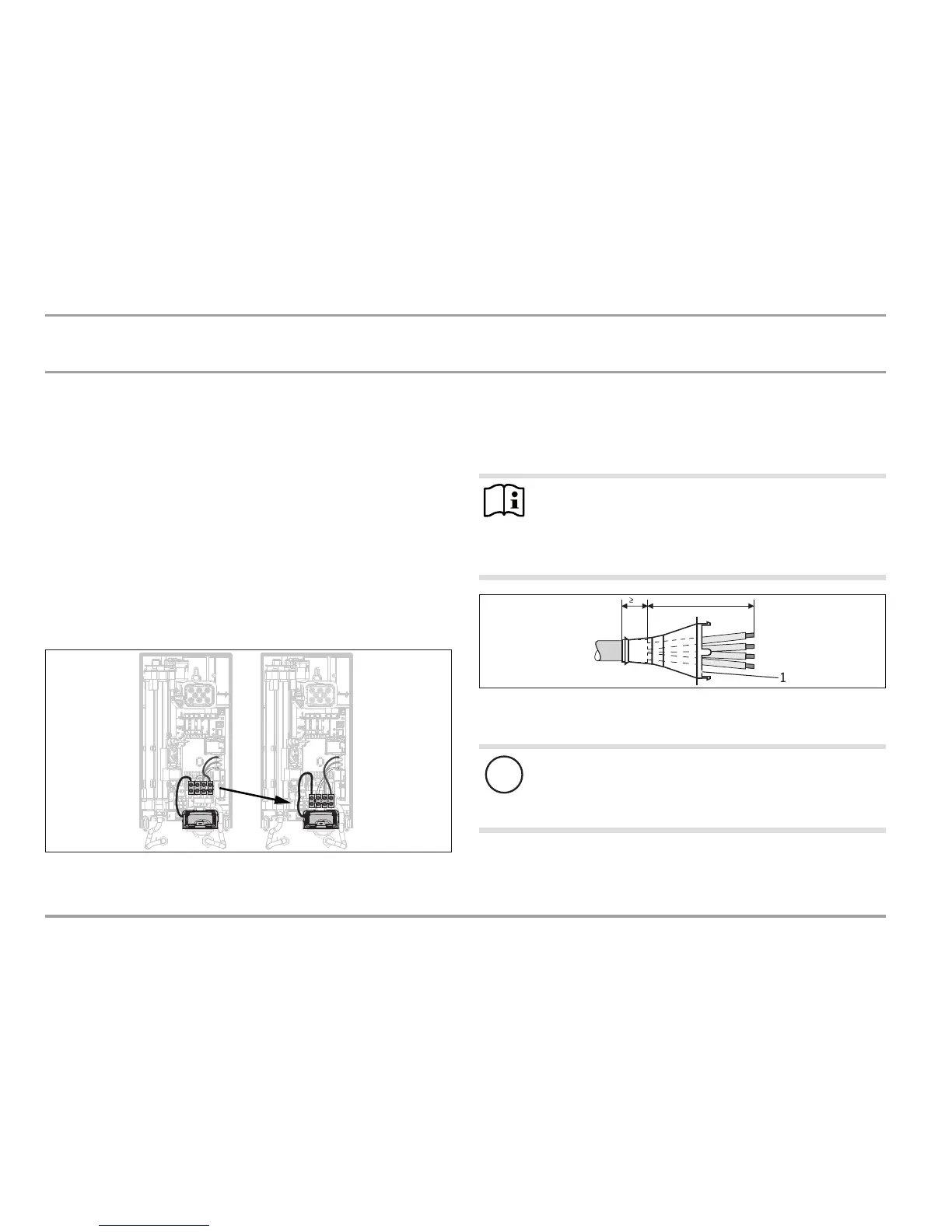

13.2 Electrical connection on unfinished walls with
short mains connection cable
D0000060387
 Reposition the mains terminal further downwards. To do this,
undo the fixing screw. Secure the mains terminal in place.
13.3 Electrical connection on finished walls
Note
This type of connection changes the IP rating of the ap-
pliance.
 Change the type plate. Cross out "IP25" and mark
the box "IP24". Use a ballpoint pen to do this.
160
30
D0000056232
1
1 Cable grommet
 Prepare the power cable. Fit the cable grommet.
!
Material losses
Use a new back panel or appliance cover if you break
out the wrong hole in the back panel or appliance cover
by mistake.
