INSTALLATION
Installation
10. Installation
Standard installation
- Electrical connection from below on unfinished walls
- Water connection on unfinished walls
- Medium connected load is selected
Other installation options
See chapter "Installation options"
10.1 Standard installation

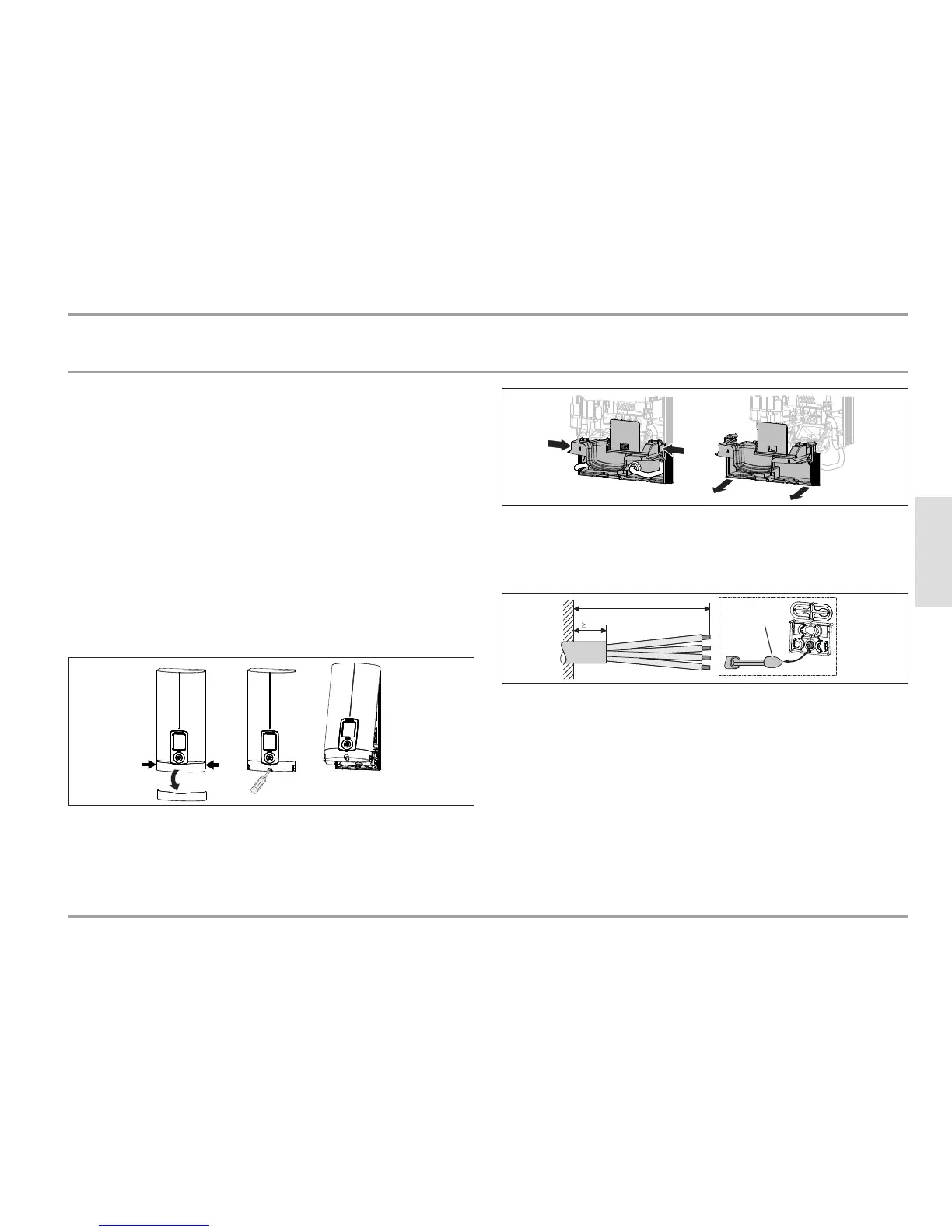

Opening the appliance
D0000053271
Open the appliance by holding the fascia at the side and pull-
ing forwards away from the appliance cover. Undo the screw.
Pivot open the appliance cover.
D0000053272
Remove the back panel by pressing the two locking tabs and
pulling the lower section of the back panel forwards.
Preparing the power cable
160
30
D0000053273
1
1 Cable entry installation aid
Prepare the power cable.
