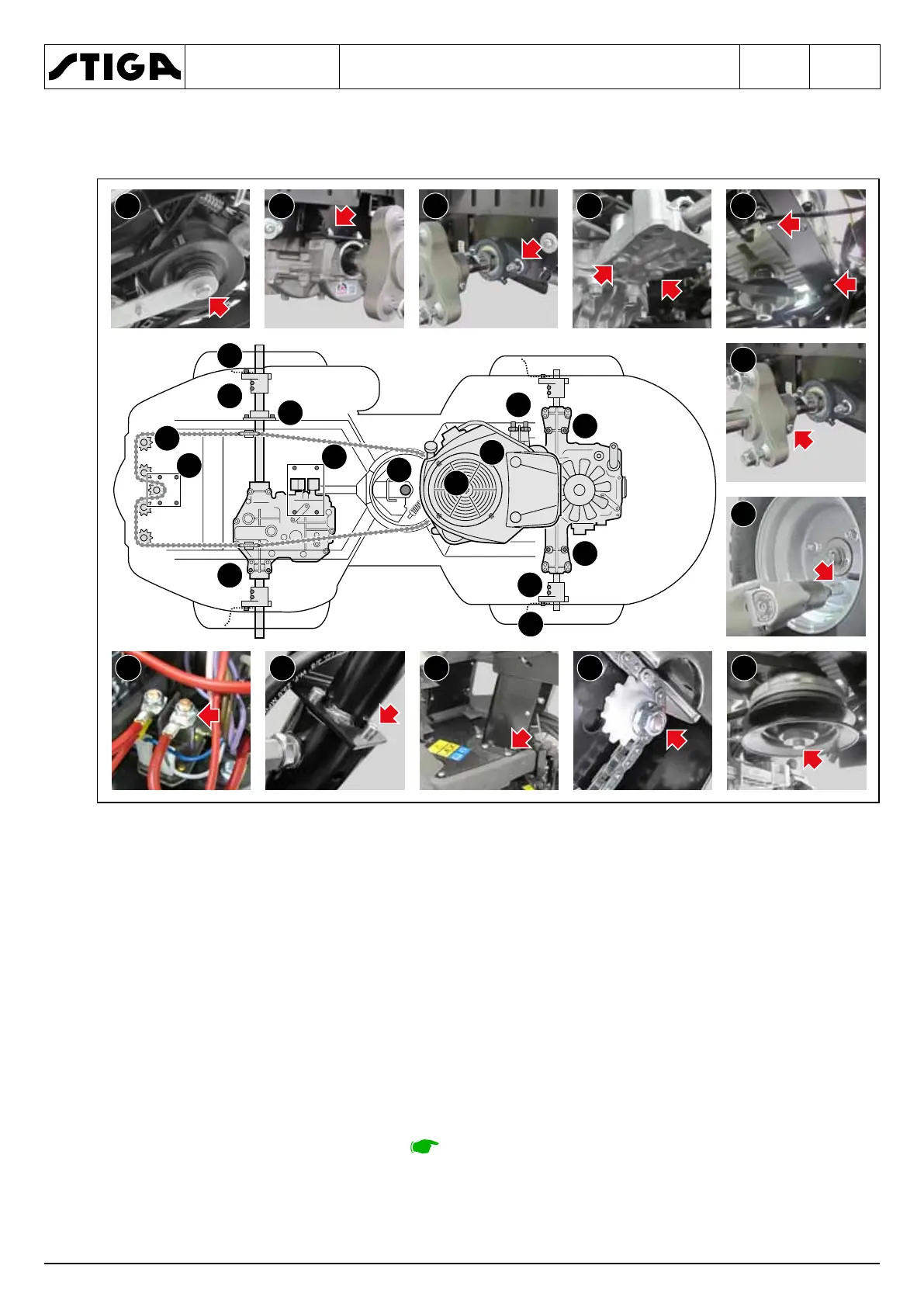

The following list describes the most common situations to which special attention should be paid.
1. Articulated joint screw ............................................................... 35-50 Nm
2. Front transmission fixing nuts to frame ...................................... 20-25 Nm
3. Front transmission fixing nuts to oscillating support .................. 35-50 Nm
4. Rear transmission fixing nuts to frame ....................................... 20-25 Nm
5. Motor fixing screws .................................................................... 35-50 Nm
6. Wheel hub screws (4WD only) .................................................. 20-25 Nm
7. Wheel fixing nuts ....................................................................... 35-50 Nm
8. Clutch fixing screw .................................................................... 60-70 Nm
9. Steering chain pinion fixing nuts ................................................ 35-50 Nm
10. Seat column fixing screws ......................................................... 20-25 Nm
11. Steering column fixing screws ................................................... 6-8 Nm
12. Solenoid cable connection nuts (max) ...................................... 4-5 Nm
As for the tightening torques of the pipes and fittings of the hydraulic system, see the summary
diagram of the hydraulic connections.
