WORKSHOP MANUAL
EDITION
PAGE
33 /
124

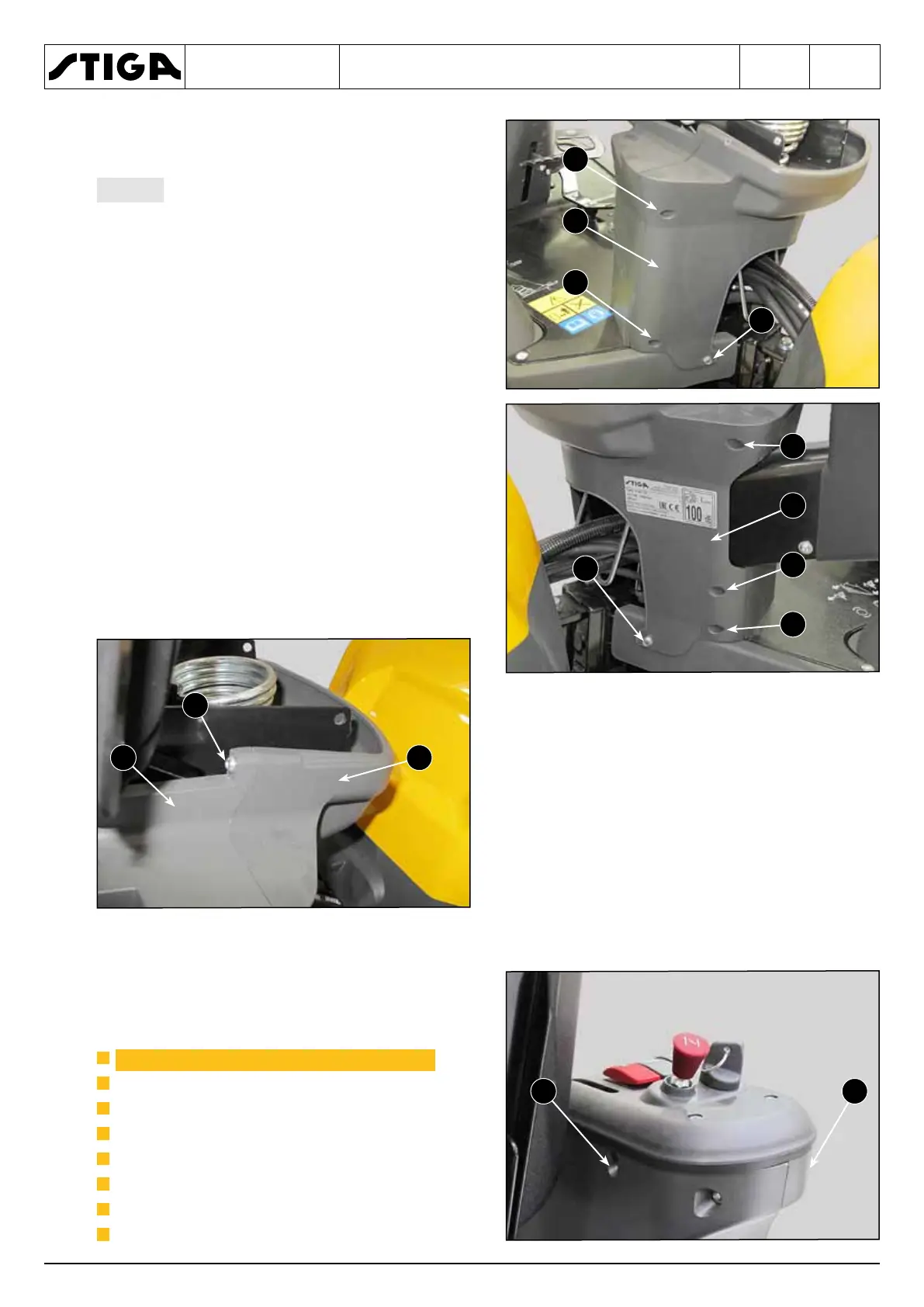

The cover under the seat consists of a
rear casing and a front casing, connected to each
other and fixed to the footboard.
1. Working from the rear part of the casing (1),
unscrew the three screws (2) located on the
left side.
2. Unscrew the four screws (3) on the right side.
3. Working from the front, unscrew the two up-
per screws (5) and separate the front part
(4) from the rear part (1).
When assembling, perform the steps de-
scribed above in reverse order.
▶▶
1. Unscrew the screw (1) on the left side.
