ξξξξξξξξξξ Hydraulic oil under pressure can be very dangerous if pipes, lines or
other distribution parts lose oil.
To avoid personal injury, always wear protective gloves and goggles when working on the
hydraulic system.
ξξξξξξξξξξξMaintaining cleanliness is an essential condition in all interventions on the hydraulic
system. Foreign substances and contamination compromise the operation and reliability of the
system.
Always protect and close the openings of hoses, fittings and any other component when disas-
sembling.
ξ’Ώξξ’Έξξ’Ίξξ ξξξΏξ·ξ½ξξ·ξξξ
ξΌξξΎξξΊξξ·ξξξΏξΉξξΉξ
ξξξ»ξΉξξΏξ
ξξ

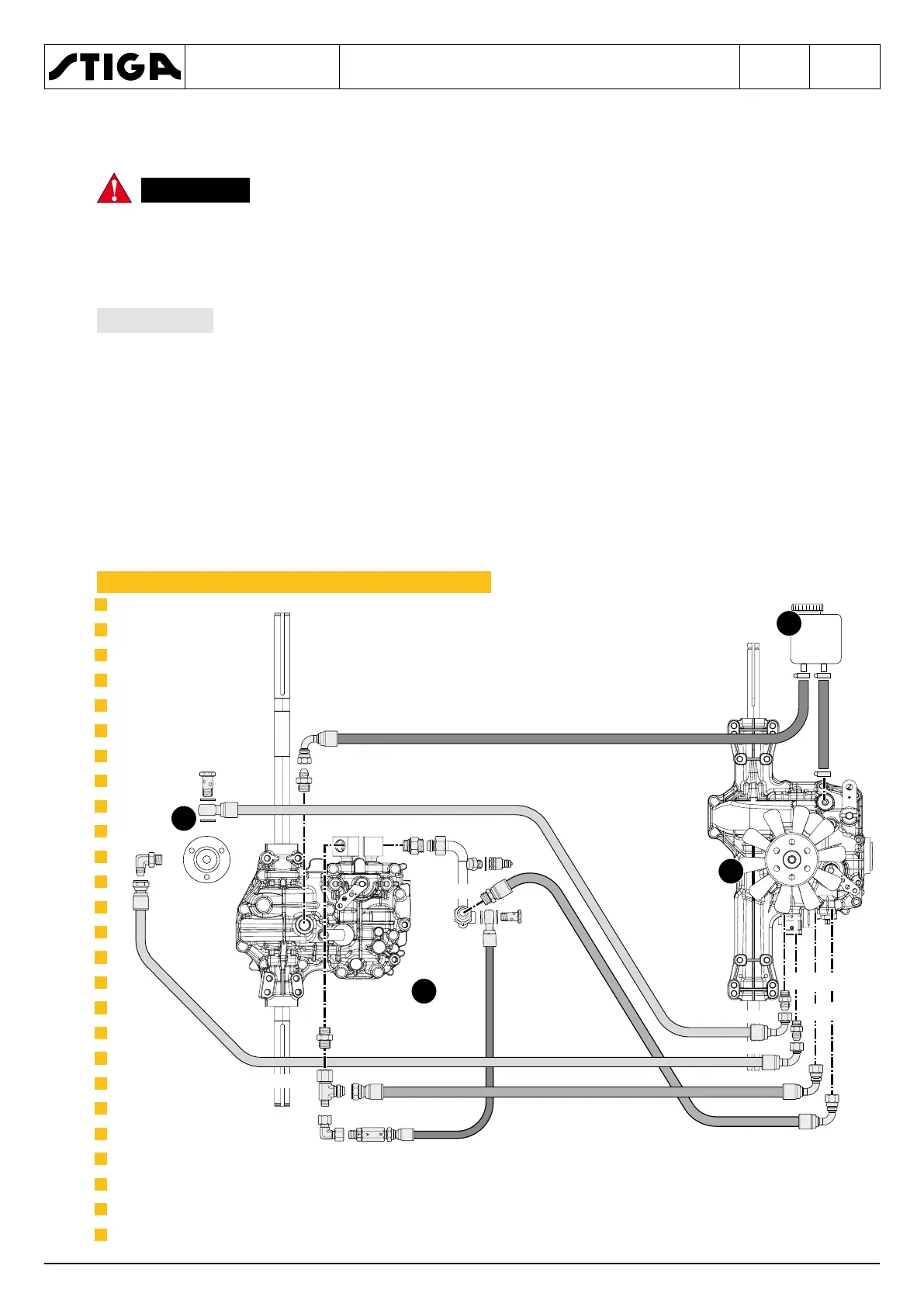

The diagrams show the connections between the various components, with the indication of the
correct tightening torques to be applied to ensure the tightness of the various fittings.
βΆβΆξξξ·ξξξξ’»ξξξξξ·ξΉξΎξΏξξ»ξξξξξ ξ ξ
1. Rear transmission unit
2. Front transmission unit
3. Hydraulic steering valve
4. Oil tank
27-30 Nm
35-42 Nm
35-42 Nm
30-37 Nm
60-65 Nm
60-65 Nm
60-65 Nm
25-27 Nm
25-27 Nm
25-27 Nm
60-65 Nm
60-65 Nm60-65 Nm
24-31 Nm
60-65 Nm
60-65 Nm
24-31 Nm
24-31 Nm
24-31 Nm
24-31 Nm
60-65 Nm
