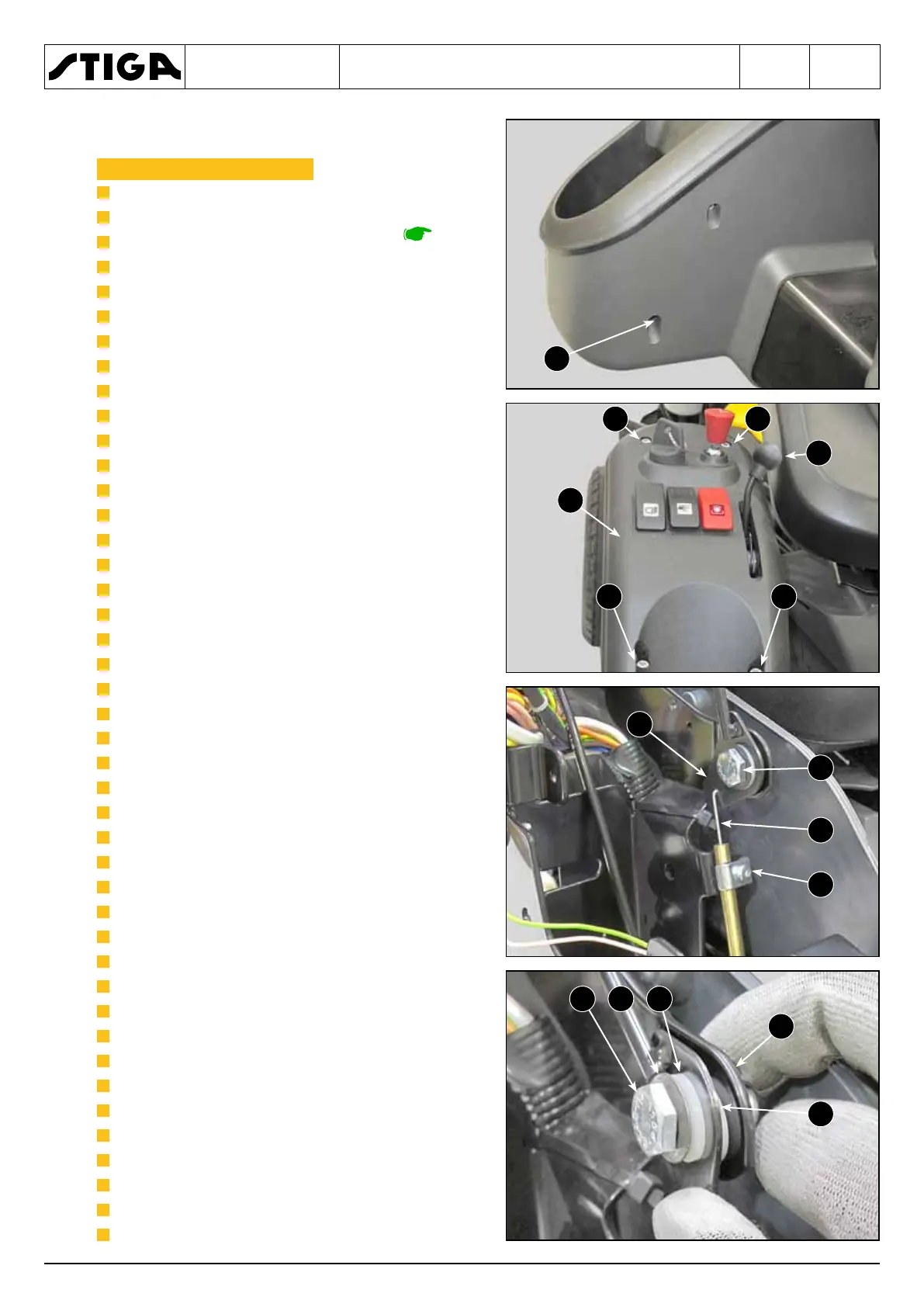

1. Remove the dashboard casing. ๎
๎๎ขบ๎๎ขธ๎๎ขฝ๎
2. Unscrew the screw (1) located in the lower
left part of the dashboard.
3. Unscrew the throttle knob (2).
4. Unscrew the four screws (3) and remove the
upper dashboard cover (4).
5. Loosen the clamp screw (5) and disconnect
the โZโ terminal of the cable (6) from the
throttle lever (7).
6. Unscrew the screw (8) and remove all the le-
ver assembly (7) and the pivot components.
When assembling, perform the steps de-
scribed above in reverse order, taking care to:
โ observe the exact assembly sequence of
the spacers and plastic washers (9), as well
as the cup spring (10) under the head of the
screw (8);
โ tighten the screw (8) so as to eliminate any
residual axial backlash, while maintaining
the smoothness of operation and the pos-
sibility of stopping the lever in the desired
position.
