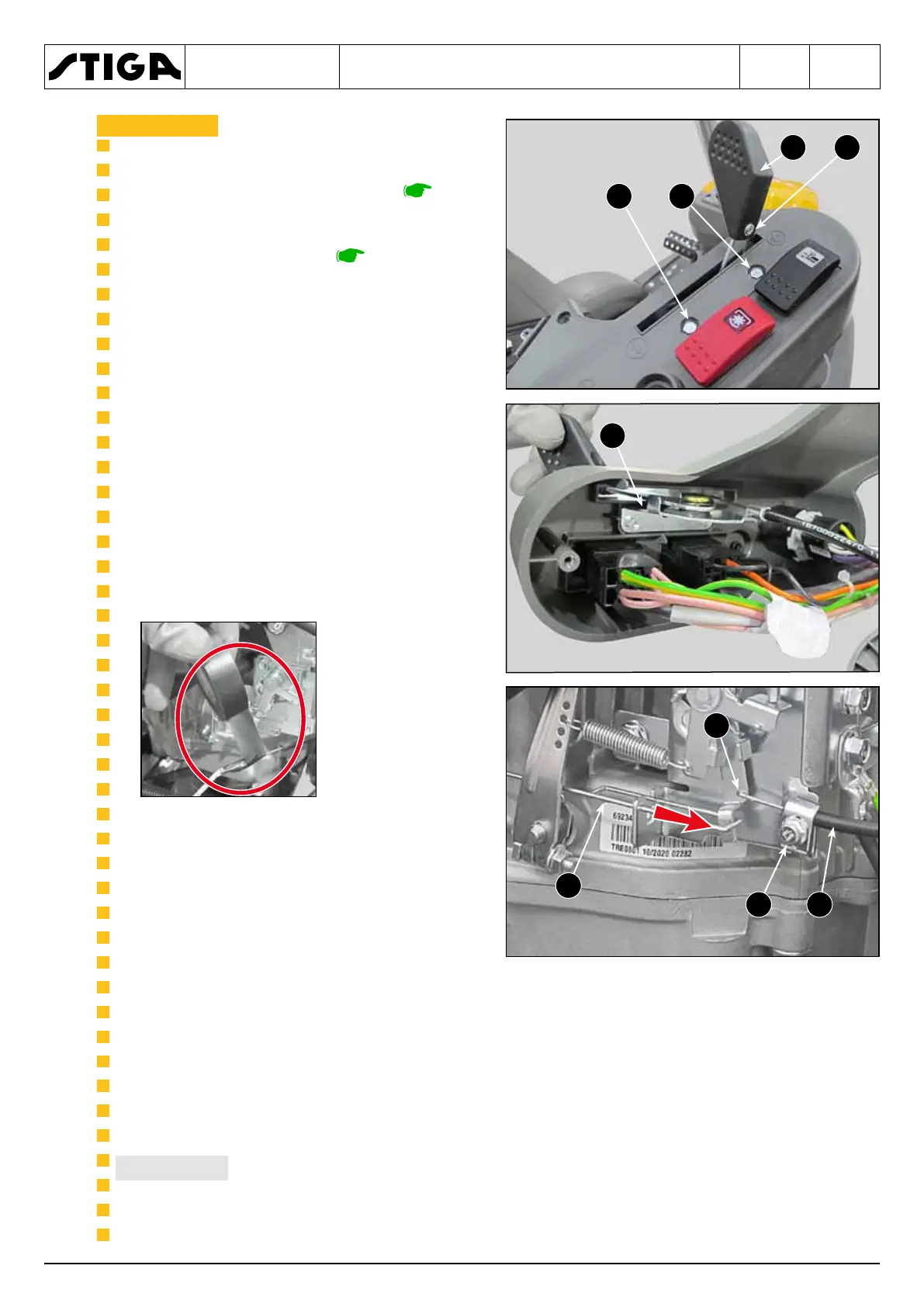

1. Remove the dashboard casing.
2. Remove the rear hood .
3. Unscrew the screw (1) and remove the throt-
tle knob (2).
4. Unscrew the two screws (3) that secure the
throttle (4).
4. Loosen the clamp screw (5) and disconnect
the “Z” terminal (6) of the throttle cable and
release the cable sheath (7).
5. Working on the engine side, join the end
of the old cable to
a cable or a cable
pulling probe, using
a sufficiently strong
and reliable adhe-
sive tape.
6. Working from the dashboard side, carefully
pull the old cable which, in this way, guides
the cable pulling probe all the way, from the
engine to the exit of the terminal (6).
7. In the same way, working from the dashboard side, join the terminal of the new cable to the
cable puller probe or to the cable and pull in the opposite direction to bring the terminal of the
new cable (6) to the engine.
8. With the throttle in the «MAX» position, connect the terminal (6) of the cable to the engine
lever, then pull the sheath completely back and secure it with the clamp (5).
In engines with “autochoke” device and therefore without the choke control, make
sure that the sheath is fastened so as to bring the choke rod (8) all the way down, when the
throttle lever is in the fully advanced position.
