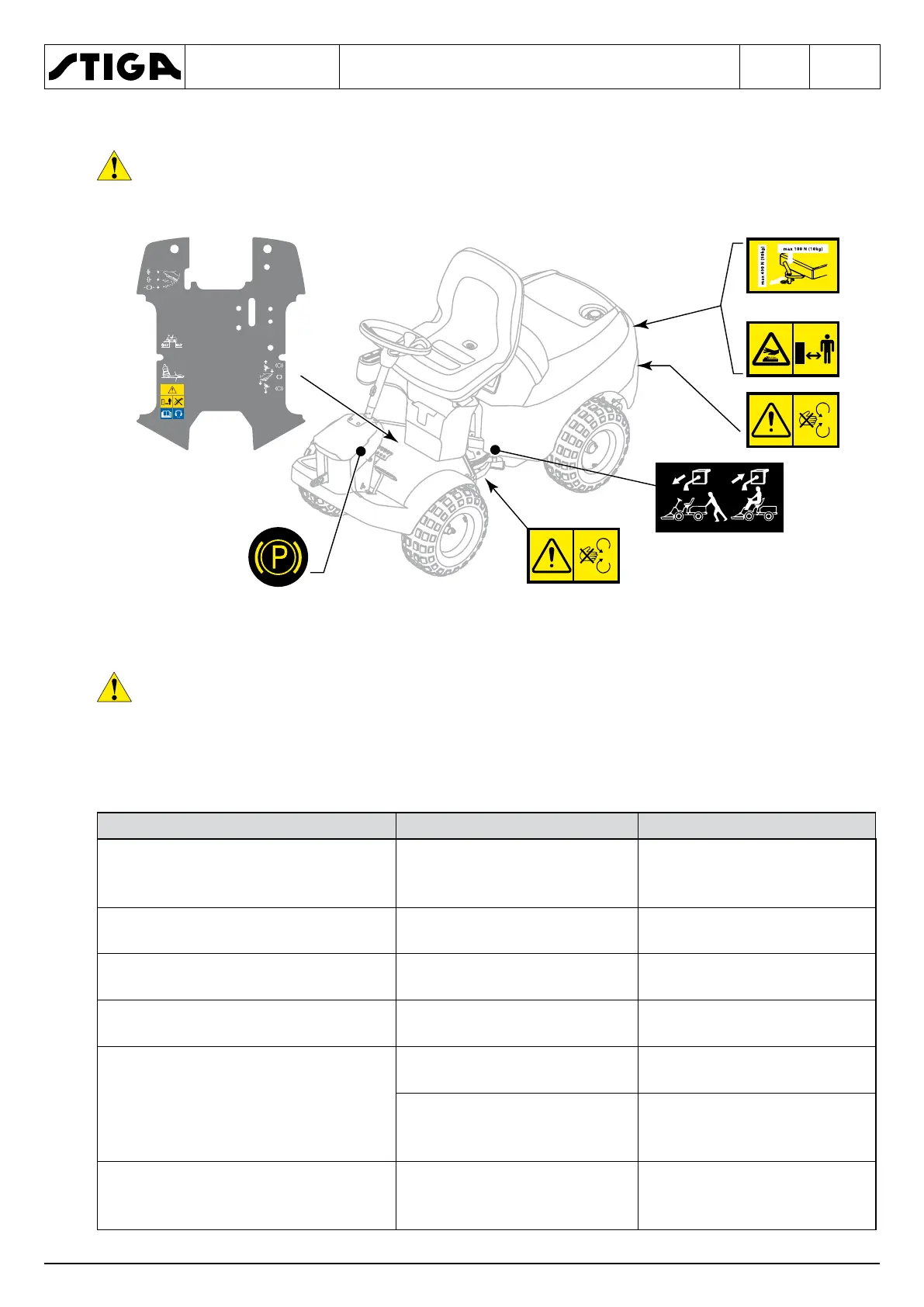

These labels are considered an integral part of the safety devices. Always replace unread-
able labels and restore missing ones, according to the figure shown here.
The safety systems intervene according to two basic criteria:
– to prevent ignition if ALL safety conditions are not met;
– to stop the machine operation if ONE or MORE condition are not met.
The table shows some typical situations.
• Operator seated.
• Parking brake engaged.
• Power Take-Off deactivated
Rotate the key in the start
position.
The machine is turned on
• Machine switched on or in motion.
The operator gets up from
the seat.
The machine stops
• Operator not seated.
• Parking brake engaged.
Try turning on the machine
The machine is NOT start-
ing.
• Operator seated.
• Parking brake not engaged.
Try turning on the machine The machine is not starting.
• Machine on.
• Power Take-Off activated.
The operator gets up from
the seat.
Power Take-Off is
deactivated.
Move the mechanical lifting
pedal to the transport posi-
tion.
Power Take-Off is deacti-
vated.
• Machine on.
Drive the machine forwards
and backwards and release
the drive pedal.
The machine must slow
down to a standstill within
1.90 metres.
