WORKSHOP MANUAL
EDITION
PAGE
30 /
124

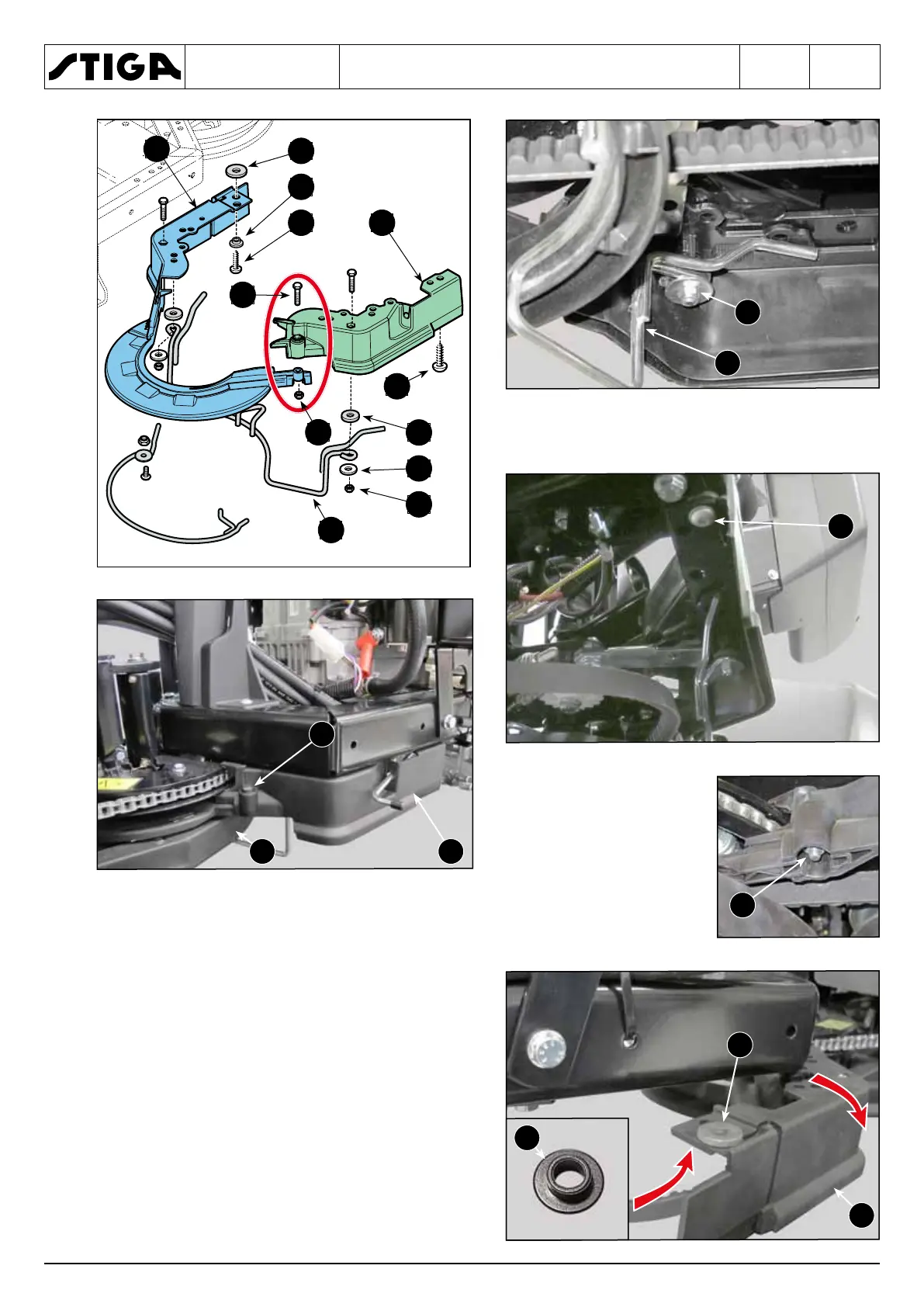

3. Unscrew the two rear screws (5).
4. Unscrew the nut (6)
and extract the rela-
tive screw (7) that
connects the left cas-
ing (1) to the right
casing (2).
5. Remove the left casing (1).
6. Carefully remove the right casing (2), guiding
the protruding front part around the central
joint components.
When assembling, repeat the steps described
above in reverse order, taking care of:
– reposition the shim washer (8) between the
right casing and the frame and the bushing (9)
under the rear right screw (5);
– correctly reassemble the belt guide arch (3)
with the thicker dark washer (10) at the top and
the thin galvanized washer (x) under the nut
(11).
