WORKSHOP MANUAL
EDITION
PAGE
36 /
124

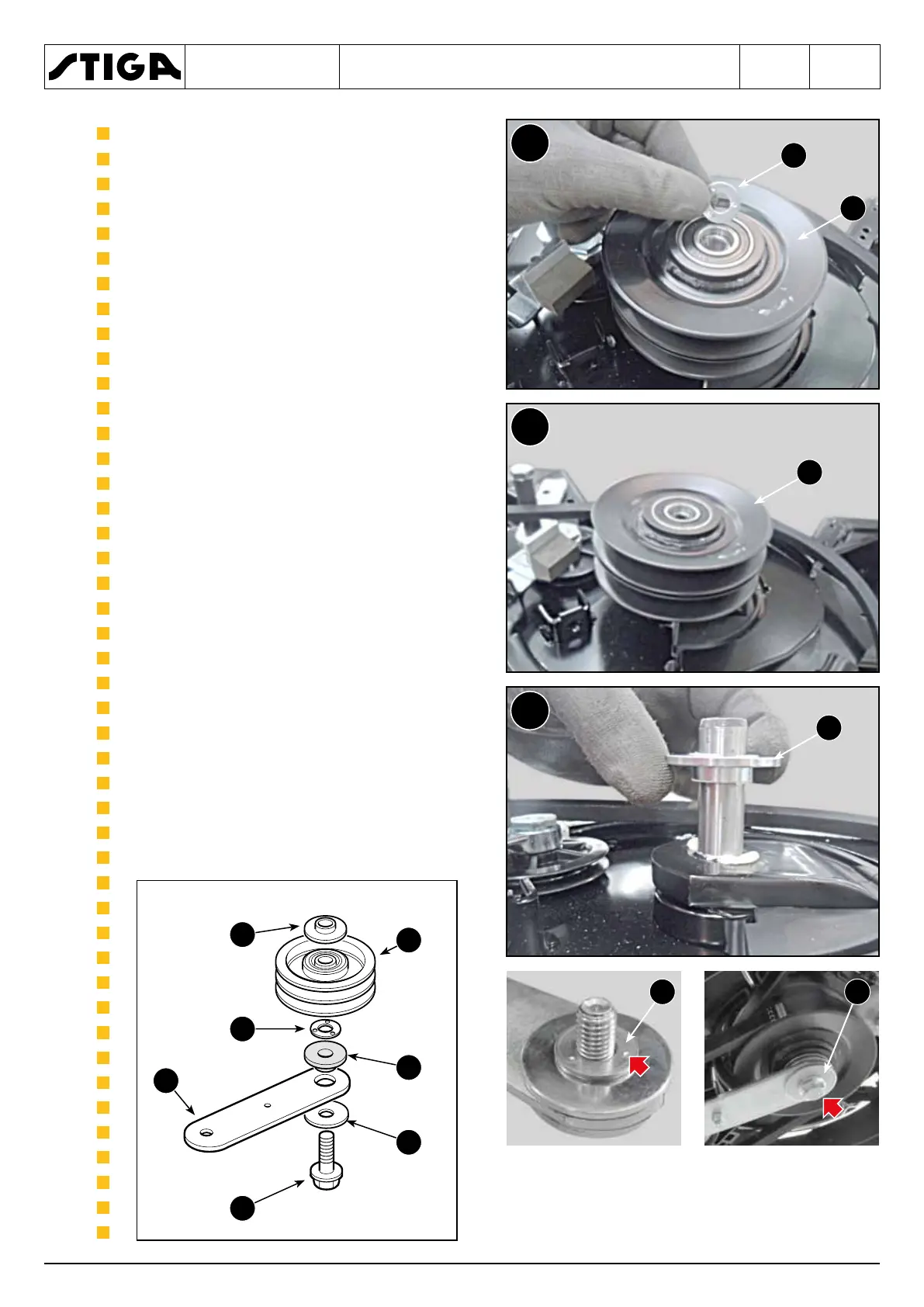

5. Remove the shim washer (15) placed be-
tween the double pulley (16) and the spacer
(14).
6. Unscrew the double pulley (16).
7. Remove the spacer (17) between the dou-
ble pulley (16) and the frame.
Perform the steps described above in reverse
order, taking care of:
– correctly reposition all the washers and
spacers previously removed, according to
the sequence shown in the drawing;
– fit the spacer (15) with the three bosses fac-
ing the pulley (16).
– Tighten the central screw (11) with a torque
wrench set to 35-50 Nm.
