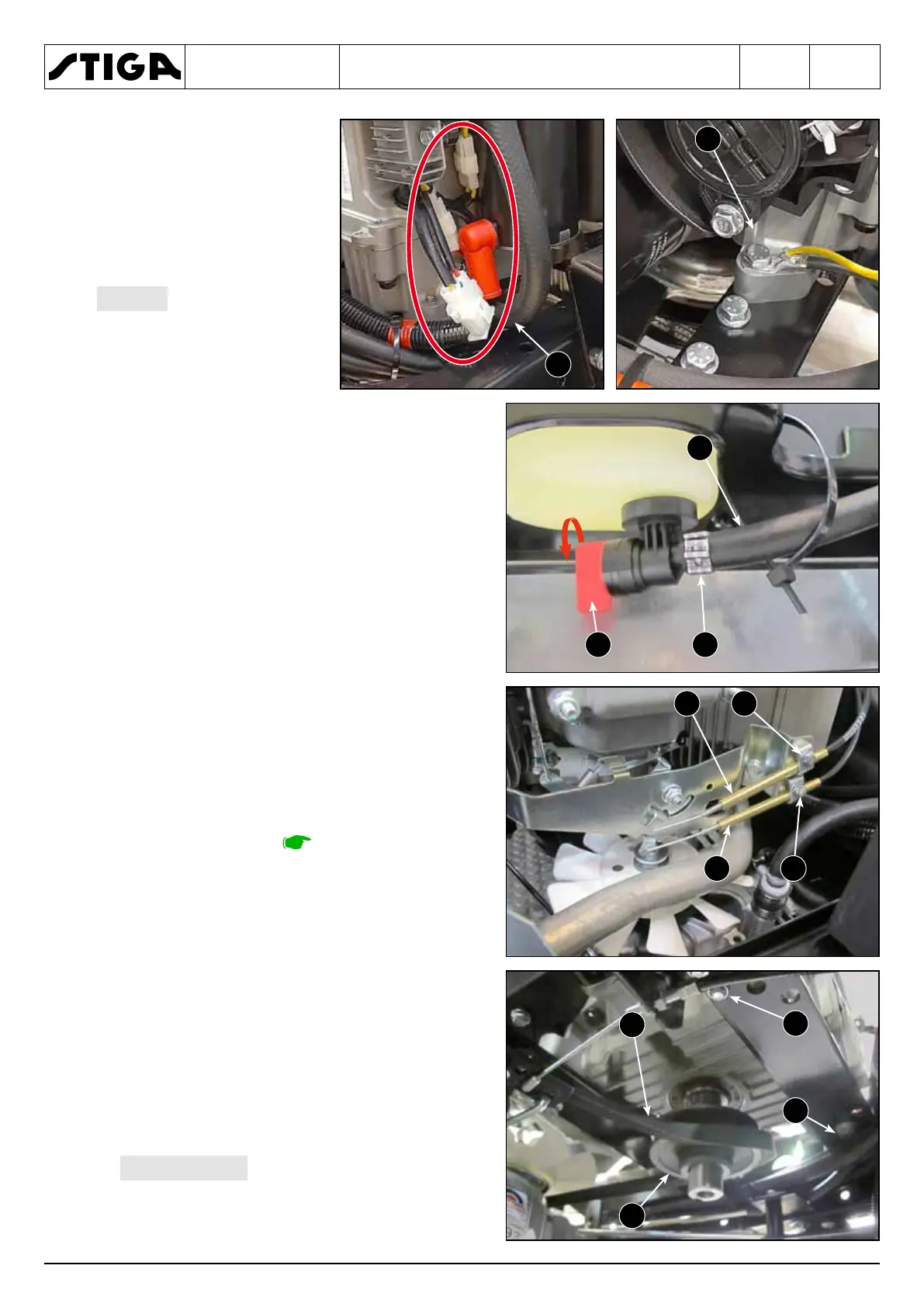

2. Disconnect the engine
wiring connectors, the
choke motor cable (3)
and the ground cables
(4).
Given the possibil-
ity of using different engines,
the images are only an ex-
ample.
3. Close the tank tap (5). Prepare a container
and remove the clamp (6) with the help of a
screwdriver and pour the petrol in the tube (7)
into the container.
4. Loosen the screws of the terminals (8) and
(9) and disconnect the throttle (10) and choke
(11) cables.
5. Remove the clutch
.
6. Press the brake pedal to loosen the belt (12)
and be able to free it from the pulley (13) and
remove the pulley from the shaft.
7. Unscrew the four screws (14) securing the en-
gine.
The engine screws can be
different from each other; for this reason it is
advisable to mark them so as not to incur as-
sembly errors.
