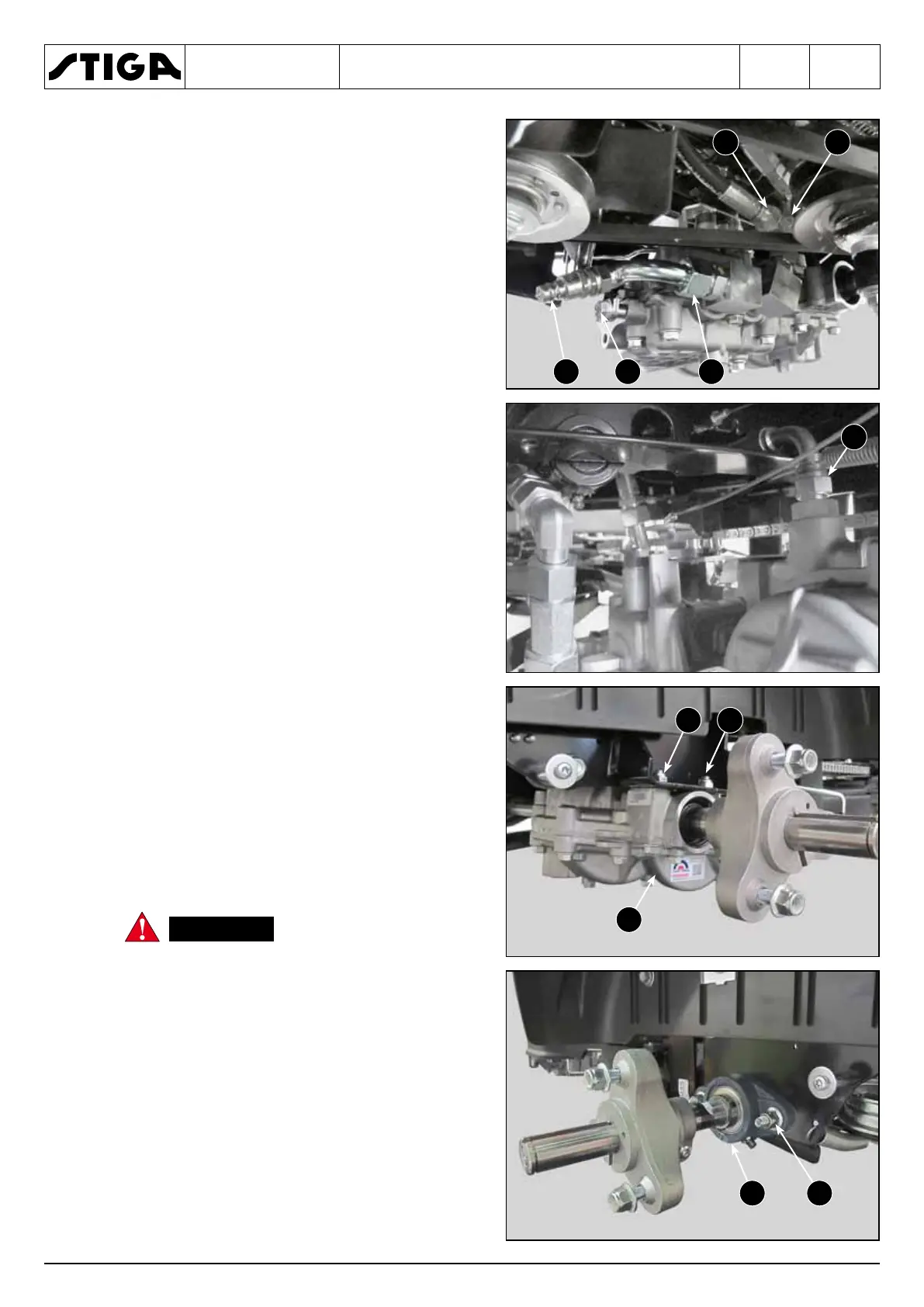

6. Disconnect all hydraulic connections:
– unscrew the fittings (11) and (12) on the rear
part of the transmission unit, marking them
appropriately so as not to make mistakes
during the assembly:
11 = Rear transmission return pipe;
12 = Rear transmission delivery pipe;
– unscrew the fitting (13) and the screw (14) to
remove the attachment for quick filling (15).
– unscrew the fitting (16) on the rear part of
the transmission unit, marking it appropri-
ately so as not to make mistakes during the
assembly:
16 = Oil drainage pipe to the tank
7. Remove the transmission unit from the ma-
chine
Loosen the screws care-
fully, adequately supporting the transmis-
sion unit so as not to cause it to fall.
– unscrew the two nuts (18) which directly fix
the transmission unit (19) to the frame from
the left side;
– unscrew the two nuts (20) that fix the trans-
mission unit (19) to the frame through the
support (21) from the right side.
