34 EN
4. INSTALLATION
Requirements and obligations:
• Satellite reference station (A).
• 5 metre extension cable (L) (included).
• or 15-metre extension cable (to be purchased separately) (L).
• Or power supply unit (F) (to be purchased separately).
• Mounting bracket (E)
• Screws for xing the satellite reference station to the bracket (G).
• Clevis fastener for xing the bracket to a pole (H) or screws for wall mounting (not included).
Requirements and obligations:
1. Check the installation requirements in Par. 4.3.2.
2. Open the cover (B).
3. Disconnect the connector (C) of the satellite reference station (A) from the charging base (D).
4. Unscrew the xing screws (I) and remove the satellite reference station (A) from the charging base
(D).
5. Fasten the bracket (E) to a wall (N) using the xing screws (not included), making sure it is level.
When mounting on a pole (M), use the included clevis fastener (H) to secure the bracket (E).
6. Secure the satellite reference station (A) to the bracket (E) with the connector (C) facing downwards

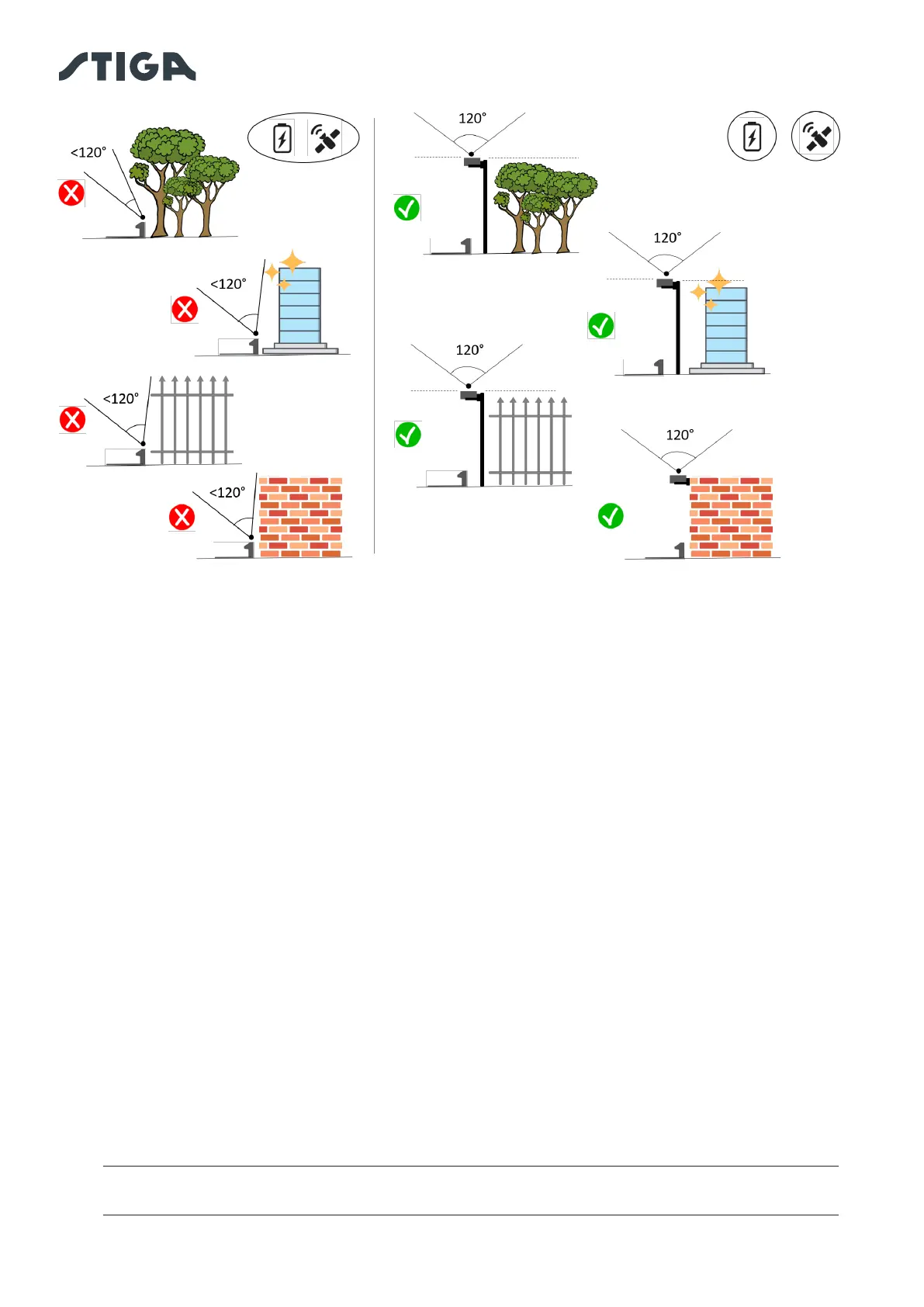

using the screws (G). Make sure the station is in a perfectly horizontal position. An installation height
of at least 2.5 metres above the ground is recommended.
7. Connect the satellite reference station to the power supply unit (F) or extension cable using the
connector (C) and tighten the ring nut.
8. Secure the power cable to prevent it from being damaged or posing a danger.
9. Connect the plug of the power supply unit (F) to the electrical socket. If an extension cable is being
used to supply power to the satellite reference station, connect the cable to the free connector on
the charging base and tighten the ring nut.
NOTE: The top of the satellite reference station should be as close as possible to the top of the
wall or the pole.
