22 EN
3. INSTALLATION
3. If there is an obstacle, for example a ditch (D), a wall or a low wall (E), arrange the perimeter wire (F)
at least X3 = 35 cm from the obstacle.

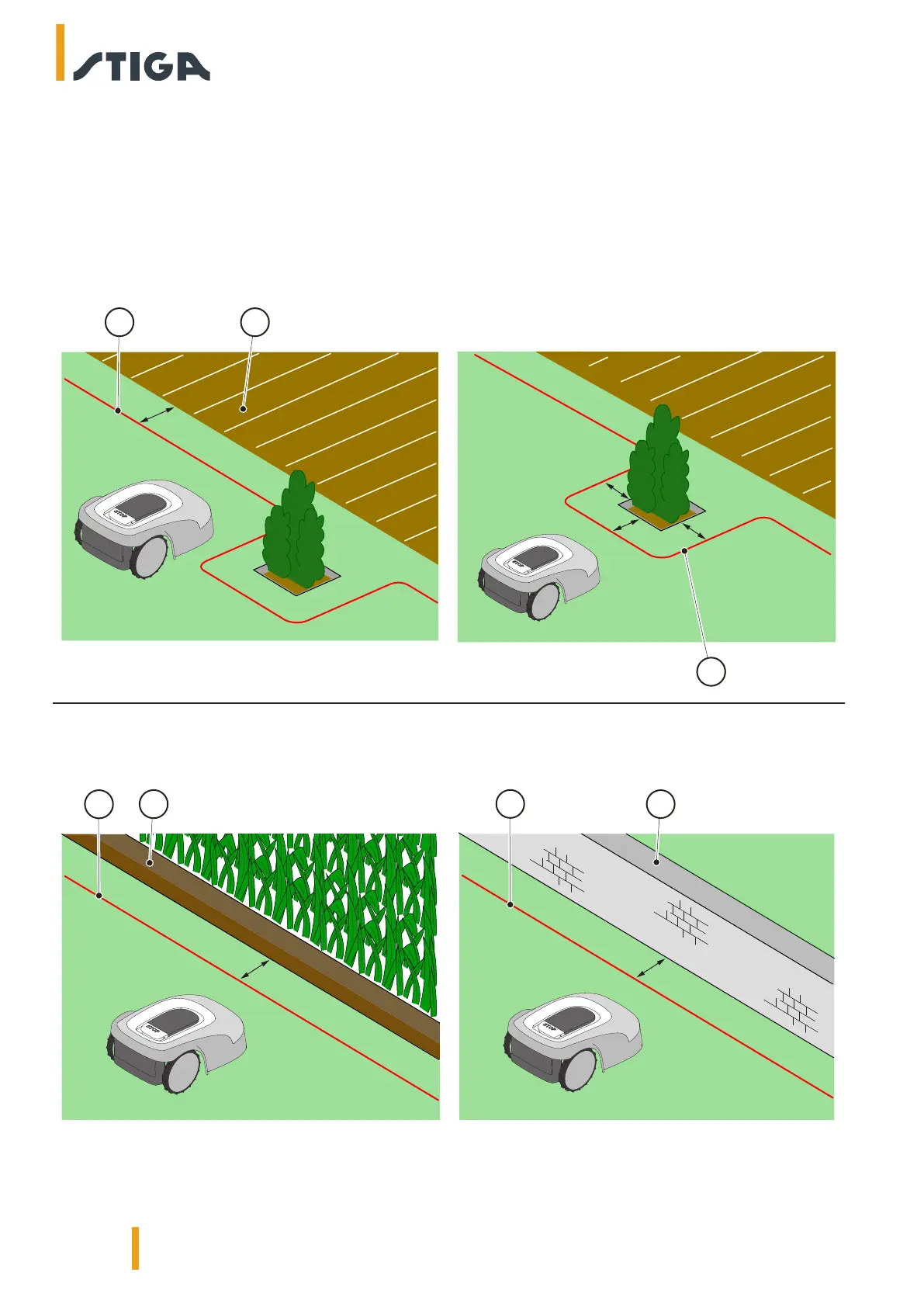

3.4. CRITERIA FOR INSTALLING THE PERIMETER CABLE
3.4.1. PERIMETER CABLE PLACEMENT
Procedure:
1. If there is a pavement or path (A) at the same level as the lawn, arrange the perimeter wire (B) at
X1 = 5 cm from the edge of the pavement.
2. In the vicinity of a level ower bed, a metal manhole, a shower surface or electrical cables, arrange
the perimeter cable (C) at least X2 = 30 cm away.
X2
X1
A
B
E
F
X3
D
F
X3
