3. INSTALLATION
3.4.2. DELIMITATION OF OBSTACLES:
Procedure:
1. If the minimum passage between two dierent sections of the perimeter wire is X ≥ 70 cm, the
obstacle can be delimited as shown in the gure (Q), overlapping the sections of the outward and
return cables without crossing them (R).
2. To delimit the obstacle (S):
• Place the perimeter wire up to the obstacle and go around it;
• Bring the cable back along the previous path overlapping it under the same nail, without creating
intersections (R).
NOTE: For the robot lawn mower's correct functioning , the minimum length of the superimposed
perimeter wire (R) must be X = 70 cm.

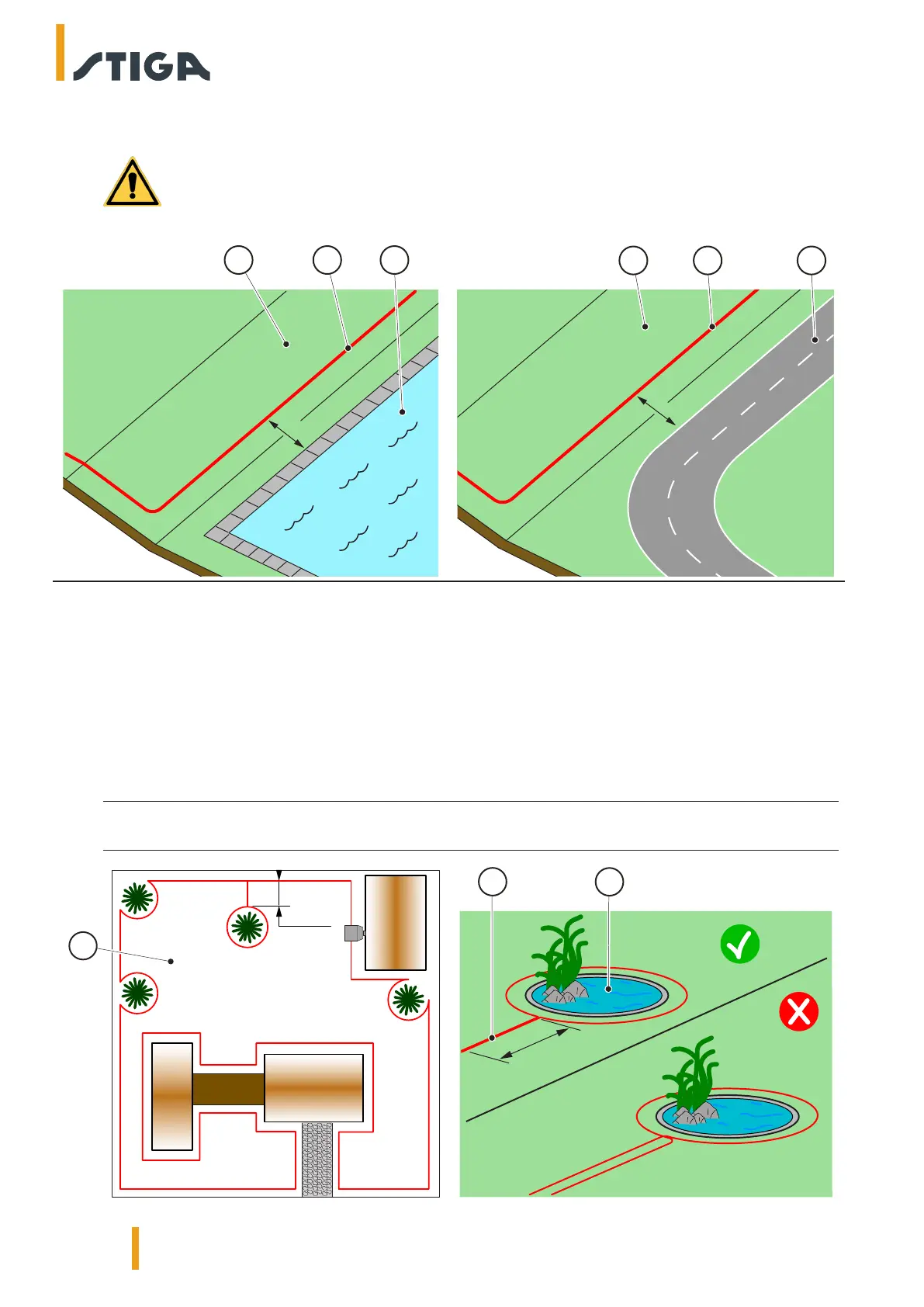

6. If there is a swimming pool (M) or a road (N) at the end of a slope (O), arrange the perimeter wire (P)
at least X6 = 150 cm.
WARNING:
If the slope is greater than 45%, the slope area must be excluded from the
cutting area (see Par. 3.3).
