FS 120, FS 200, FS 250

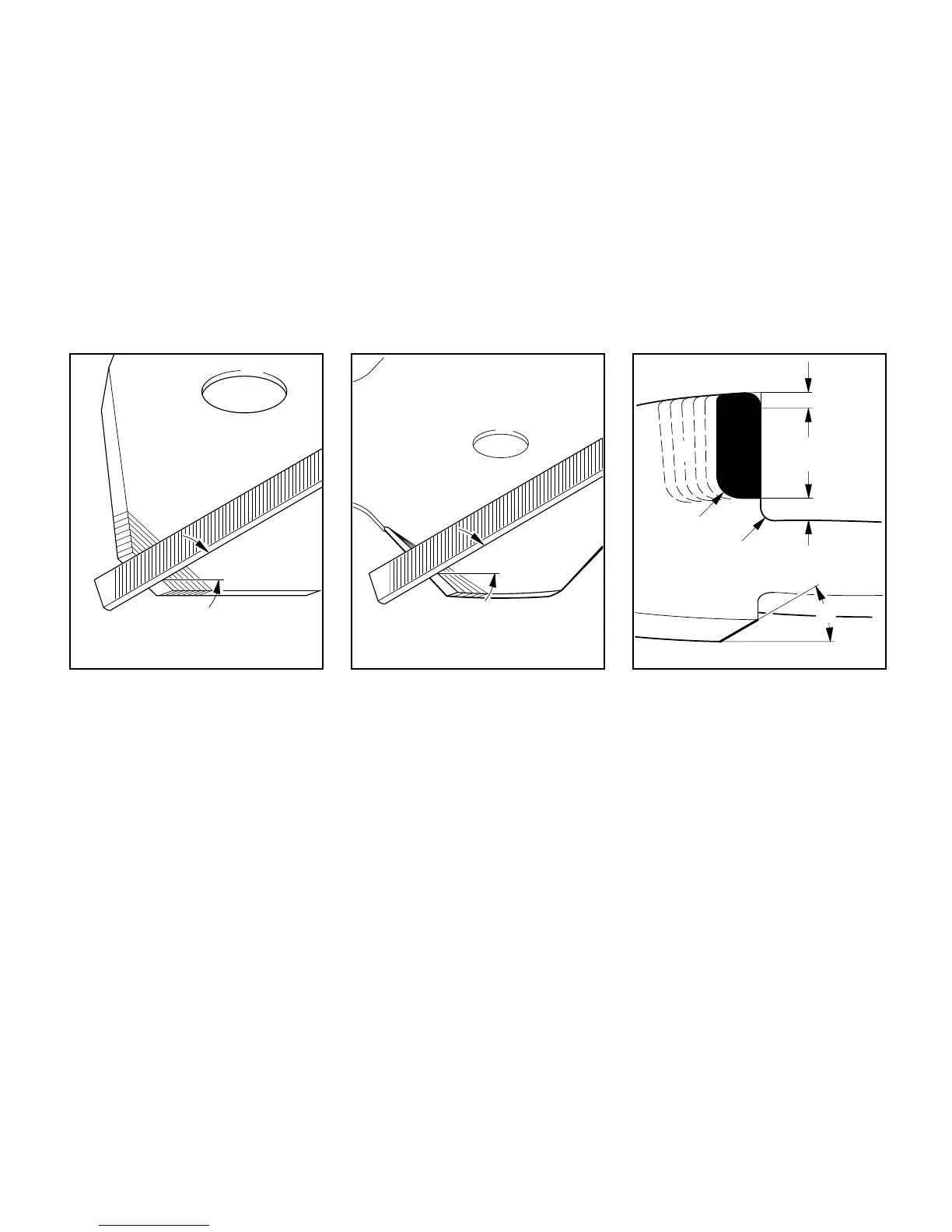

Grass Cutting blade 230-2
: Resharpen when all cutting edges
(3) on both sides of the blade are
dull: This ensures balanced wear.
: Maintain a sharpening angle of 30°
(A) on the cutting edge (3).
: File back the cutting edge parallel to
the lines (B).
Grass cutting blade 230-4
: Resharpen when all cutting edges
(3) on both sides of the blade are
dull: This ensures balanced wear.
: Maintain a sharpening angle of 30°
(A) on the cutting edge (3).
: File back the cutting edge parallel to
the lines (B).
Grass cutting blade 230-8
: Resharpen when the tips of the
cutting edges (3) have worn down to
about 1 mm (A).
Measurements and angles for
resharpening
: Leave clearance of 2 mm (B)
between cutting edge and parent
blade – R1 should be 2 mm. Radius
R2 is 2.5 mm and is obtained
automatically if you use the
specified file – see "Special
Accessories" – and maintain a filing
angle of 30° (C).
: Sharpen cutting edge as shown by
the lines (D) in the illustration.
A
002BA077 KN
B
3
B
3
A
3
002BA043 KN
3
C
A
B
R1
R2
3
D
002BA044 KN
