Stihl 350 - Mounting the Bike Handle

20
English / USA
FS 300, FS 350, FS 400, FS 450, FS 480

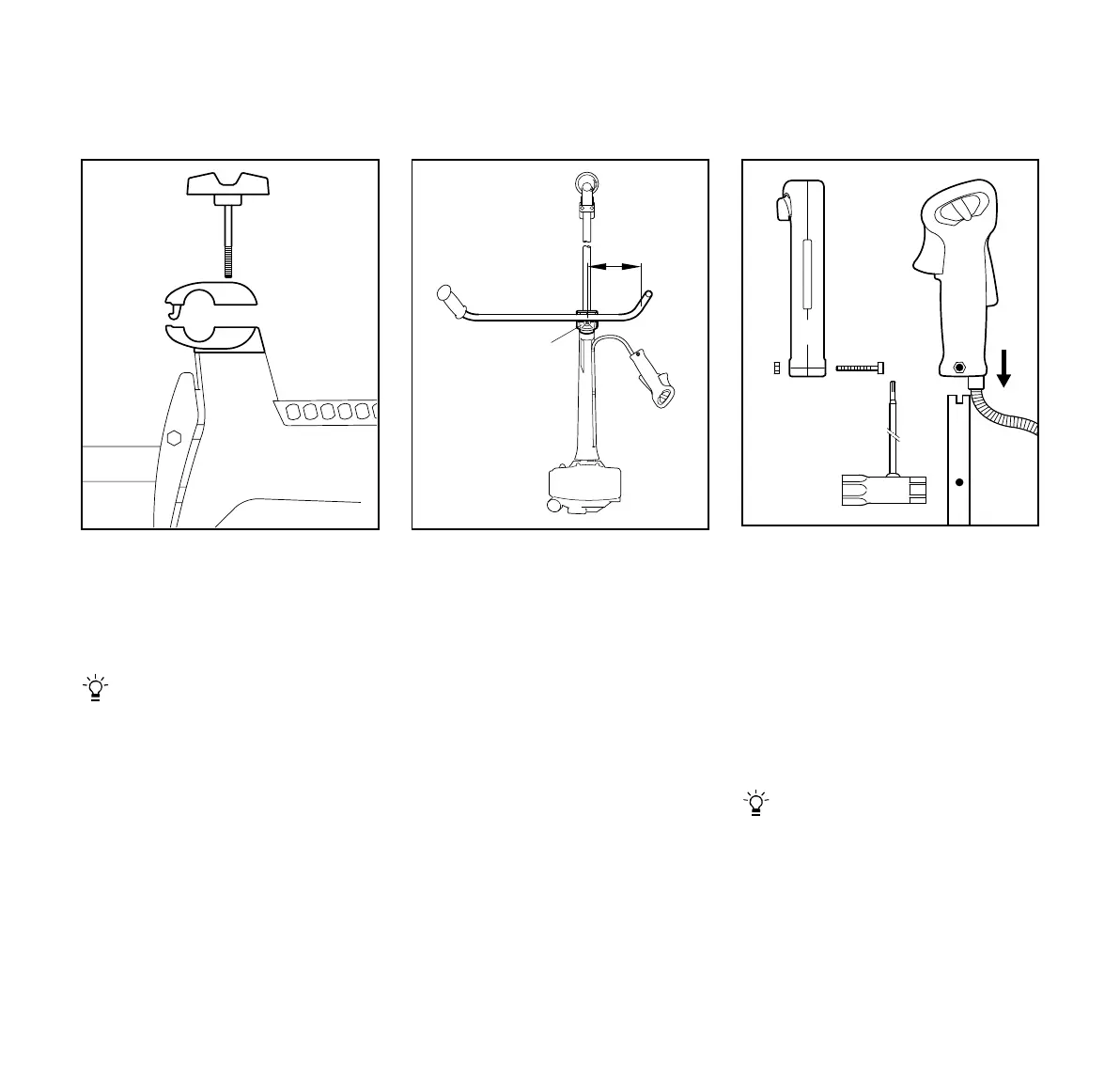

: Hold the lower clamp (1) steady.
: Unscrew and remove the clamp
screw (2).
: Remove the upper clamp (3) from
the lower clamp.
Upper and lower clamps are loose
once the clamp screw has been
removed.
: Place the handlebar (4) in the lower
clamp (1) so that distance A is no
more than 15 cm (6 in).
: Place upper clamp in position and
press it down.
: Fit the clamp screw.
: Line up handlebar at right angles to
the drive tube.
: Tighten down the clamp screw.
: Loosen the screw (5), the nut (6)
remains in the control handle (7).
: Push the control handle – throttle
trigger (8) facing the gearhead –
onto the handlebar (4) so that the
holes (9) line up.
: Insert screw and tighten it down
firmly.
: Go to "Adjusting the Throttle Cable
To save space when transporting or
storing the machine, loosen the
clamp screw and swing the
handlebar in line with the shaft, fold
the handles down.
