N Place the washer (4) on the starter
post
N Press the spring clip (3) on to the
starter post and over the pegs of the
pawl with a screwdriver or suitable
pliers. The spring clip must point to
the left, in counterclockwise
direction

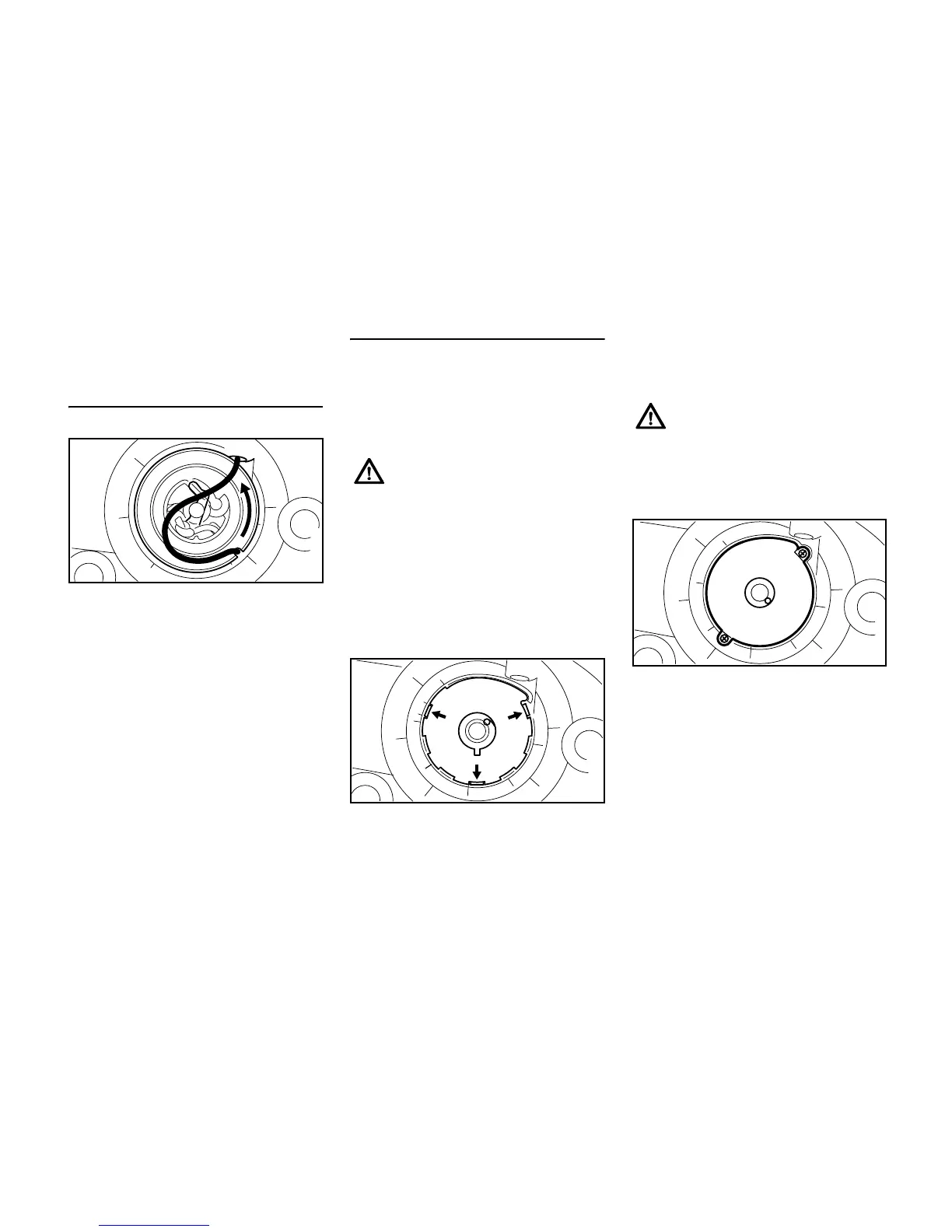

Tensioning the rewind spring
N Make a loop in the unwound starter
rope and use it to turn the rope rotor
six full revolutions in the direction of
the arrow
N Hold the rope rotor tight – pull out
the twisted rope and untangle it
N Release the rope rotor
N Slowly let go of the rope so that it
winds on to the rotor. The starter
grip must be drawn firmly into the
rope guide bush. If it tips sideways:
increase the spring tension by
another turn
N It must be possible to turn the rope
rotor on another half-turn when the
rope has been drawn out
completely. If not, the spring has
been tensioned too tightly and may
break! Remove one turn of the rope
from the rotor
N Refit the starter cover
Replacing a broken rewind spring
Version without a spring housing
fastened with screws
N Remove the rope rotor as described
for “Replace torn starter rope”
N Remove the spring housing and
spring parts
N Apply a few drops of resin-free oil to
the new replacement spring
N Fit a new spring housing with the
bottom upwards at the recesses
(arrows)
N Press the spring housing into the
starter cover
N Refit the rope rotor
N Tensioning the rewind spring
N Refit the starter cover
N If the spring has popped out of the
spring housing: Refit it, working
from the outside inwards
Version with a spring housing
fastened with screws
N Remove the rope rotor as described
for “Replace torn starter rope”
N Remove screws (7)
N Remove the spring housing and
spring parts
N Apply a few drops of resin-free oil to
the new replacement spring
N Fit a new spring housing with the
bottom upwards.
N Screw in and tighten the screws (7)
N Refit the rope rotor
N Tensioning the rewind spring
N Refit the starter cover
N If the spring has popped out of the
spring housing: Refit it, working
from the outside inwards
370BA035 KN
The broken pieces of spring may
still be under tension and can
spring apart unexpectedly on
removal from the housing – risk
of injury! Wear a face shield and
protective gloves.
370BA036 KN
The broken pieces of spring may
still be under tension and can
spring apart unexpectedly on
removal from the housing – risk
of injury! Wear a face shield and
protective gloves.
370BA067 KN
7
7
