Stihl Brushcutter - Mounting the Deflector; Fitting skirt and blade

O
n
l
i
n
e
v
e
r
s
i
o
n
-
n
o
t
f
o
r
r
e
p
r
i
n
t

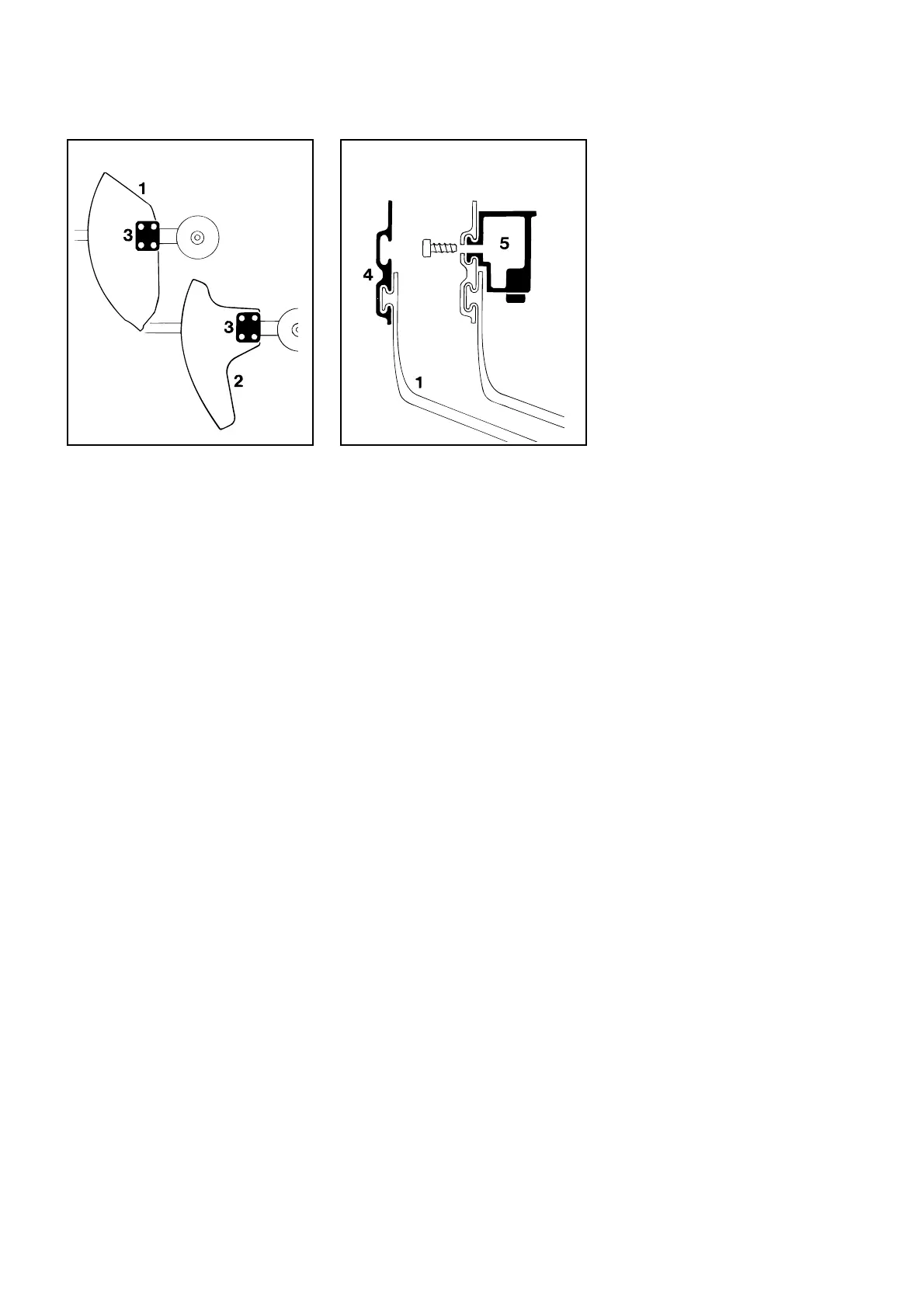

0RXQWLQJWKHGHIOHFWRU
•
Place either deflector  for all
cutting tools
or
deflector  for mowing heads
on the gearhead flange.
•
Fit the plate  and line it up.
•
Insert M 5 x 18 screws and tighten
down securely.
)LWWLQJVNLUWDQGEODGH
•
Slide the ORZHU guide slot of the
skirt  over the deflector  -
it must snap into position.
•
Push blade  into the XSSHU guide
on the skirt and line it up with the
first hole.
•
Fit the screw and tighten it down
firmly.
0RXQWLQJWKH'HIOHFWRU
3
57BA007 KN
3
57BA008 KN

