Pull off the terminal.
•
Pull overload circuit breaker out
of the motor housing.
Install in the reverse sequence.
•
Use new wire end ferrule to join
the wire from the switch and
capacitor and push into the retai-
ners in the motor housing.
- Remove the handle housing -
see 4.1.
•

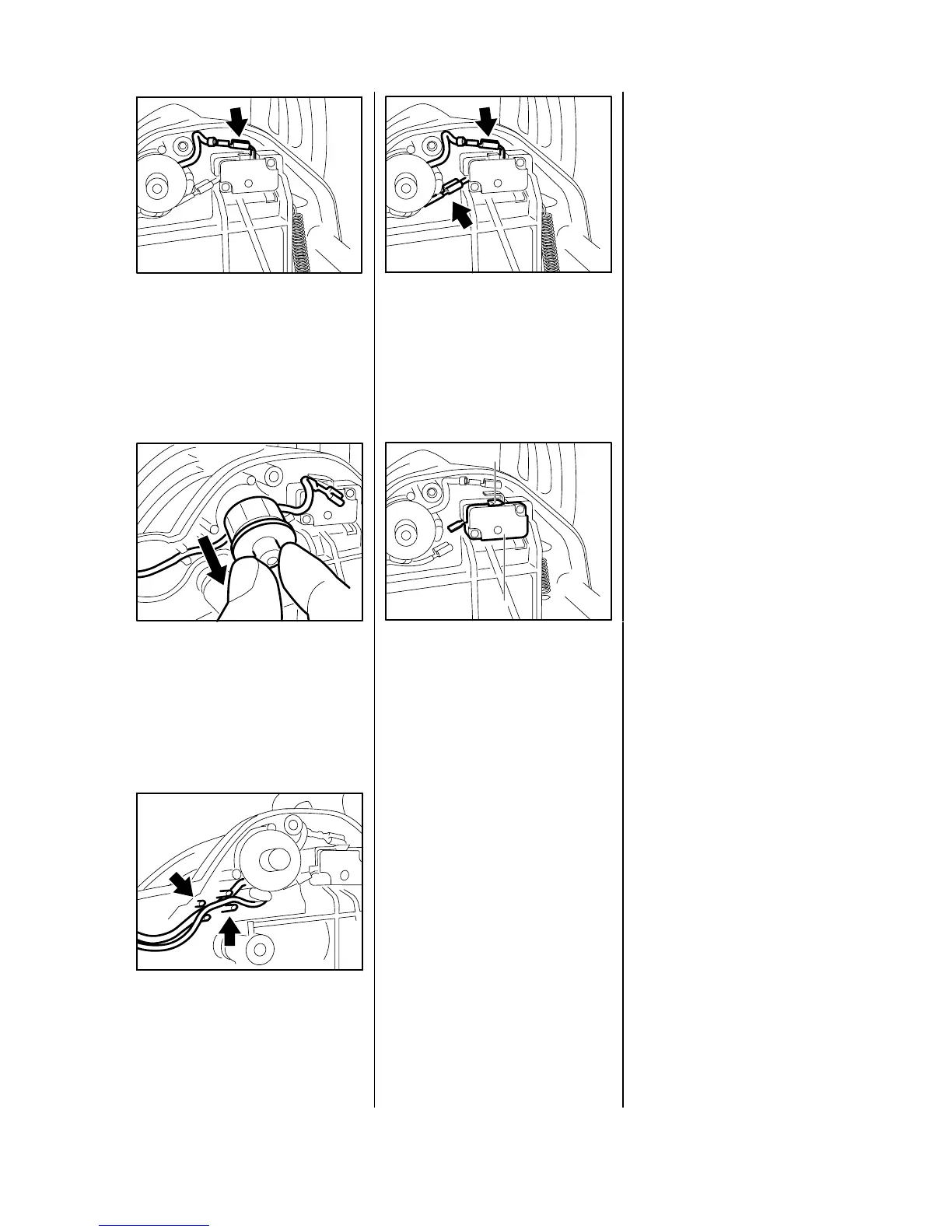

Remove the wires from the
brake switch terminals.
•
Lift snap hook (1) a little and
then pull out the chain brake
switch (2).
Install in the reverse sequence.
100RA022
VA
100RA025
VA
1
2
100RA021
VA
100RA023
VA
100RA024
VA
4.5 Chain Brake Switch
