2 Guide to Using this Manual
2.1 Applicable Documents
► In addition to this instruction manual, read,
understand and keep the following documents:
–
Instruction manual for the STIHL machine
Local safety regulations apply.
2.2 Warning Notices in Text
DANGER
■ This notice refers to risks which result in seri‐
ous or fatal injury.
► Serious or fatal injuries can be avoided by
taking the precautions mentioned.
WARNING
■ This notice refers to risks which can result in
serious or fatal injury.
► Serious or fatal injuries can be avoided by
taking the precautions mentioned.
NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3 Symbols in the Text
This symbol indicates a chapter in this
instruction manual.

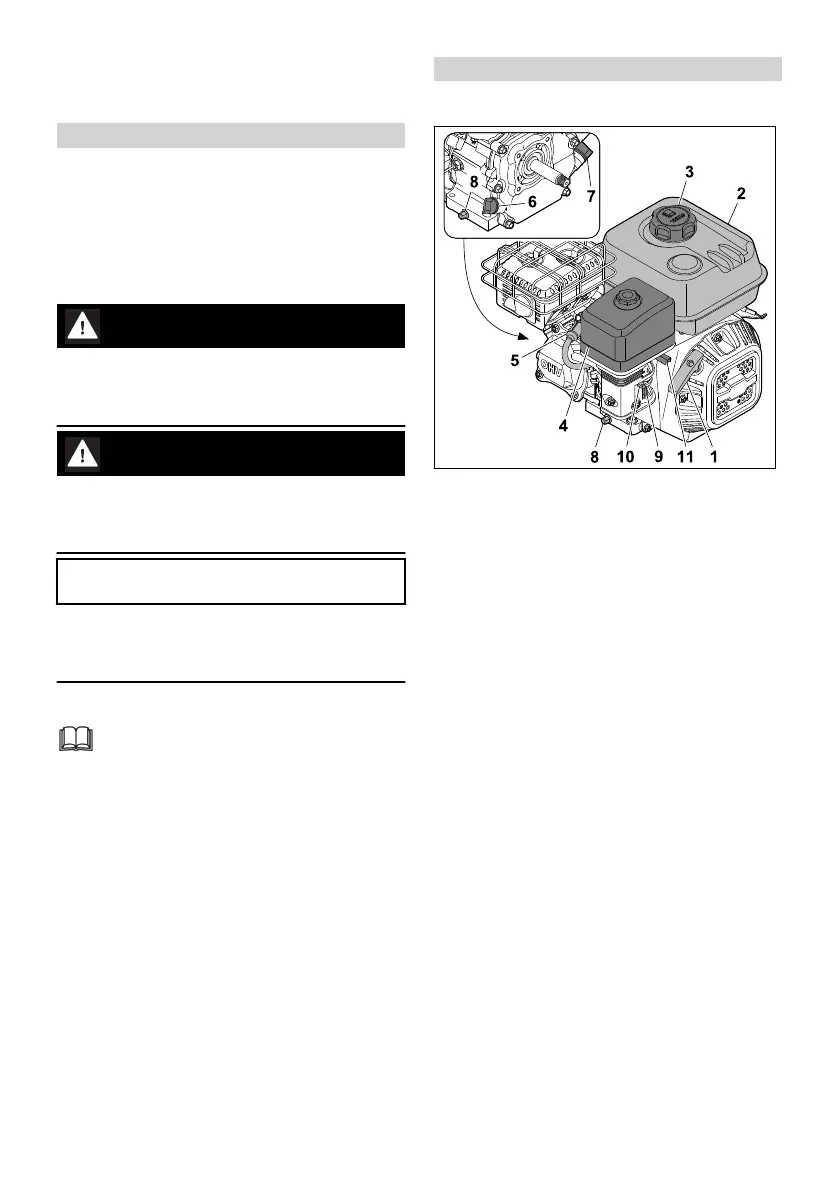

3 Overview
3.1 Engine
1 Starter handle
The starter handle is used to start the engine.
2 Fuel tank
The fuel tank holds the fuel.
3 Fuel tank cap
The fuel tank cap seals the opening for add‐
ing petrol.
4 Air filter
The air filter filters the air taken in by the
engine.
5 Spark plug socket
The spark plug socket connects the ignition
lead to the spark plug.
6 Front oil dipstick
The oil dipstick measures the engine oil level.
7 Rear oil dipstick
The oil dipstick measures the engine oil level.
8 Screw plug
The screw plug seals the opening for draining
the engine oil.
9 Fuel cock
The fuel cock shuts off the fuel feed.
10 Choke lever
The choke lever enables controlled limitation
of the inflowing air.
11 Throttle lever
The throttle lever is used to adjust the engine
speed.
