Stihl FC 90 User Manual

FC 90
English
14

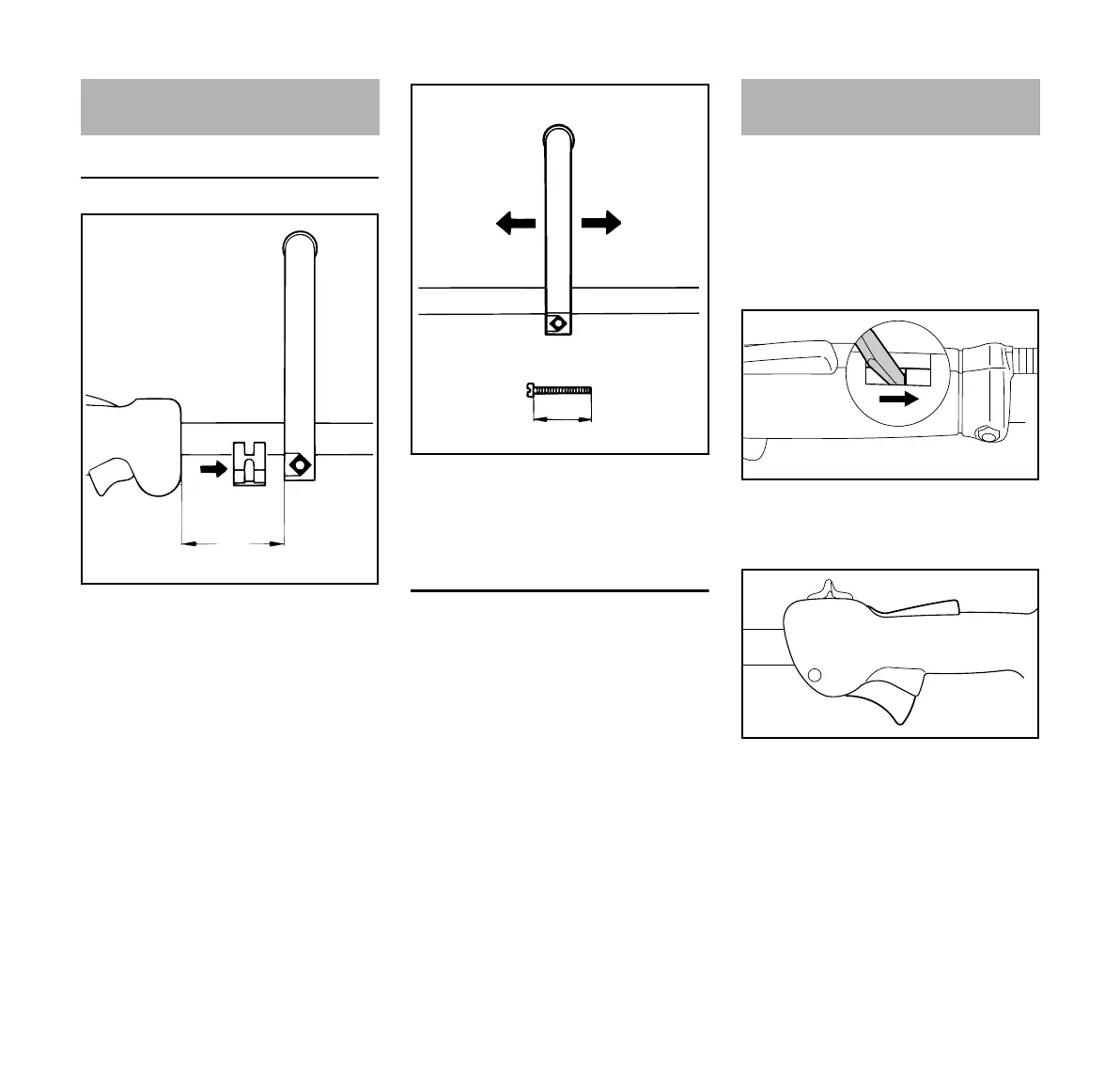

Mounting the Loop Handle
N Position the loop handle (1) on the
drive tube, about 8 in (20 cm) (A)
forward of the control handle (2).
N Place the clamp (3) against the
drive tube and push it into the loop
handle.
N Fit the square nut (4) in the loop
handle, insert the clamp screw (5)
from the other side and tighten it
down firmly.
Adjusting the loop handle
N Line up the loop handle and move it
to the most comfortable position.
N Loosen the screw (5).
N Move the loop handle along the
drive tube as required – tighten
down the screw firmly.
A properly adjusted throttle cable is the
precondition for correct operation in the
full throttle, starting throttle and idle
positions.
N Adjust the throttle cable only when
the unit is completely and properly
assembled.
N Use a suitable tool to push the slide
to the end of the slot (see
illustration).
N Press down the throttle trigger
lockout (1) and squeeze the throttle
trigger (2) (full throttle) – this sets
the throttle cable correctly.
Mounting the Loop Handle
3
355BA030 KN
1
2
A
343BA023 KN
5
4
50 mm
( 2" )
Adjusting the Throttle
Cable
002BA163 KN
2
1
002BA161 KN
