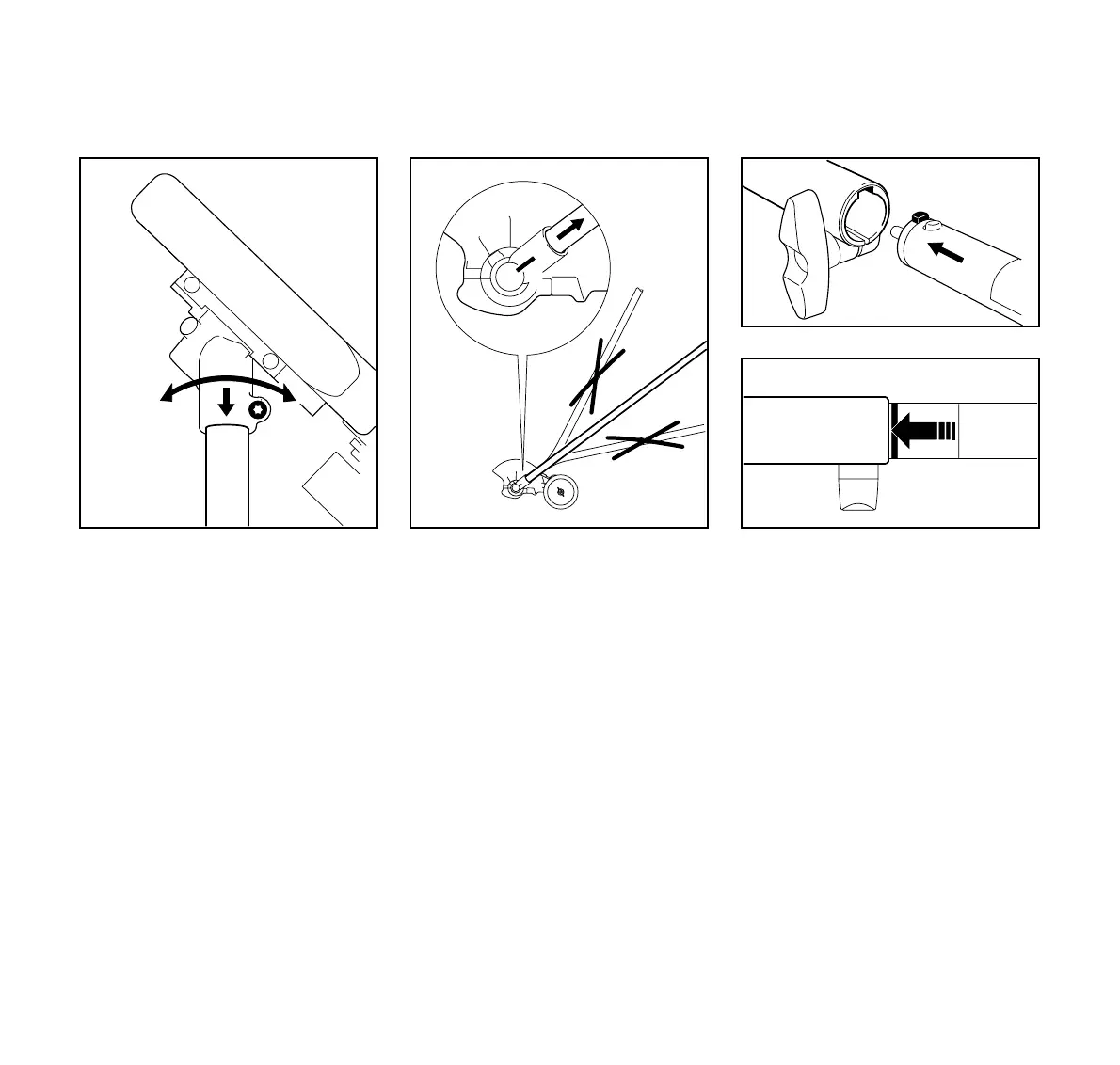

Connecting stub shaft to gearbox
: Remove the protective caps from
the ends of the tube and put them in
a safe place.
: Loosen the clamp screw (1).
: Push curved end of the drive tube
(3) into the gearbox (2), turning it
back and forth at the same time.
: Push the drive tube fully home as far
as stop.
: Insert the clamp screw as far as
stop, but do not tighten down yet.
: Position the gearbox (2) on the drive
tube so that the rib (4) is exactly in
line with the drive tube.
: Tighten the clamp screw firmly.
Mounting
: Push drive tube (1) of attachment
into the coupling sleeve (2) so that
the lug (3) engages the slot in the
cupling sleeve.
: The red line (4) and arrow point
must be flush with the end of the
coupling sleeve.
: Tighten the wing screw (5) firmly.
Mounting the Gearbox
400BA001 KN
1
3
2
4
400BA002 KN
2
Mounting Power Tool
Attachment
002BA153 KN
3
2
5
1
4
002BA154 KN
