14
english / USA
FCB
Removing

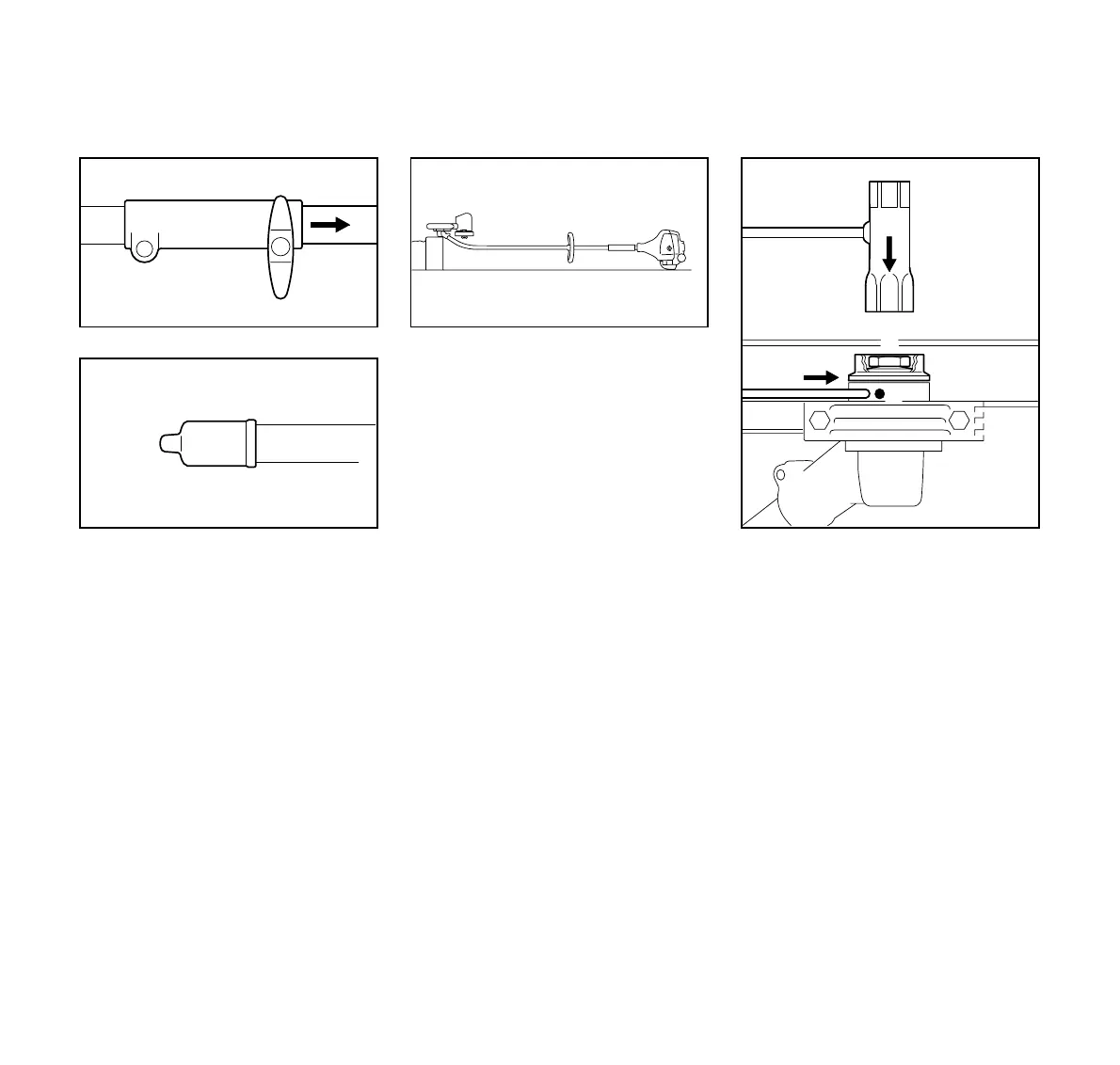

: Loosen the wing screw (5) and pull
the lower part of the drive tube (1)
out of the coupling sleeve (2).
: Fit the protective cap (from power
tool attachment) over the end of the
tube.
: Place the power edger on a
suitable support so that the blade
mounting (1) faces upwards.
: Insert stop pin* or offset
screwdriver* (2) as far as possible in
the bore (3) – push lightly and rotate
it back and forth together with the
thrust washer (4) until the drive shaft
is blocked.
: Fit combination wrench (5) on the
nut (6).
: Loosen and remove the nut
clockwise (left-hand thread).
: Remove the thrust washer.
* see "Guide to Using this Manual"
1
002BA155 KN
5
2
002BA085 KN
Fitting the Edger Blade
241BA006 KN
1
6
3
2
4
5
241BA011 KN
