60 Series 4180 Powerhead

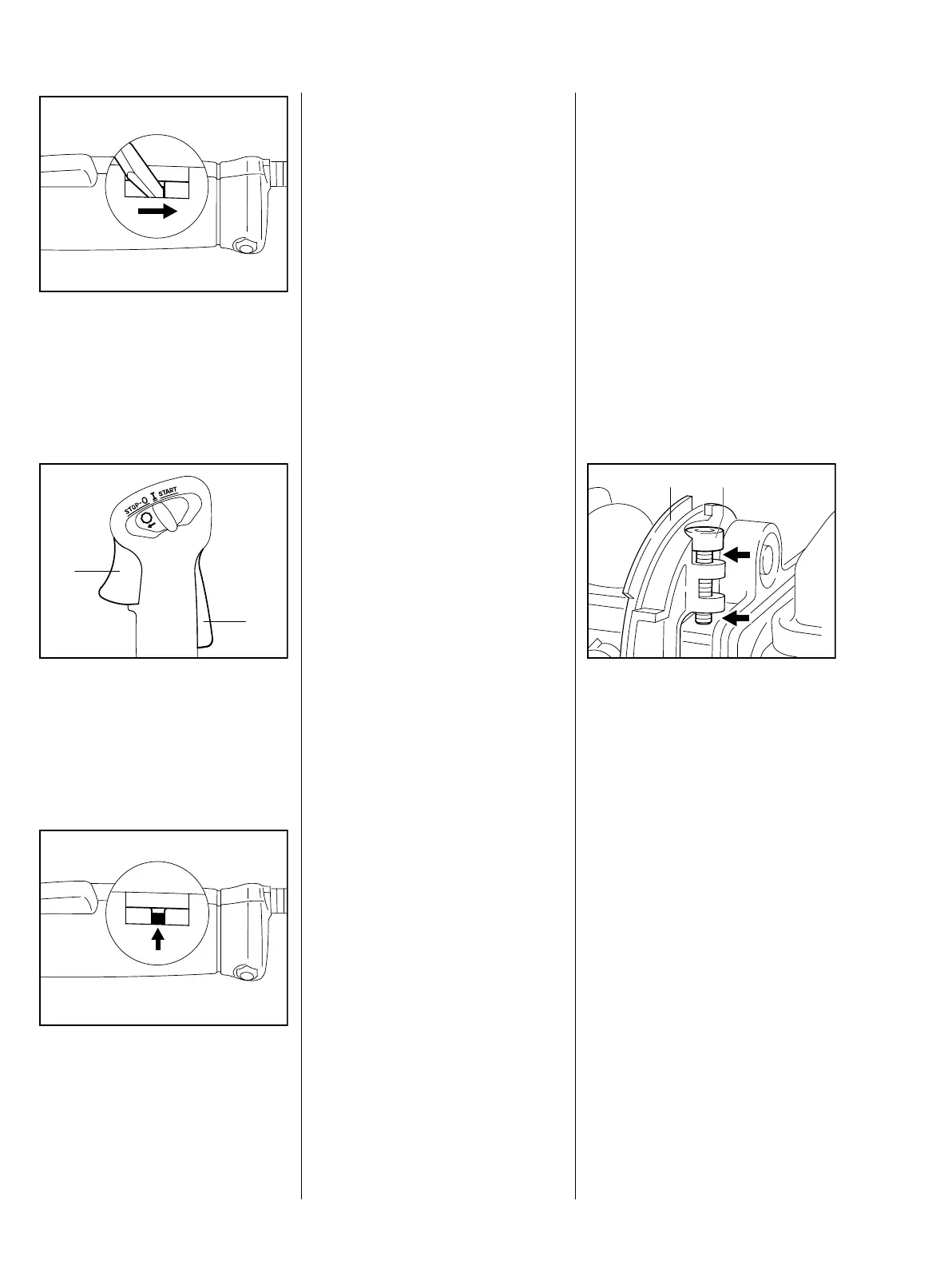

: Use a screwdriver to push the
slide to the bottom end of the slot.
: Push down the lockout lever (1)
and squeeze the throttle trigger
(2) as far as stop (full throttle
position).
Throttle cable tension is adjusted
automatically in this process.
: The slide (arrow) moves away
from the bottom of the slot.
– Check the adjustment, b 9.3.3
If the lever does not butt against the
stop:
– Readjust tensioner until the lever
butts against the respective
stops.
– Adjust the throttle cable and
check the adjustment again.
– Fit the shroud.
– Remove the shroud, b 5.7
– Adjust idle speed screw correctly.
: Screw the tensioning screw (1)
into the tensioner (2) until equal
lengths of thread (arrows) are
visible above and below the
tensioner.
– Check the adjustment, b 9.3.3
If the lever does not butt against the
stop:
: Adjust the tensioning screw (1)
on the tensioner (2) and check
the adjustment again.
– Repeat this procedure until the
lever butts against the respective
stops when the throttle trigger is
in the idle and full throttle
positions.
– Fit the shroud.
9.3.2 Control Handle without
Slide
