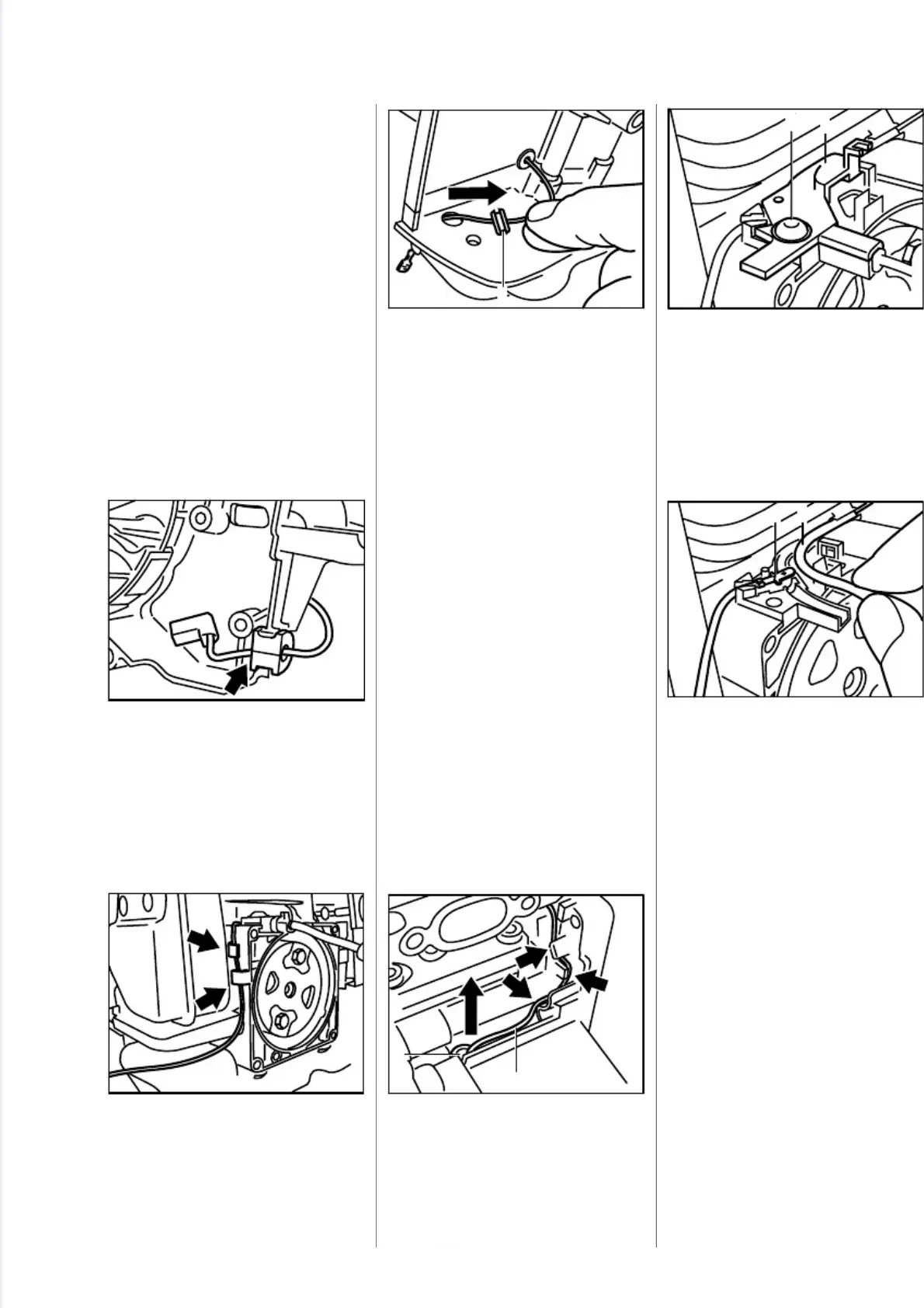

- Remove theignitionmodule -
see 5.3.2 and 5.3.3.
-Removeclutch housing -
see 9.1 and 11.2.
FS 120...350, FR 350
•
Pull short circuit wire out of
grommet.
•
Remove short circuit wire from
retainers.
FS 400/450, FR 450
- Remove the fuel tank -see 8.5.
- Remove the muffler -see 4.1.
•
Push out the outer grommet (1).
•
Pull short circuit wire out of
housing bore and remove
grommet.
•
Push out the grommet (1).
•
Pull short circuit wire (2) out of
housing bore, remove it from
the retainers and pull off the
grommet.
All models
•
Take out the screw (1).
•
Remove top of cable guide (2).
•
Lift the throttle cable (1) a little.
•
Remove short circuit wire
connector (2) from base of cable
guide.
Assemble in the reverse
sequence.
- Check and adjust throttle
cable-see 7.5.2.
5.5 Short Circuit Wire
2
5
0
R
A
1
1
3
1
V
A
2
5
0
R
A
1
1
5
V
A
1 2
2
5
0
R
A
1
1
4
1
2
V
A
2
5
0
R
A
1
1
1
V
A
2
5
0
R
A
1
1
6
2 1
V
A
2
5
0
R
A
1
1
2
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 29
