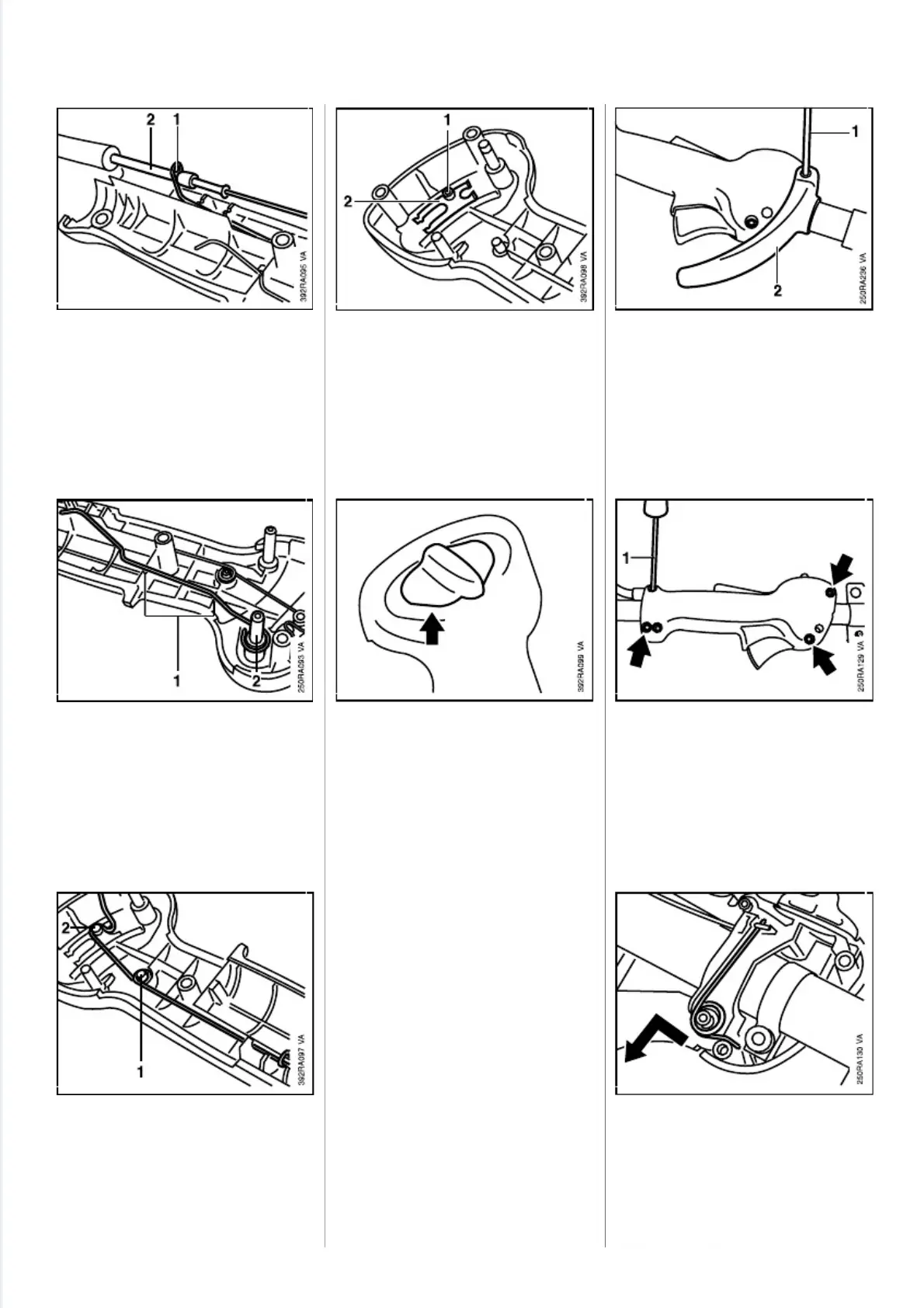

- Remove the throttle trigger - see
7.1.
•
Lift contact spring (1) a little and
remove the throttle cable (2).
•
Remove spring from seats (1)
and peg (2).
•
Remove contact spring from peg
(1) and collar screw (2).
•
Take out slide control’s collar
screw (1).
•
Remove detent spring (2).
•
Pull slide control out of handle
molding.
Assemble in the reverse
sequence.
- Engage contact spring correctly
in groove of collar screw.
FR 350/450
•
Use screwdriver (1) 5910 890
2301 to remove screw.
•
Push guard (2) forward.
All models
Warning:To avoid risk of electric
shock, do not start the unit while
the control handle is open.
•
Use screwdriver (1) 5910 890
2301 to take out the screws.
- Remove handle molding.
•
Remove torsion spring.
7.2 Contact Springs/Detent Spring in Control Handle 7.3 Throttle Trigger/Interlock
(Bike Handle) Lever (Loop Handle)
34 FS 120, 200, 300, 350, 400, 450, FR 350, 450
