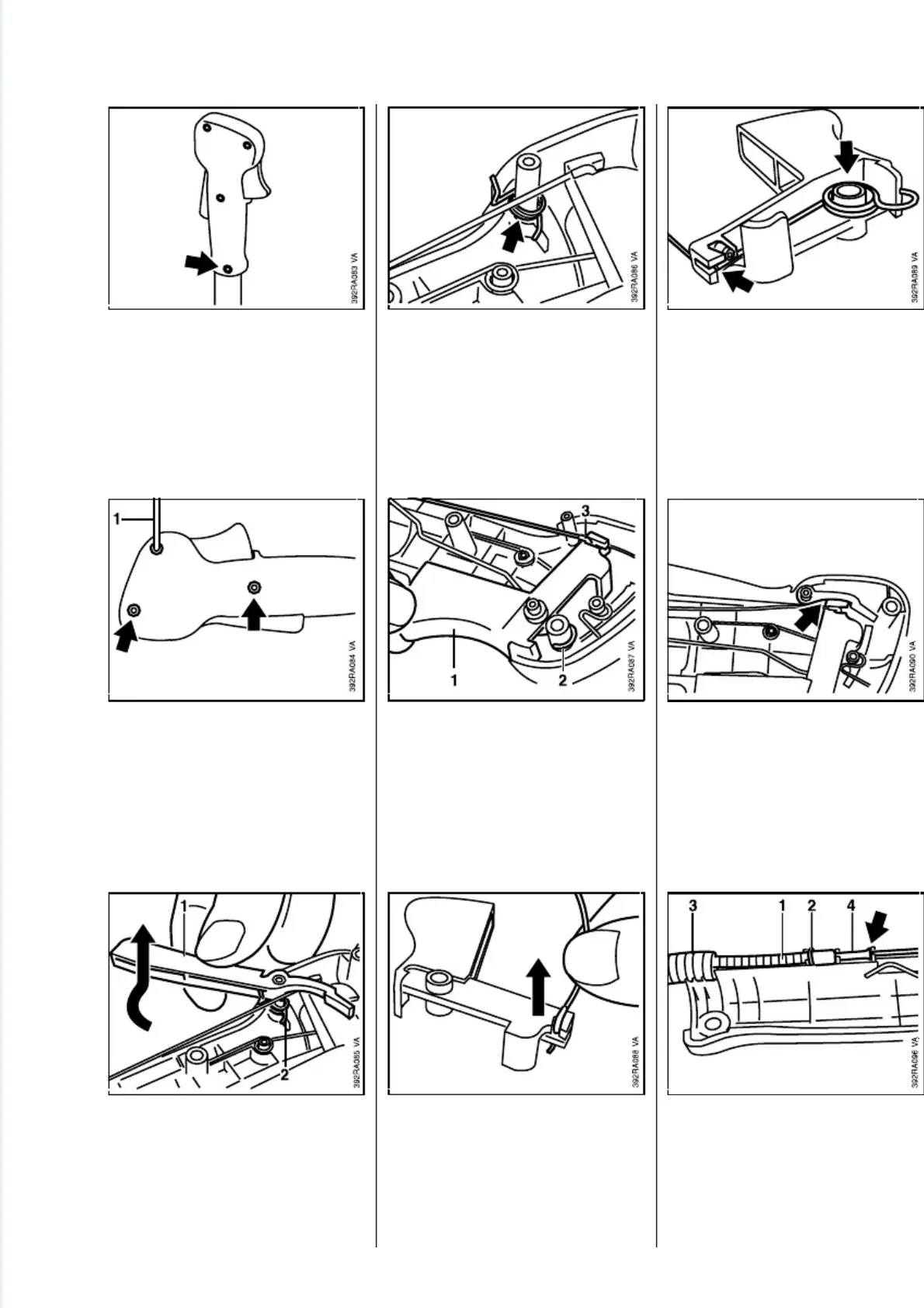

Take out screw and washer.
- Pull off the control handle.
Warning:To avoid risk of electric
shock, do not start the unit while
the control handle is open.
•
Use screwdriver (1) 5910 890
2301 to take out the screws.
- Separate the two halves of the
handle.
•
Lift the interlock lever (1) slightly
and turn it to one side until the
torsion spring (2) is relaxed.
•
Pull the interlock lever off the
peg.
•
Remove the torsion spring.
•
Take the throttle trigger (1) with
torsion spring (2) and throttle
cable (3) off the peg.
•
Disconnect throttle cable from
trigger.
Assemble in the reverse
sequence.
•
Attach the throttle cable, then
position torsion spring as shown
and push its long arm into the
slot.
•
The interlock lever must be
behind the throttle trigger.
•
Check correct positions of
throttle cable (1), contact spring
(2), protective tube (3) and
insulator (4).
7. THROTTLE CONTROL
7.1 Throttle Trigger/Interlock Lever (Bike Handle)
FS 120, 200, 300, 350, 400, 450, FR 350, 450 33

Stihl FS 120 Specifications

General

Power source	Gasoline
Type	Brush cutter
Cordless	Yes
Head type	Nylon line
Handle type	U-type handle
Engine power	1.8 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	110 dB
Fuel tank capacity	0.64 L
Vibration emission	4.9 m/s²
Engine displacement	30.8 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1760 mm
Weight	6300 g
