Remove the gasket.
Reassemble in the reverse
sequence.
- Use a new gasket.
- Tighten down nuts on filter
housing to 3.5 Nm (2.6 lbf.ft).
- Tighten down screw on extended
throttle cable to 6.0 Nm
(4.4 lbf.ft).

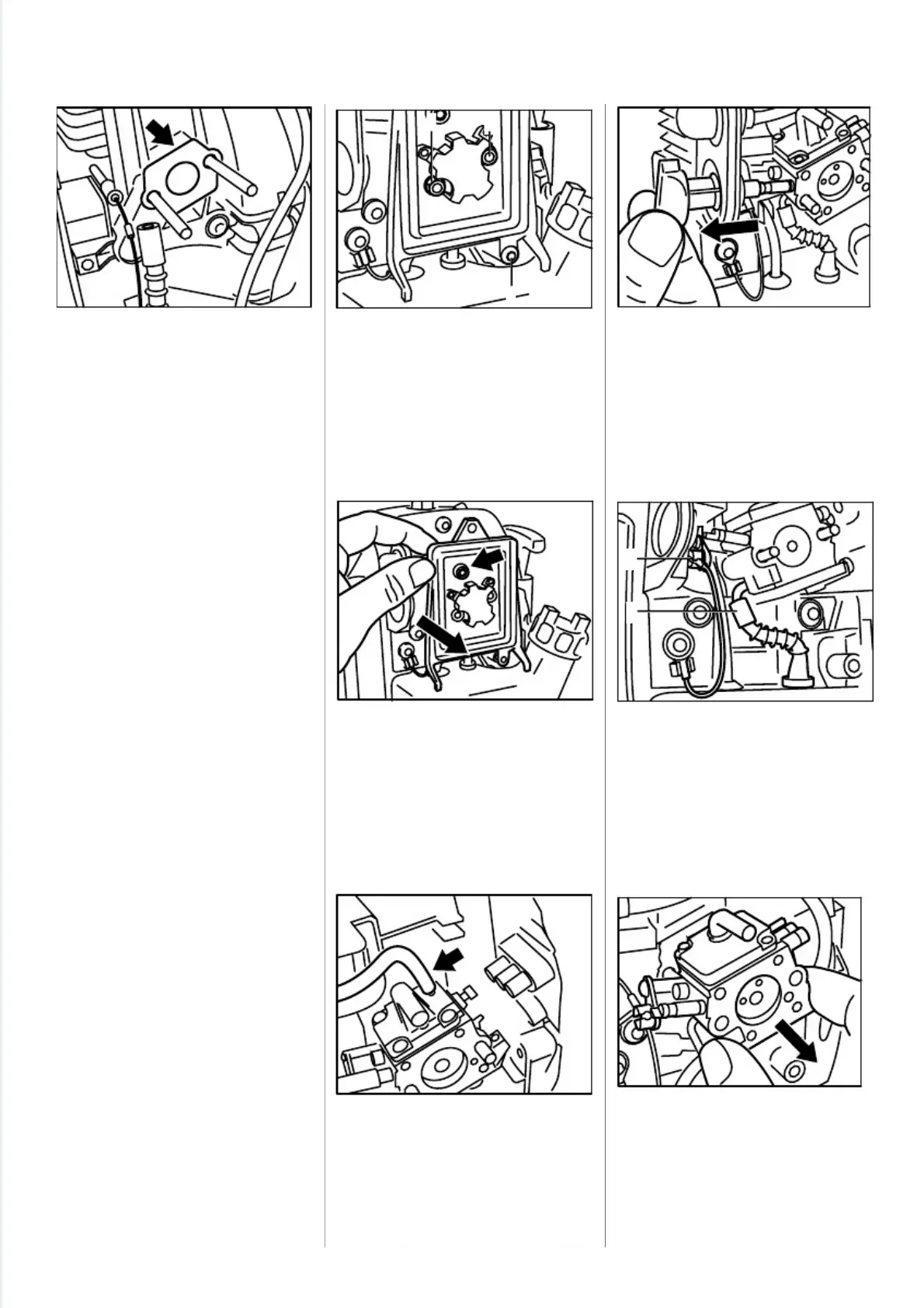

FS 400/450, FR 450
- Remove the shroud -see 4.1.
•
Take out screw (1).
•
Unscrew the nuts (2).
•
Remove the filter housing and
pull stub out of grommet at the
same time.
•
Disconnect fuel hose from
connector.
•
Pry choke knob out of carburetor
housing and pull it off the choke
shaft.
•
Disconnect throttle cable nipple
(1) from slotted pin (2) on throttle
lever.
•
Disconnect fuel hose (3)
from carburetor.
•
Pull carburetor off the studs.
8.2.2 Removing and Installing
2
5
0
R
A
1
6
6
V
A
2
5
0
R
A
1
6
5
V
A
2
5
0
R
A
1
6
3
1
2
2
V
A
2
5
0
R
A
1
6
4
V
A
2
5
0
R
A
1
6
7
3
1
2
V
A
2
5
0
R
A
0
1
3
V
A
2
5
0
R
A
1
6
8
V
A
40 FS 120, 200, 300, 350, 400, 450, FR 350, 450
