Stihl FS 130 User Manual

42
English / USA
FS 130, FS 130 R
The spark arresting screen is an option
that is not fitted in all machines.
: If the engine is low on power, check
the spark arresting screen in the
muffler.
: Wait for muffler to cool down.
: Move slide control to STOP-O.
: Remove the screw (1).
: Remove the screws (2).
: Lift away the shroud (3).
: Remove the screw (4).
: Lift spark arresting screen (5) and
pull it out.
: Clean spark arresting screen if
necessary – if screen is damaged or
coked up, fit a new one.
: Refit the spark arresting screen.
: Insert screw and tighten down.
: Fit the shroud.
Wrong fuel mix (too much engine oil in
the gasoline), a dirty air filter and
unfavorable running conditions (mostly
at part throttle etc.) affect the condition of
the spark plug. These factors cause
deposits to form on the insulator nose
which may result in trouble in operation.

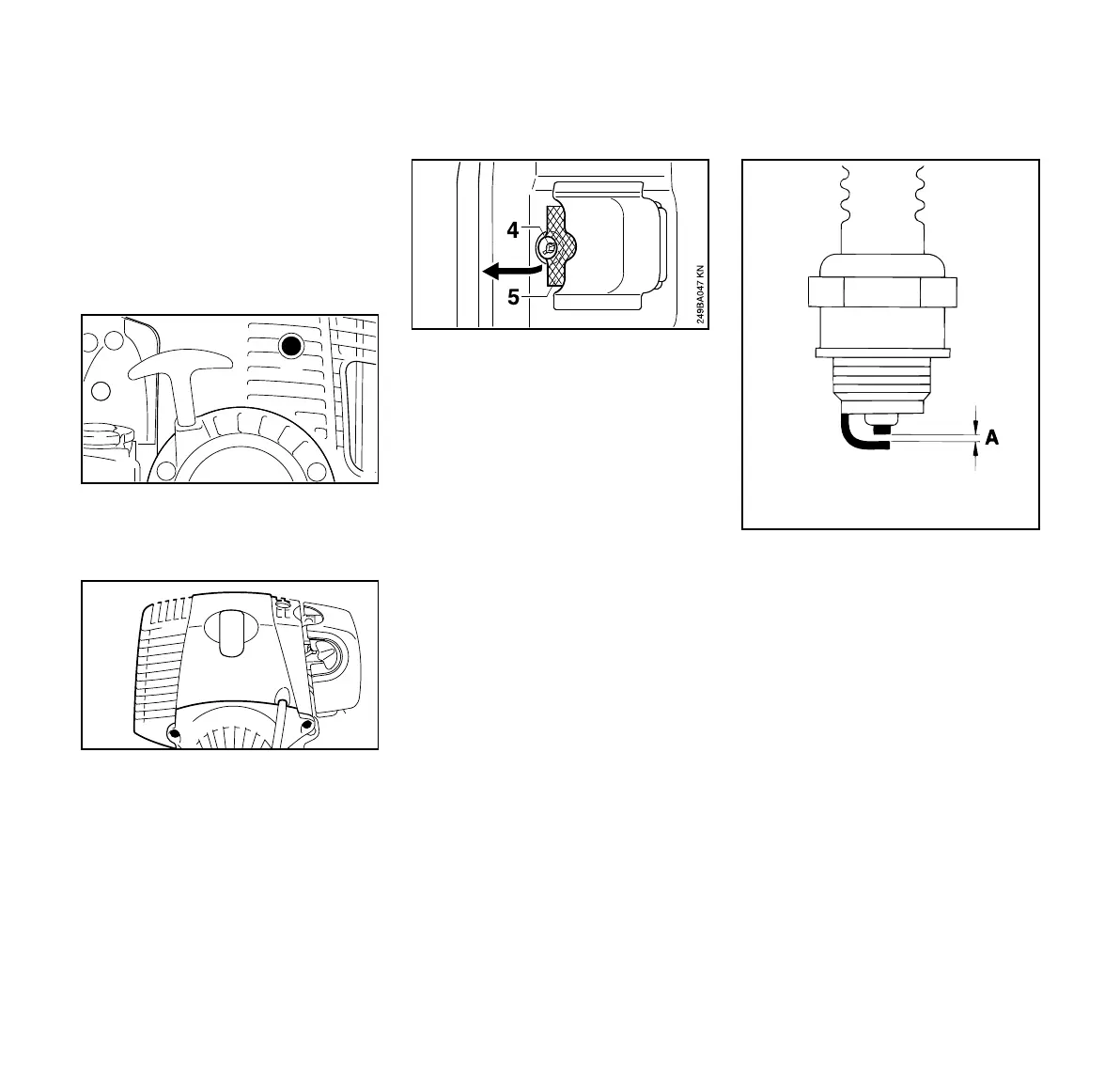

Spark Arresting Screen in
Muffler
249BA059 KN
1
2
3
2
249BA060 KN
Checking the Spark Plug
000BA002 KN

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
