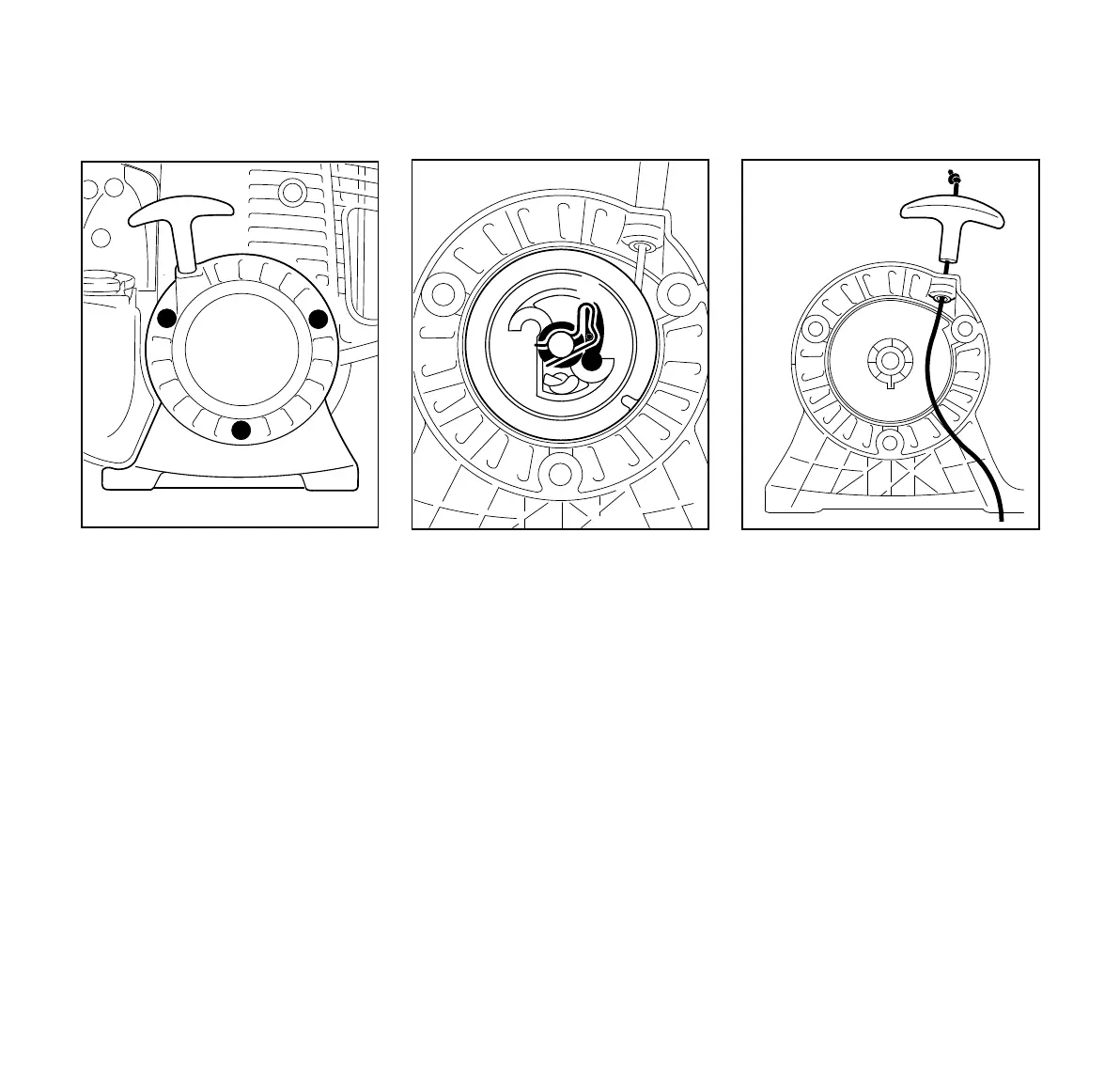

Replacing the starter rope
: Move slide control in direction of
c – arrow to STOP-O.
: Take out the screws (1).
: Lift the starter cover (2) off the
housing.
: Remove the spring clip (3).
: Remove the rope rotor with
washer (4) and pawl (5).
: Remove remaining rope from the
rotor and grip.
: Tie a simple overhand knot in the
new rope (see "Specifications") and
then thread it through the top of the
grip and the rope bushing (6).
Replacing Starter Rope
and Rewind Spring
1
1
249BA061 KN
2
1
4
3
5
249BA013 KN
249BA014 KN
6

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
