46
English / USA
FS 130, FS 130 R

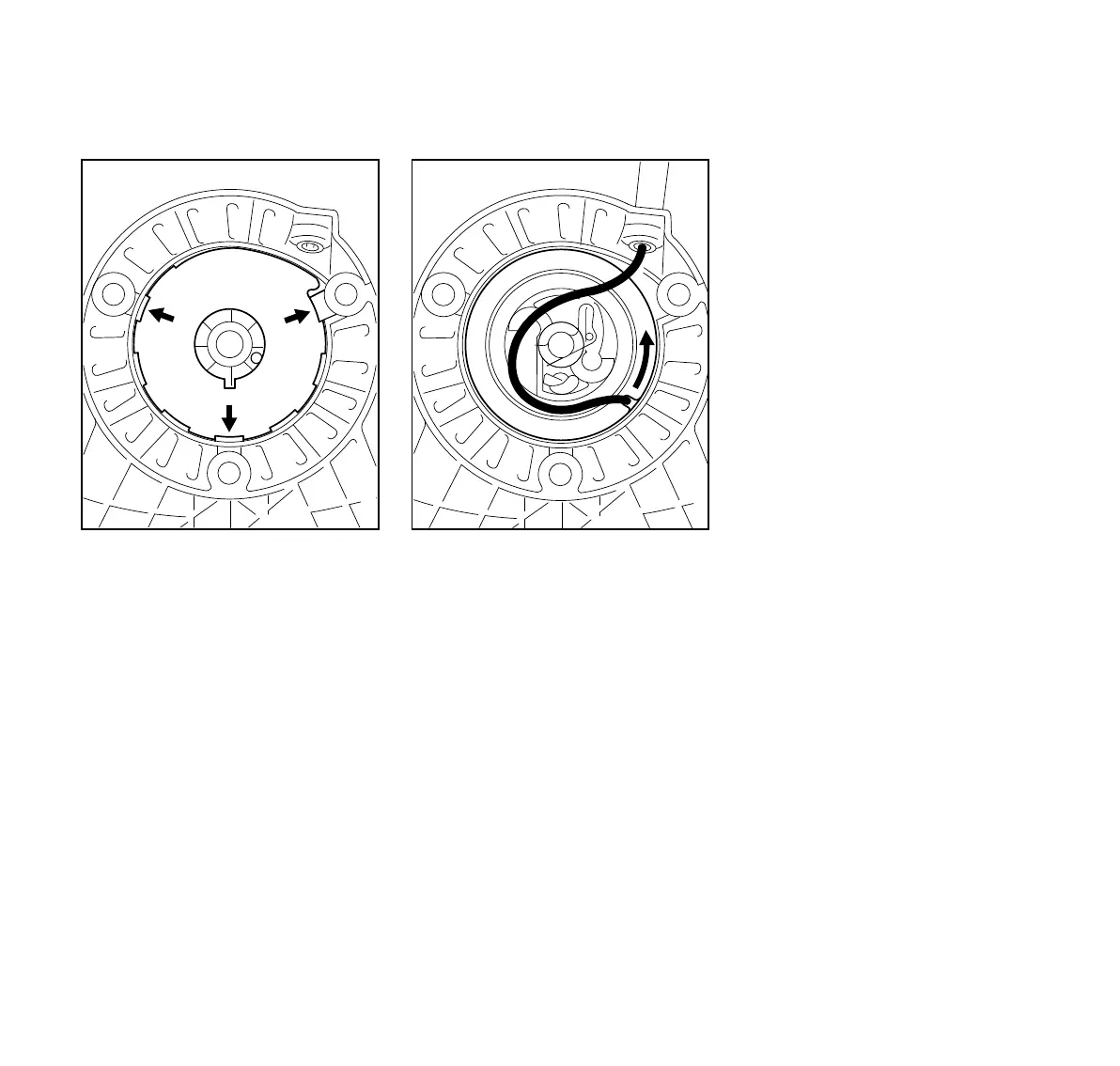

: Place the new spring housing on the
recesses (arrows) – bottom plate
must face up.
: Push the spring housing into the
starter cover.
: Install the rope rotor as described
under "Tensioning the rewind
spring".
: If the spring pops out of the housing
during installation: Refit it in the
counterclockwise direction, starting
outside and working inward.
Tensioning the rewind spring
: Make a loop in the unwound
starter rope and use it to turn
the rope rotor six full revolutions in
the direction of the arrow.
: Hold the rotor steady – pull out and
straighten the twisted rope.
: Release the rope rotor.
: Let go of rope slowly so that it winds
onto the rotor. The starter grip must
locate firmly in the rope guide
bushing. If the grip droops to one
side: Increase spring tension by
adding one more turn.
: When the starter rope is fully
extended it must still be possible to
rotate the rotor another half turn. If
this is not the case, the spring is
overtensioned and could break.
Take one turn of rope off the rotor in
such a case.
: Fit the starter cover on the housing.
: Tighten down the screws firmly.
