Stihl FS 130 User Manual

51FS 130, FS 130 R
English / USA

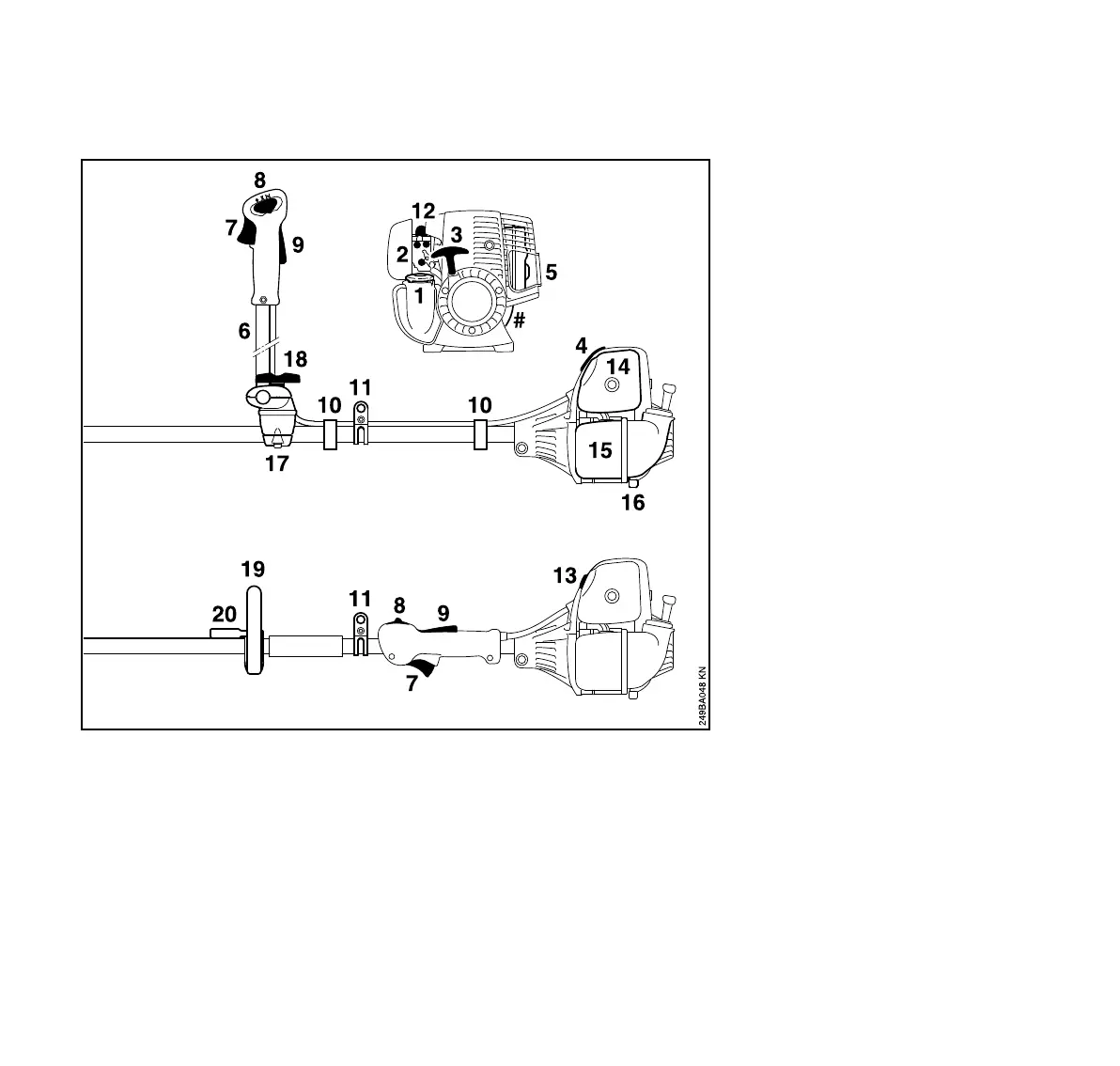

1 Fuel Filler Cap
2 Carburetor Adjusting Screws
3 Starter Grip
4 Spark Plug Boot
5 Muffler
(with spark arresting screen - not in
all versions, market-specific)
6 Bike Handle
7 Throttle Trigger
8 Slide Control
9 Throttle Trigger Interlock
10 Throttle Cable Retainer
11 Carrying Ring
12 Fuel Pump
13 Choke Knob
14 Air Filter Cover
15 Fuel Tank
16 Machine Support
17 Handle Support
18 Wing Screw
19 Loop Handle
20 Barrier Bar
# Serial number
Parts and Controls
Part 1

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
