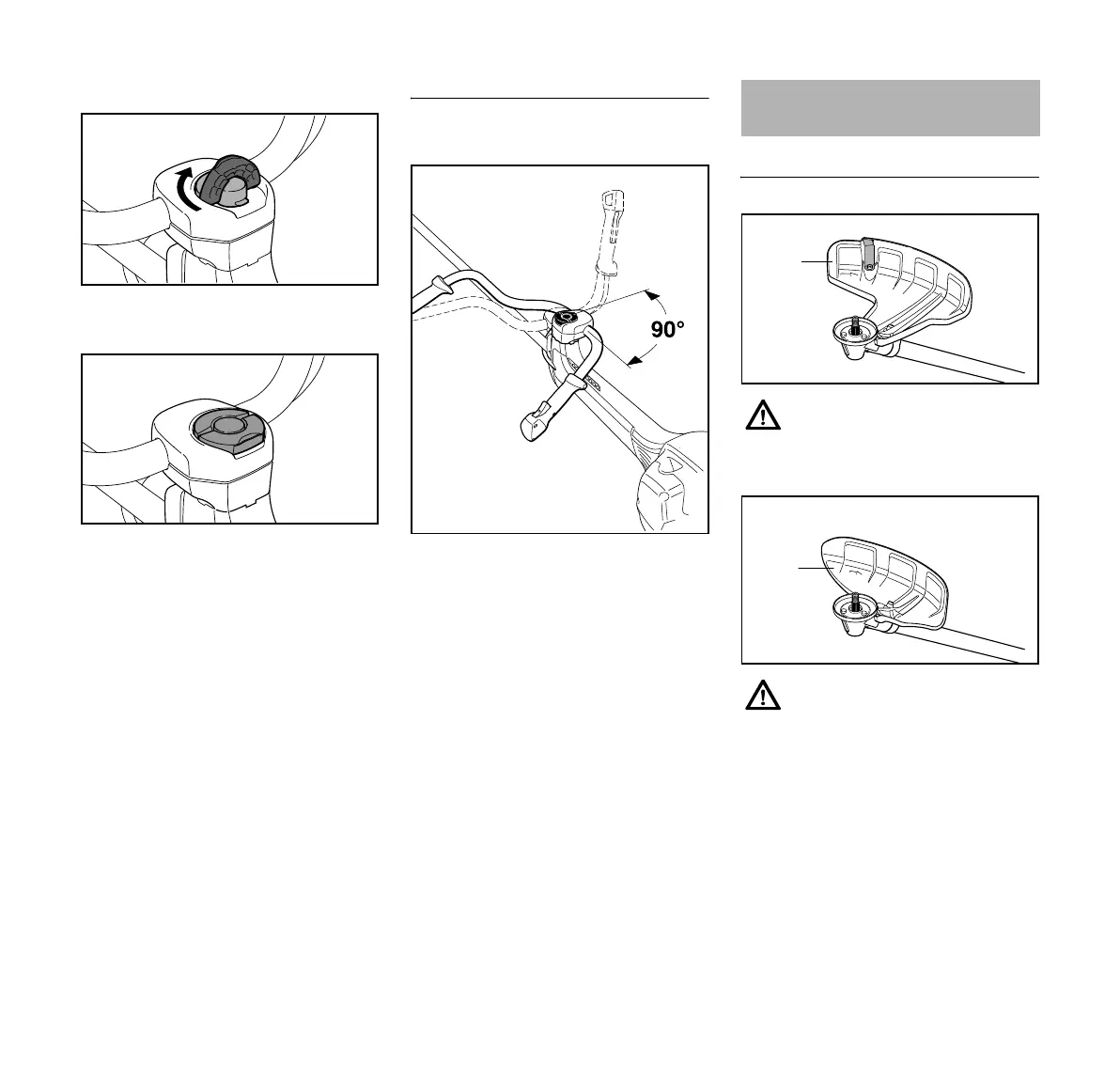

Closing the wing screw
N Turn the wing screw clockwise as
far as stop.
N Fold the grip of the wing screw down
so that it is flush.
Swiveling the handlebar
Transport position
N Loosen the wing screw (7) and
unscrew it until the handlebar (2)
can be turned clockwise.
N Turn the handlebar 90° and then
swing the handles down.
N Tighten down the wing screw (7)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar
counterclockwise.
Using the proper deflector
6BA005 KN
6BA006 KN
7
6BA008 KN
2
Mounting the Deflector
Deflector (1) is approved only for
mowing heads, thus deflector (1)
must be attached before attaching
a mowing head.
Deflector (2) is approved only for
grass cutting blades, thus
deflector (2) must be attached
before attaching a grass cutting
blade.
1
002BA401 KN
2
002BA402 KN
